Features

Specifications

Material: Galvanized Sheet Metal

Output Power: >1500W

Design Style: New China-Chic

Material: Galvanized Metal Or Stainless Steel

Application: Bus,truck,heavy Duty Vehicles

Max Vehicle Suitable: W 2600 H 4200mm

Type: Channel,automatic

Color: Blue

Highlight:

Galvanized Bus And Truck Washing Machine

Automatic Bus And Truck Washing Machine

Height 4200mm Bus Wash Equipment

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: wintai

Model Number: nm

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000 Set/Sets per Month

Gallery

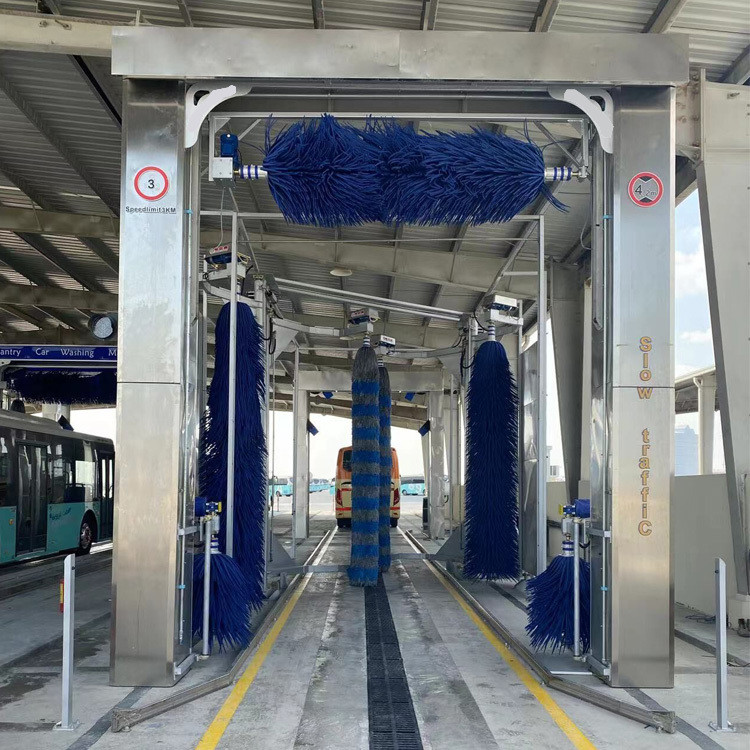

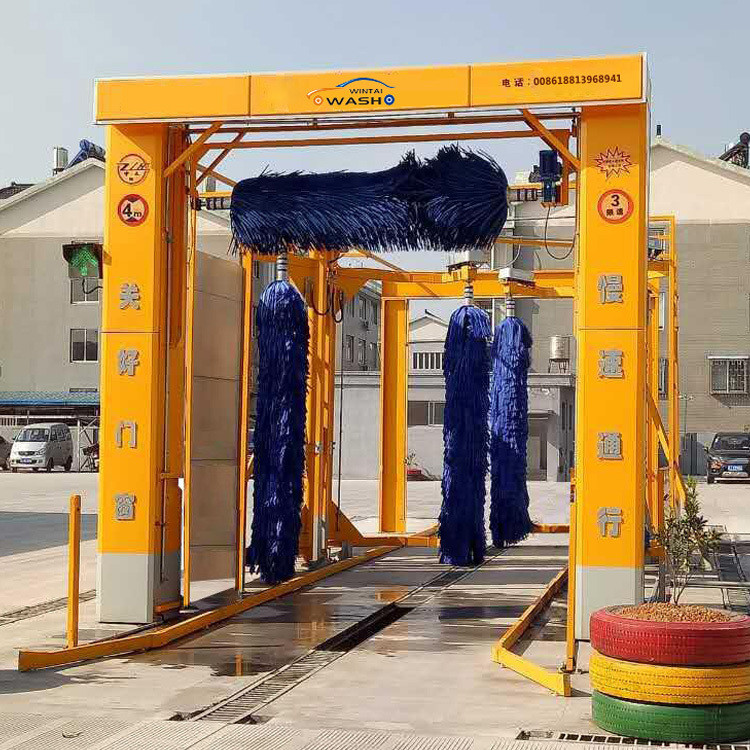

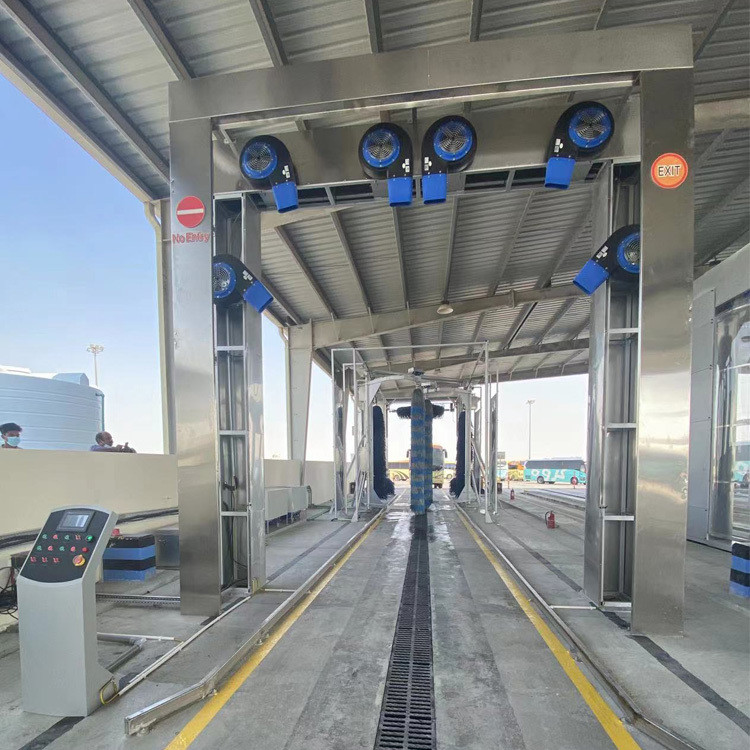

Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm

Product Description

Galvanized Metal Stainless Steel Bus Truck Washing Machine Automatic Channel Type

Product Description

Channel Type Bus/Truck Washing Machine Automatic

(1) The car washing machine adopts channel type , with computer control in the progress, can meet with vehicle models cleaning and cleaning needs which company operating (vehicle size 2600 (width) × 4200 (height) mm).
(2)The machine can perform the high efficient , quick flushing and brushing of the operating vehicles through electronic control (programmable controller) continue it's automate operating control
(3) The washing machine is equipped with the newest modular automatic control system, fault automatic detection system, can control electricity leakage and overload, vehicle rearview mirror automatic avoidance protection system.
(4)The washing machine has the function of fully automatic cleaning of two sides, the rear side, the chassis, the tires, the window glass, and can automatically avoid the rear-view mirror.

Different types available:

3 brushes :1 top, 2 sides

4 brushes: 4 sides

5 brushes : 1 top, 4 sides

7 brushes: 1 top, 4 sides,2 small for wheels

Washing speed: 1-3 minutes

Washing process
1. When the start button is pressed and the entrance signal light turn to green, the washing machine in the standby state. When the vehicle moves slowly to the cleaning area , the washing machine starts up automatically,It'll pre-spraying and rinsing, with cleaning brush to wash top of the vehicle, two sides and back of the vehicle After cleaning, there is no dust ,soil or other dirty area on the vehicle body.during the cleaning process, the washing brush will automatically avoid the rear-view mirror according to the signal detection. When the vehicle drive out from the cleaning area, the cleaning ends automatically and waiting for the next vehicle to enteri in the washiing area.

2. The side brush consists of two sets of large rocking-type side brushes. By pneumatically controlling the opening and closing of the brush arm, the appropriate air pressure generates a certain pressure, so that the rotating brush close to the car body, and it is rotated by the brush body. The brush fiber works at the surface of the car to cause rapid friction between the brush fibers and the surface of the car to remove dirt on the vehicle body .
3. The side brush can avoid the rear view mirror automatically under the signal detect. Each side brush are detected according to the signal light, it'll rest for minutes after relative time work.
4. The top brush is used for cleaning the top part of the vehicle , and automatically cleaning the vehicle top through signal
detection starting and stopping at the appropriate time.

Specification

Brand Name	wintai
Model Number	nm
Size	2600 × 4200mm
Material	galvanized sheet metal
Warranty	1 year
Output Power	>1500W
Design Style	New China-Chic
material	galvanized metal or stainless steel
Max Vehicle suitable	W 2600 H 4200mm
Type	channel,automatic
drying system	optional

Packing & Delivery

standard export package, each set is suitable for a 40HQ
