Two Side Brush 14kw Channel Type Automatic Bus Washing Machine For Thorough Cleaning

Two Groups of Side Brush 14kw Channel Type Bus Washing Machine for Thorough Cleaning

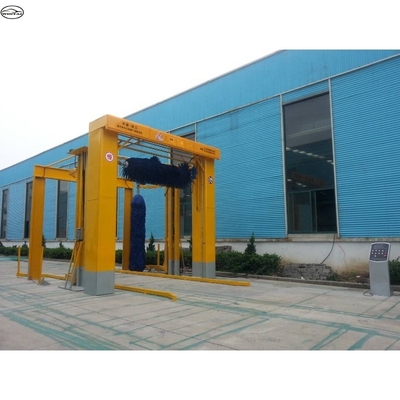

Introduction of Channel Type Bus/Truck Washing Machine with three brush The DXC (D) series bus washing machine produced by our factory is specially designed for buses and medium buses. It adopts channel-type vehicle washing method , can continue fast speed washing with high level of automation, can do large number of washing, and have small occupy of places. Main functions: vehicle chassis flushing, auto- detection system, auto-induction water spray, automatically wash vehicle body through its shape . This equipment has been on the market for nearly 20 years and is popular in most bus companies and coach station in China and abroad.

(1) The car washing machine adopts channel type , with computer control in the progress, can
      meet with vehicle models cleaning and cleaning needs which company operating (vehicle              size 2600 (width) × 4200 (height) mm).
(2)The machine can perform the high efficient , quick flushing and brushing of the operating

     vehicles through electronic control (programmable controller) continue it's automate operating
     control
(3) The washing machine is equipped with the newest modular automatic control system, fault
      automatic detection system, can control electricity leakage and overload, vehicle rearview              mirror automatic avoidance protection system.
(4)The washing machine has the function of fully automatic cleaning of two sides, the rear side,           the chassis, the tires, the window glass, and can automatically avoid the rearview mirror.
Technical Parameters:
Model number :DXC(D)-300
1.Applicable models: medium & large passenger vehicles
2.The size of the max vehicle suitable (width × height):

    2600 × 4200mm (length with no limite)
3. cleaning options: water flushing,
4.cleaning method: channel type (brushing, washing), self-driving entry mode
5.Cleaning method: two groups of side brush, one group of top brush
6.Operation mode: automatic control, manual control
7.Washing ability: 1~2 minutes /vehicle
8. Power: 14kw
9. water consumption: 150-180 liters / vehicle
10.air pressure:0.7Mpa

11.power: three-phase five-wire 380V/50HZ
12.Machine dimensions: (length × width × height): 5000 × 5360 × 4950mm
13.control system: Japan Mitsubishi PLC programmable controller
14.material: steel structure, through hot-dip galvanizing treatment
       and high-quality paint process
15.Vehicle cleaning and moving mode: the driver driving the vehicle forward
16.the cleaning brush is installed with splash-proof baffle to prevent car wash water splash

Washing process:

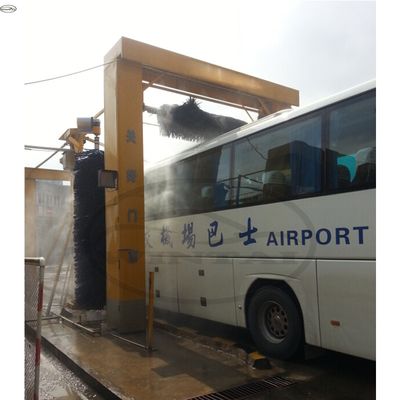

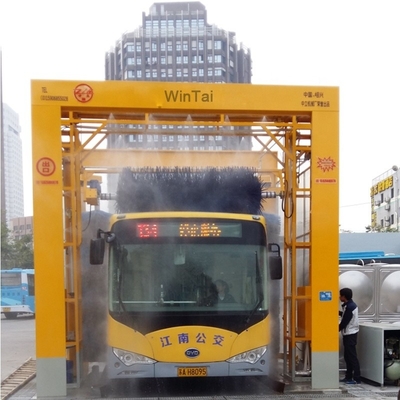

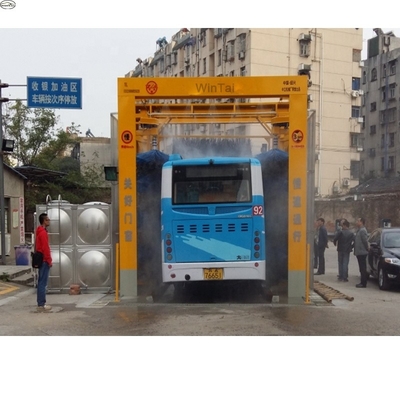

1. When the start button is pressed and the entrance signal light turn to green, the washing machine in the standby state. When the vehicle moves slowly to the cleaning area , the washing machine starts up automatically,It'll pre-spraying and rinsing, with cleaning brush to wash top of the vehicle, two sides and back of the vehicle After cleaning, there is no dust ,soil or other  dirty area on the vehicle body.during the cleaning process, the washing brush will automatically avoid the rearview mirror according to the signal detection. When the vehicle drive out from the      cleaning area, the cleaning ends automatically and waiting for the next vehicle to enteri in the washiing area.

2.The side brush consists of two sets of large rocking-type side brushes. By pneumatically controllingthe opening and closing of the brush arm, the appropriate air pressure generates a certain pressure,so that the rotating brush close to the car body, and it is rotated by the brush body. The brush fiber works at the surface of the car to cause rapid friction between the brush  fibers and the surface of the car to remove dirt on the vehicle body .

3. The side brusher can avoid the rear view mirror automatically under the signal detect Each side brusher are detected according to the signal light, it'll rest for minutes after relative time work.

4. The top brush is used for cleaning the top part of the vehicle , and automatically cleaning the vehicle top through signal detection starting and stopping at the appropriate time.

5. At the exit and entrance of the machine, a set of high-pressure water spray arches are provided  for pre-flushing and final flushing of the vehicle.
