24 inch large Tire Changing Machiner Alloy materialTyre Changer Machine Double bending process for columns Car Tire Mounting Machine

1
MOQ
To be discussed
Price
24 inch large Tire Changing Machiner Alloy materialTyre Changer Machine Double bending process for columns Car Tire Mounting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Outside Chuck Size: 11”-21”
Hydraulic Motor: 0.8KW/1.1KW
Power Supply: 110V/220V/380V 50/60HZ
Air Compressor Required: 8-10KG
Inside Chuck Size: 13”-24”
Max.wheel Diameter: 40"/1000mm
Max.wheel Width: 13"/330mm
Bead Break Force: 2500Kgf
NoiseN: Less Than 70db
Net/Cross Weight: 210 /230kgs
Packing Size: 1000x800x950mm
Basic Infomation
Place of Origin: CHINA
Brand Name: WINTAI
Certification: CE
Model Number: LT-508A
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 100 sets/month
Product Description

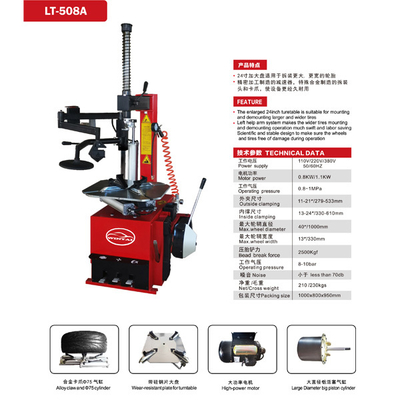

24 inch large Tire Changing Machiner Alloy materialTyre Changer Machine Double bending process for columns Car Tire Mounting Machine 0
FEATURE
  • The enlarged 24inch turetable is suitable for mounting and demounting larger and wider tires
  • Left help arm system makes the wider tires mounting and demounting operation much swift and labor saving
  • Scientific and stable design to make sure the wheels and tires free of damage during operation
TECHNICAL DATA
Power supply 110V/220V/380V 50/60HZ
Motor power 0.75KW/1.1KW
Operating pressure 0.8-1MPa
Outside clamping 11-21"
Inside clamping 13-24"
Max.wheel diameter 41"/1100mm
Max.wheel width 13"/330mm
Operating pressure 8-10bar
Bead break force 2500Kgf
  • Alloy clawand 75 cylinder
  • Wear-resistantplate for turntable
  • High-power motor
  • Large Diameter big piston cvlinder
24 inch large Tire Changing Machiner Alloy materialTyre Changer Machine Double bending process for columns Car Tire Mounting Machine 1
