Automatic 26" Automatic Tire Changer 12 Bar Pressure Easy Maintenance

1
MOQ
$1,380.00/sets >=1 sets
Price
Automatic 26" Automatic Tire Changer 12 Bar Pressure Easy Maintenance
Features Gallery Product Description Request A Quote
Features
Specifications
Motor Power: 0.75/1.1KW
Operating Pressure: 8-12 Bar
Power Supply: 110V / 220V /380V
Warranty: 1 Years
Help Arm: Yes
Tilt-back: Yes
Rims: 10"-26"
Color: Blue,Grey,Red
Bead Breaker Power Per Cylinder: 2800 Kg
Self-centering Rotation Speed: 6-12rpm
Net Weight: 360kgs
Free Crowbar: Yes
Highlight:

26" Automatic Tire Changer

,

12 Bar Pressure Automatic Tire Changer

,

26" Tire Changing Equipment
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: WRB-093HPROAR
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Set/Sets per Day
Product Description
Automatic 26" Tire Changer with 12 Bar Pressure and Easy Maintenance
10" to 26" Tire Removal Tool with Automatic Operation and 0.75/1.1KW Motor Power
Product Application
Automatic tire repairing machine and tire removal tool designed for 10" to 26" rims. Features free crowbar operation and specialized designs that simplify maintenance. Suitable for small and medium cars, supporting explosion-proof tires, low/flat tires, and tubeless tires.
Key Features
  • Supports 10" to 26" rims
  • WONDER brand motor with aluminum shelf and copper core
  • Super large cylinder (air tank)
  • Special triangle plate design at joint points for enhanced durability
  • 3mm thickness steel body processed by CNC machine with precise dimensions
  • High-quality pressure gauge
  • Double lock at dismantle head
  • Free crowbar tire dismantling head
  • Tilt-back vertical column
Technical Parameters
Max. Wheel diameter 1120 mm (44")
Max. Wheel width 420 mm (16")
Rim clamping from inside 12"-26"
Rim clamping from outside 10"-24"
Power supply 110V / 220V / 380V
Working pressure 8-12 bar
Bead breaker power per cylinder 2800 kg
Self-centering rotation speed 6-12 rpm
Net weight 360 kg

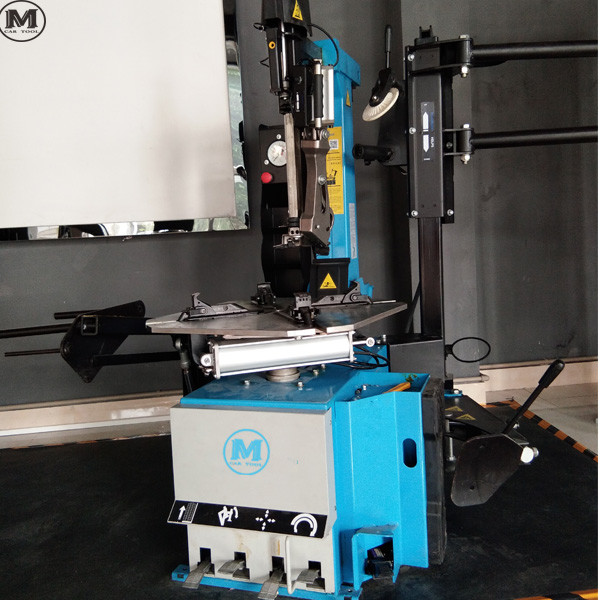

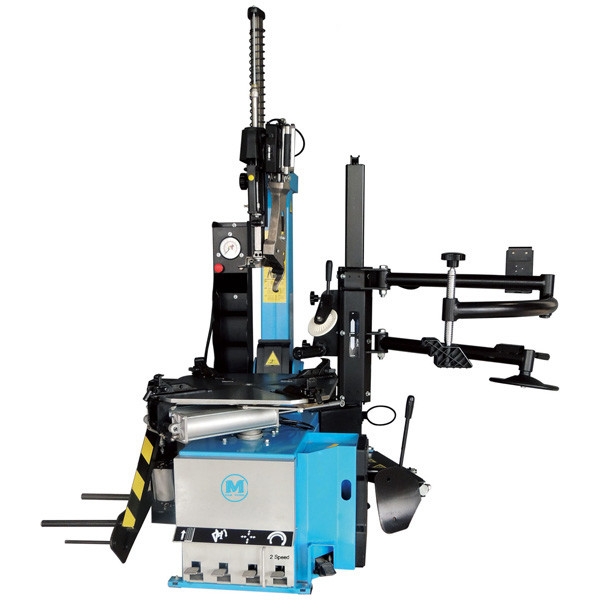

Automatic tire changer front view Tire changer side view showing controls Close-up of tire changing mechanism Tire changer in operation
Main Features
Standard configuration includes 5 auxiliary pneumatic lever arms. Features double and single crank pressure tire design with multi-assisted pressure tires. Lower plate assists in tire lifts during demolition process.
Optional Features: Two-speed motor and tire lifting device available as options. Our tire changers are heavier than market standards due to superior quality air tanks, motors, and steel plates.
  • Backward curved arms design for expanded operation room and safety
  • Trapezoid column base and housing overall box welding design for high intensity
  • 3mm thickness steel plate cabinet with concealed welding and attractive appearance
  • High strength tire changer head with minimal deformation and longer service life
  • Pure steel foot pneumatic valve piston rod assembly for smooth surface and corrosion resistance
  • Drawer control assembly for easy maintenance
  • All-aluminum copper motor for faster heat dissipation and high power
  • 180mm all-aluminum double-inlet tread separation cylinder with fully sealed design
  • 15mm thickness wheel chuck parts with fine adjustment capability
Detailed view of tire changer components
Big Clamps
Clamps suitable for 10"-26" rims, significantly larger than other suppliers, featuring plastic protection for enhanced safety and durability.
Welded Tilting Back Column
Tilting-back vertical column welded together for superior strength and stability.
Welded tilting back column structure Tilting mechanism close-up
Tire Shovel
Multi-directional rotating tire shovel - unlike many competitors who offer only two-direction rotation, our design allows rotation from multiple directions for enhanced versatility.
Super Big Cylinder (Air Tank)
Extra large 180mm air tank - significantly larger than the standard 170mm typically found in the market.
Large 180mm air tank component Air tank installation view
Drawer Type Steps
Stainless steel drawer-type steps (not plastic) for easy maintenance access without removing the entire cover.
Special Design Triangle Plate
Reinforcing triangle plates placed at multiple joint points to enhance machine durability and longevity.
Triangle plate reinforcement details Joint point triangle plate installation
WONDER Brand Motor
Premium WONDER brand motor featuring aluminum shelf and copper core construction, superior to standard iron shelf and aluminum core motors.
Free Crowbar Dismantling Head
Leverless, free crowbar dismantling head for efficient and effortless operation.
Free crowbar dismantling head mechanism
