Home /Products/Tire Changing Machine/Aluminium Pedal assembly Automotive Tire Changing Machine 24 inch large Tire Changing Machiner Convenient type left side helparm Tyre Changer Machine

Aluminium Pedal assembly Automotive Tire Changing Machine 24 inch large Tire Changing Machiner Convenient type left side helparm Tyre Changer Machine

1
MOQ
To be discussed
Price
Aluminium Pedal assembly Automotive Tire Changing Machine 24 inch large Tire Changing Machiner Convenient type left side helparm Tyre Changer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Outside Chuck Size: 11”-21”
Hydraulic Motor: 0.8KW/1.1KW
Power Supply: 110V/220V/380V 50/60HZ
Air Compressor Required: 8-10KG
Inside Chuck Size: 13”-24”
Max.wheel Diameter: 41"/1100mm
Max.wheel Width: 13"/330mm
Net/Cross Weight: 320/350kgs
Packing Size: 1000x800x1050mm 1280x380x320mm
Operating Pressure: 0.8-1MPa
Basic Infomation
Place of Origin: CHINA
Brand Name: WINTAI
Certification: CE
Model Number: LT-510
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 sets/month
Product Description

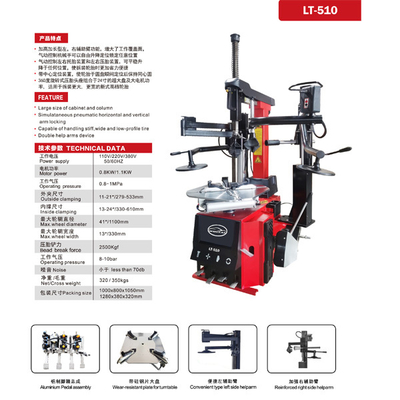

Aluminium Pedal assembly Automotive Tire Changing Machine 24 inch large Tire Changing Machiner Convenient type left side helparm Tyre Changer Machine 0

FEATURE

Large size of cabinet and column
Simulataneous pneumatic horizontal and vertical
arm locking
Capable of handling stiff,wide and low-profile tire
,Double help arms device

TECHNICAL DATA

Power supply 110V/220V/380V 50/60HZ
Motor power 0.75KW/1.1KW
Operating pressure 0.8-1MPa
Outside clamping 11-21"/279-533mm
Inside clamping 13-24"/330-610mm
Max.wheel diameter 41"/1000mm
Max.wheel width 13"/330mm
Operating pressure 8-10bar
Bead break force 2500Kgf
Noise less than 70db
Net/Cross weight 320/350kgs
Packing size 1000x800x1050mm   1280x380x320mm



Aluminium Pedal assembly
Wear-resistantplate forturntable
Convenient type left side helparm
Reinforced right side helparm

Aluminium Pedal assembly Automotive Tire Changing Machine 24 inch large Tire Changing Machiner Convenient type left side helparm Tyre Changer Machine 1
