Home /Products/Car Spray Booth/12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed

$7,998.00/sets >=1 sets
Price
12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths
Power: 12kw
External Size: 7m Lx5.30m Wx3.40m H
Internal Size: 6.9m Lx3.9m Wx2.7m H
Voltage: 380V/3phrase/50 Or60HZ
Disc Dia.: Nm
No Load Speed: Nm
Warranty: 1 Year
Air Flow(m³/h): 20000m³
Air Speed(m/s): 0.2-0.3
Wallboard: 50mm EPS Or Rock Wool
Port: Guangzhou/Shenzhen
Highlight:

20000m3 Air Flow Automotive Paint Booth

,

No Load Speed Automotive Paint Booth

,

12kw Car Paint Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: wintai
Model Number: WW0802
Payment & Shipping Terms
Packaging Details: standard export package
Supply Ability: 1000 Set/Sets per Month
Product Description
Product Description
Economic spray paint booth factory direct car spray painting room automotive spray booth
Wallboard thickness: 50mm with edge seal,0.426mm colorful steel Colorful steel board EPS (epispastics
polystyrene) inside, 14kg/m³, Roof panel: 0.7mm,galvanized
Door Sheet metal luxury doors 3pcs with BIG WATCHING WINDOW 1.5MX550MM, size: 3000(w)x2650(h)mm, Emergency doors: 650(w)x1800(h)mm
Foundation: Hot-dipped galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates . 2 pcs of ramps.
Air intake system 1x5.5KW European type large impeller intake fan, air flow is 20000m3/h. Motor is outside,easy for maintenance.
Air exhaust system 1x5.5KW European type large impeller intake fan, air flow is 20000m3/h.Motor is outside,easy for maintenance.
Heating System: I unit of Italy Riello G20 diesel burner, Max.temperature at 80.C.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System : Ceiling lights: 8unitsx3pcs of 18W LED lamps,24pcs total Side lights: 8unitsx2pcs of 18W LED lamps,16pcs total
Air PurificationPrimary filter: G2 grade, Ceiling filter: 600g/m2, F5 grade Rear wall filter: multi-layer fiberglass filter
Control box Function: Painting, constant temperature painting,lighting, painting time setting ;emergency stop switch, failure indication,

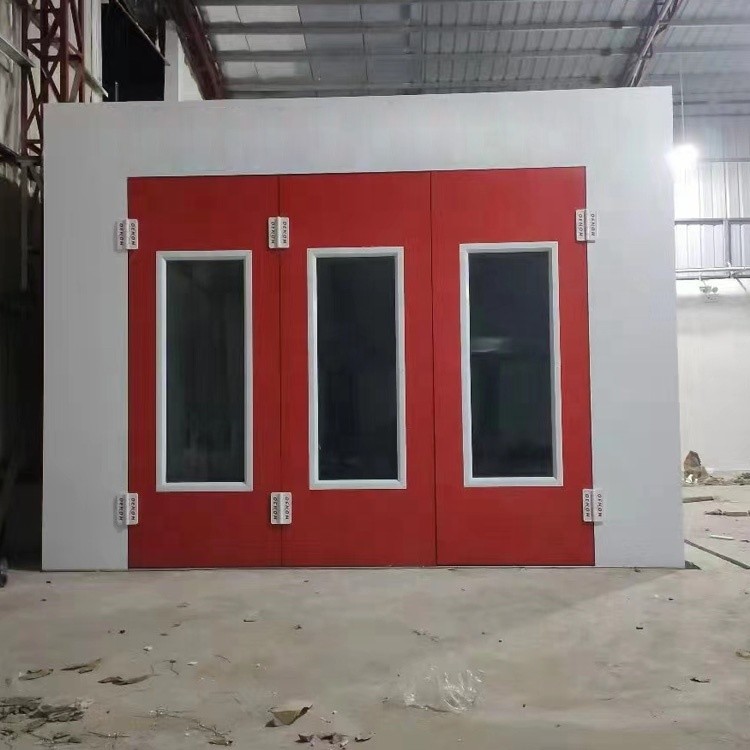

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 0

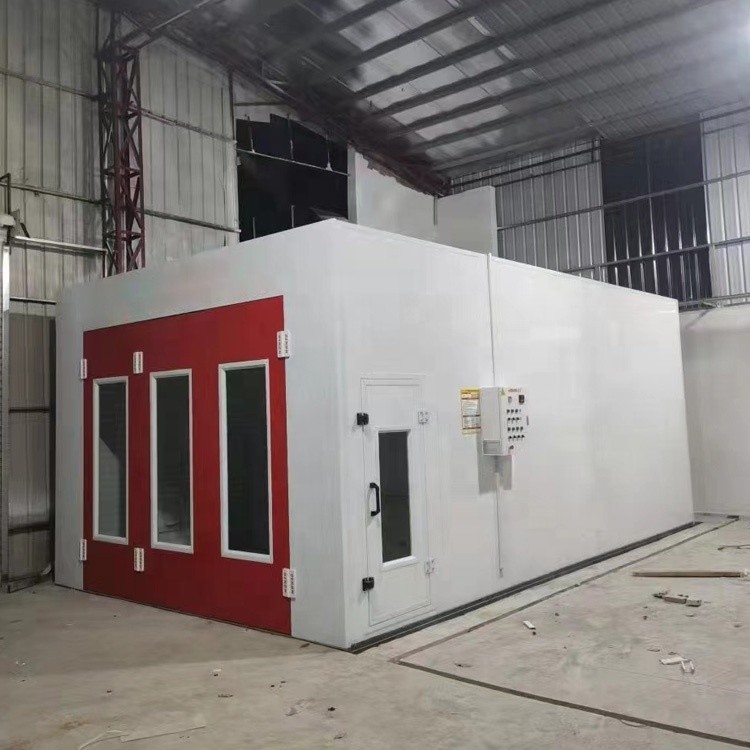

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 1

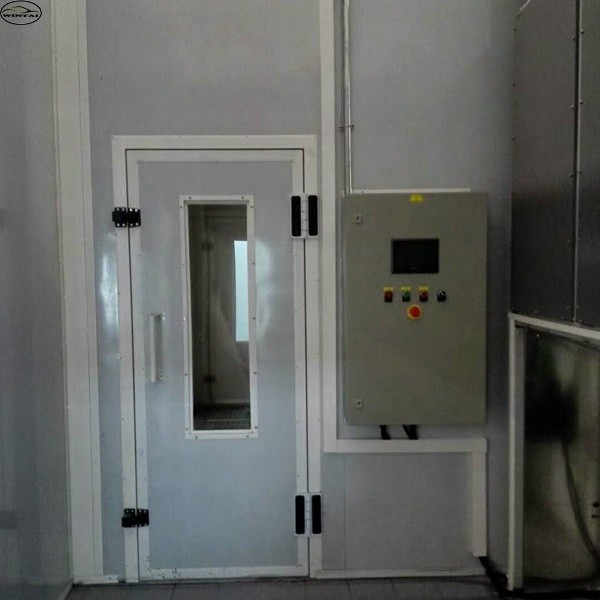

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 2

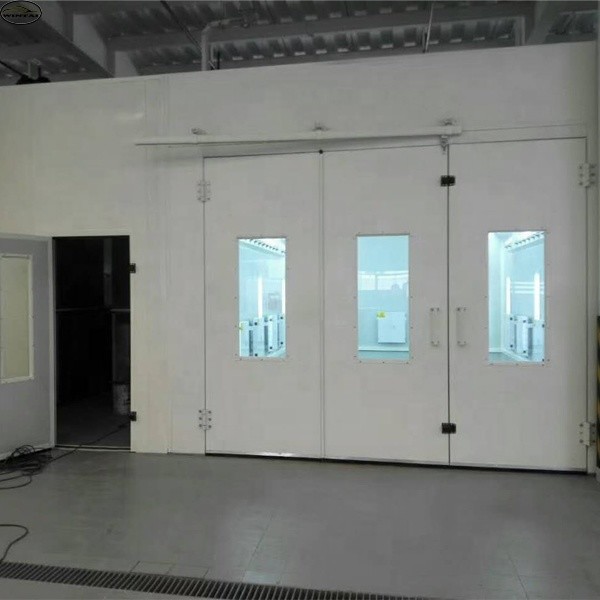

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 3

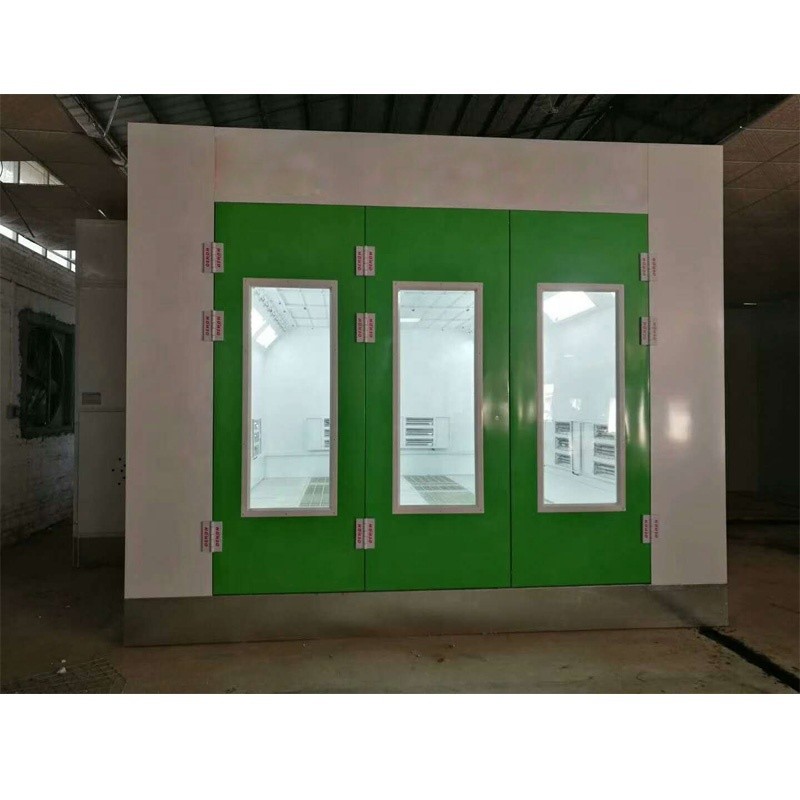

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 4

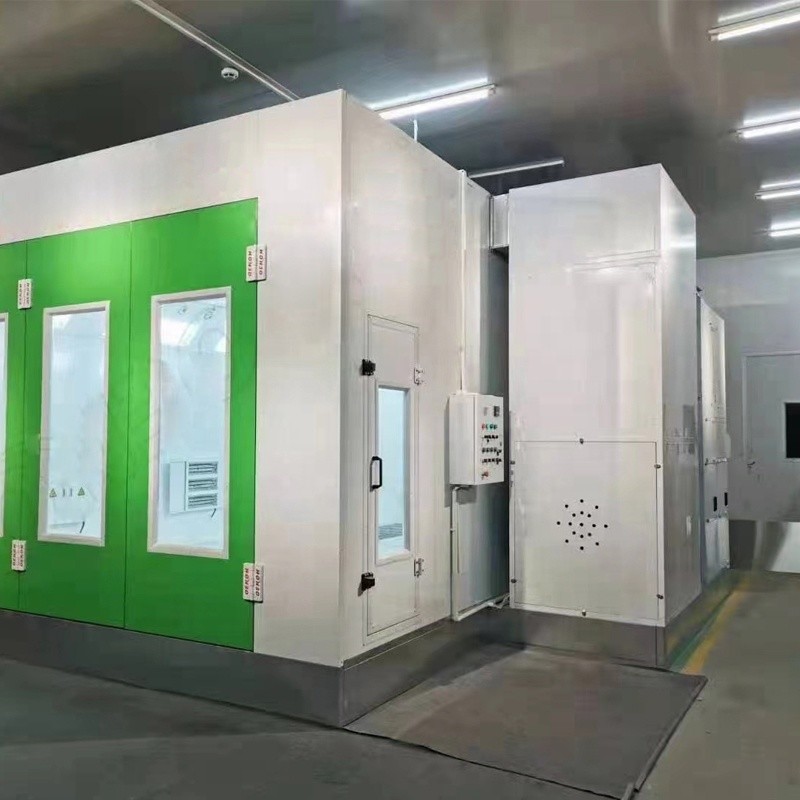

12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 5
12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 6
12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 7
Specification
item
value
Type
Spray Booths
Power
12kw
External Size
7m Lx5.30m Wx3.40m H
Internal Size
6.9m Lx3.9m Wx2.7m H
Voltage
380V/3phrase/50 or60HZ
Disc Dia.
nm
No Load Speed
nm
Place of Origin
China

Guangdong
Brand Name
wintai
Model Number
WW0802
Warranty
1 year
Air Flow(m³/h)
20000m³
Air Speed(m/s)
0.2-0.3
Wallboard
50mm EPS or rock wool
Packing & Delivery
12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 8
12kw Power Automotive Paint Booth With 20000m3 Air Flow And No Load Speed 9
