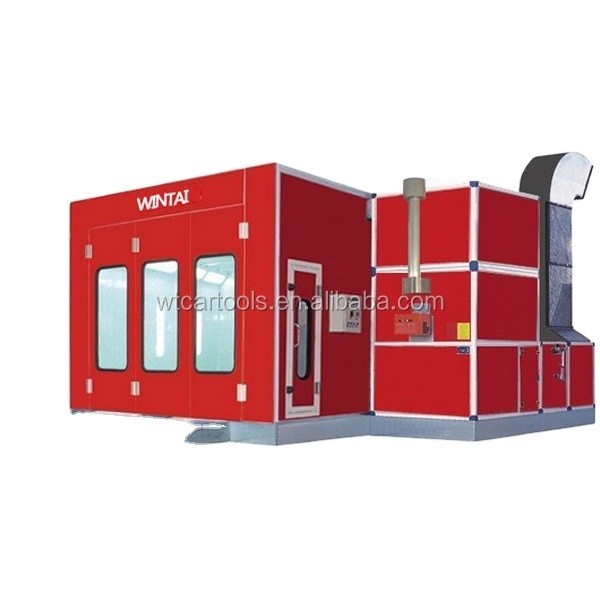

Name: 16KW LPG Burner Outdoor Automotive Paint Booth 380V With 24000 Air Flow
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: WW0802
Price: 4.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Spray Booths

Power: 16KW, 16KW

External Size: 7000*5450*3350mm, 7000*5450*3350mm

Internal Size: 6900*3900*2650mm, 6900*3900*2650mm

Voltage: 220V/380V

Disc Dia.: NM

No Load Speed: NM

Warranty: 1 Year

Color: Red,white, Orange,blue

Wall: 50mm

Heating System: Diesel/gas/LPG Burner

Air Flow: 24000

Air Speed: 0.3-0.5

Vehicle Suited: Saloon Car Jeep

Highlight:

16KW Outdoor Automotive Paint Booth

380V Outdoor Automotive Paint Booth

16KW Vehicle Spray Booth

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WINTAI

Certification: ce

Model Number: WW0802

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

16KW LPG Burner Outdoor Automotive Paint Booth 380V With 24000 Air Flow

Product Description

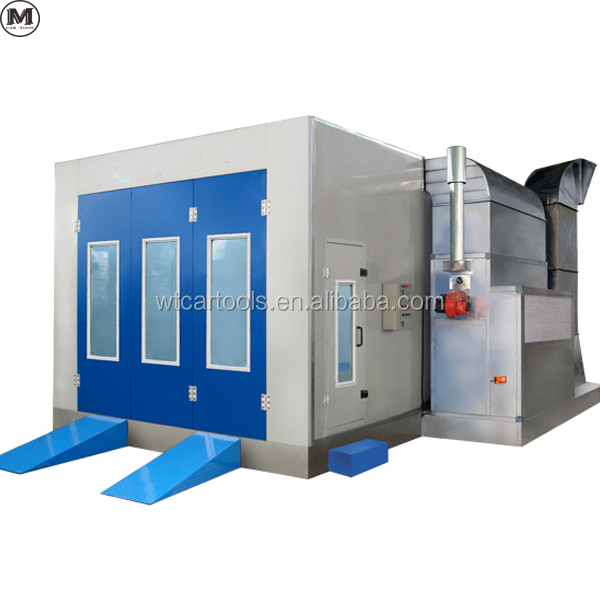

16KW LPG Car Paint Spraying Booth/Baking Oven/Paint Drying Oven with 220V 380V Voltage

Product Description

LPG Car Paint Spraying Booth/Baking Oven/Paint Drying Oven

External Size (m) 7x5.3x3.4

Internal Size (m) 6.9x3.9x2.7

Air Flow (m3/h) 20000

Air Speed (m/s) 0.25(no load),

Power (kw) 12
Vehicle Suited Saloon Car Jeep

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. colorful steel board outside, Galvanized steel as roof panel.

2. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

3. Door: 3 pcs of luxury sheet metal front doors . Size: 3000mm(w) x
2650mm(h). 1 pc of emergency door.

4. Air Circulation System: 1pc of 5.5KW European type intake fan, 1pc of 5.5KW European type exhaust fan. BELIMO 20N electric damper.

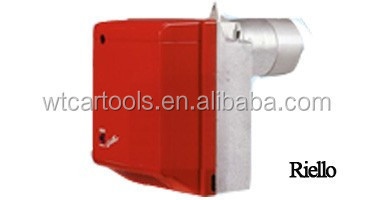

5. Burner: Italy Riello FS20/G20 burner, Max. temperature at 80.C.

6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. 7. Lighting System: Ceiling light has 24 pcs of 18w LED lamps. Side light is optional ,

8. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

9. Pollution Control System: Multi-layer fiberglass filter

Specification

item	value
Type	Spray Booths
Power	16KW
External Size	700054503350mm
Internal Size	690039002650mm
Voltage	220V/380V
Disc Dia.	NM
No Load Speed	NM
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WW0802
Warranty	1 year
Certification	ce
Color	red,white, orange,blue
Wall	50mm
Heating System	diesel/gas/LPG burner
External Size	700054503350mm
Internal Size	690039002650mm
Air Flow	24000
Air Speed	0.3-0.5
Power	16KW
Vehicle Suited	Saloon Car Jeep

Packing & Delivery

standard export package
