Auto Transmission Fluid Exchanger 2.2m Cable 220V Transmission Flushing Machine

1
MOQ
us$228/set-us$268/set
Price
Auto Transmission Fluid Exchanger 2.2m Cable 220V Transmission Flushing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220V Or DC12V
Current: 12A
Power Cable: 2.2m
Max Power: 140W
Pressure Gauge: 0~150PSI
Oil Return Pipe: 2.5m
Oil Discharging Pipe: 2.5m
Filter Accuracy: 5um
Oil Tank: 20LX2
Exchanging Error: ±100ML
Max Exchanging Speed: 2L/min
Color: Red,Blue
Cleaning Time: 30 Minutes
Highlight:

Auto Transmission Fluid Exchanger

,

2.2m Cable Transmission Fluid Exchanger

,

220V Transmission Flushing Machine

Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: 20DT
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 7
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets/month
Product Description
Auto Transmission Fluid Exchanger 2.2m Cable 220V Transmission Flushing Machine
Product Overview

ATF-20DT automatic transmission fluid exchanger & cleaner - a high-quality gearbox oil cleaner and changer designed for professional automotive maintenance.

Why Use an ATF Machine?

Traditional transmission fluid changes only replace about 25% of waste oil, leaving metal shavings, oil sludge, and other contaminants that cause secondary pollution. This leads to issues like slow acceleration, gear shifting vibration, overheating, and increased oil consumption. The ATF-20DT uses the world's latest technology to simultaneously fill new oil while discharging waste oil, ensuring complete gearbox maintenance with nearly 100% oil exchange.

Key Features
  • Compatible with European, American, and Japanese vehicle gearboxes
  • Complete oil exchange and cleaning of gearbox, hydraulic converter, and radiator in just 20 minutes
  • No disassembly required - removes metal shavings and oil sludge completely
  • Solves difficult gear shifting, restores performance, reduces vibration and temperature
  • Reduces fuel consumption and extends transmission lifespan
  • Mobile design with rational structure for easy operation
  • Quick-connect joints for fast gearbox connection
  • Adjustable pressure design for different vehicle models
  • Cycle cleaning function ensures complete maintenance
Product Images

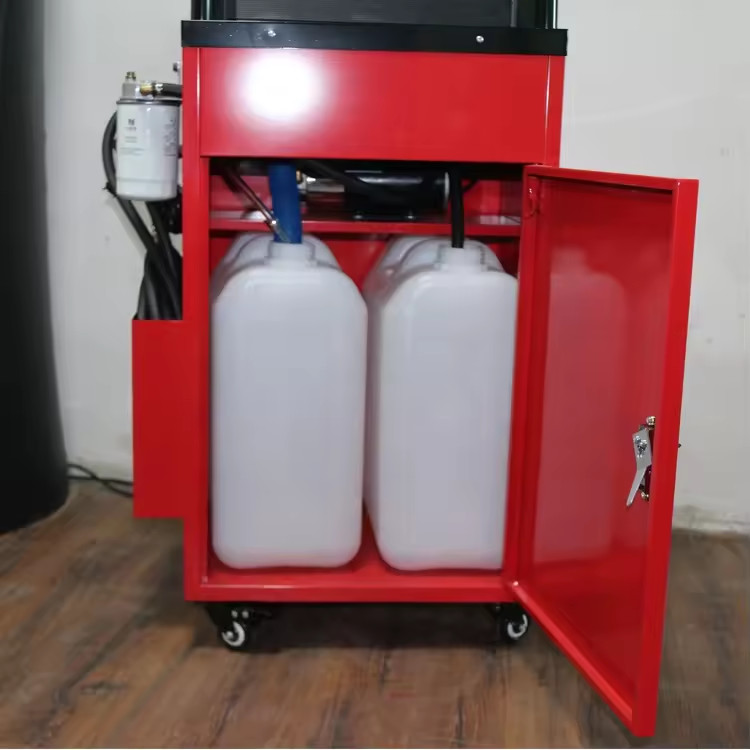

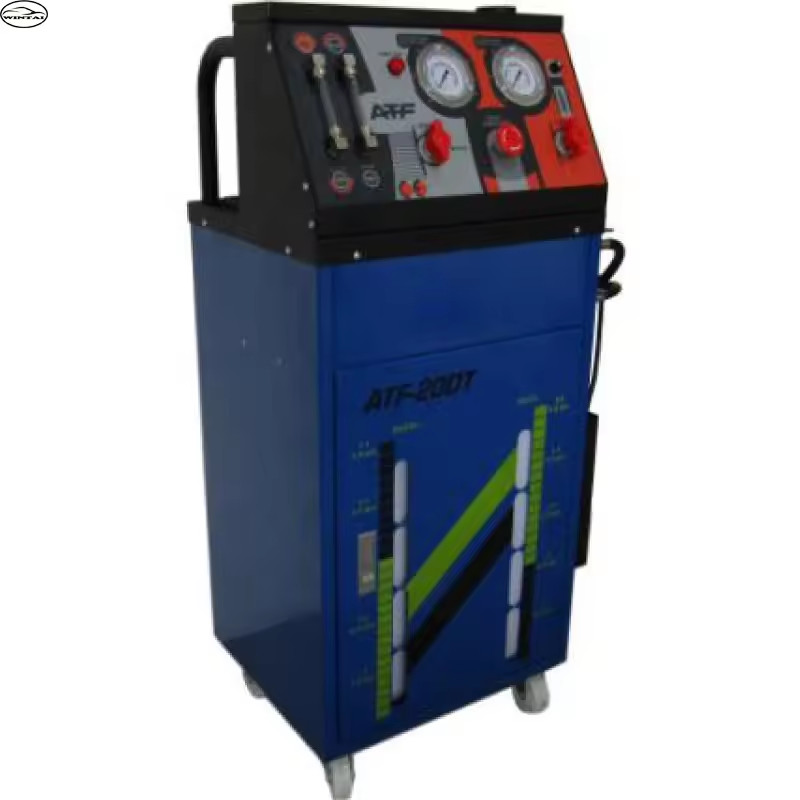

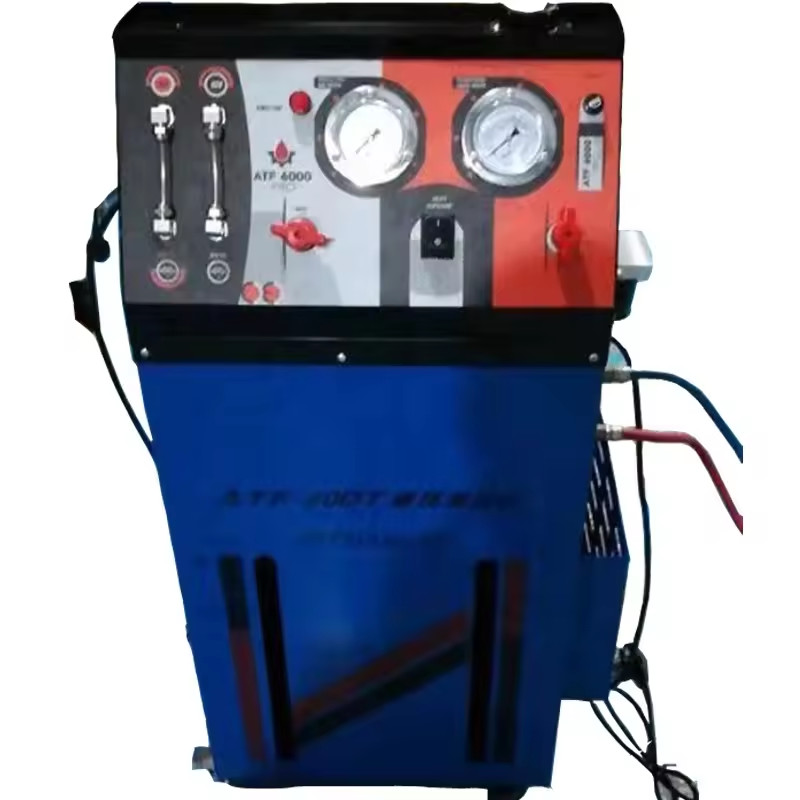

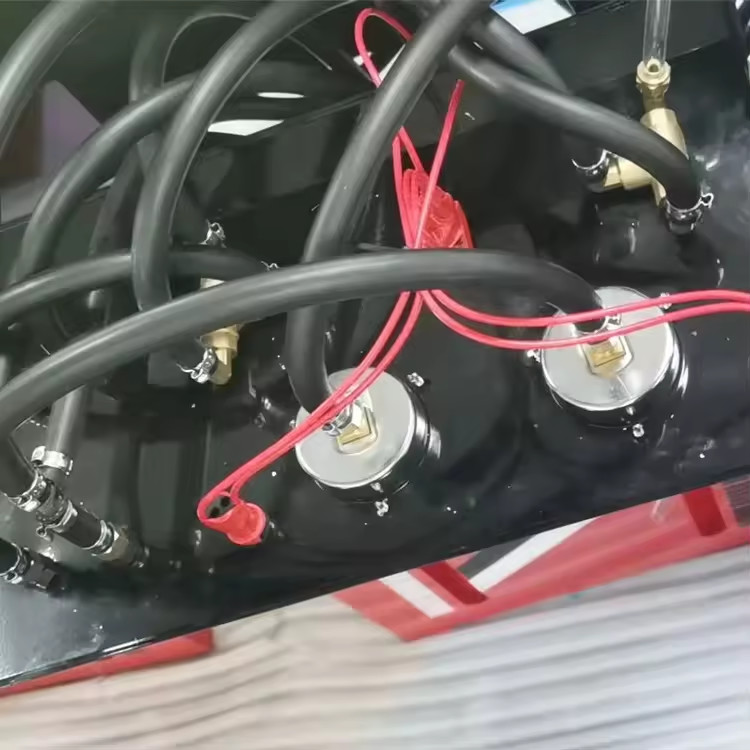

ATF-20DT Transmission Fluid Exchanger front view ATF-20DT side view showing controls and connections ATF-20DT close-up of pressure gauge and fittings ATF-20DT in operation with fluid lines connected
Technical Specifications
Specification Value
Type Other
Place of Origin China, Guangdong
Brand Name Wintai
Model Number ATF-20DT
Color Red
Material Metal
Voltage 220V or 12V
Current 12A
Power Cable 2.2m
Max Power 140W
Pressure Gauge 0-150PSI
Oil Return Pipe 2.5m
Oil Discharging Pipe 2.5m
Filter Accuracy 5um
Oil Tank 20L x 2
Exchanging Error ±100ML
ATF-20DT technical diagram and connection schematic
