Automotive Brake Fluid Exchanger With PA Brake Material And 4LX2 Oil Tank Capacity

1
MOQ
$430.00/sets 1-19 sets
Price
Automotive Brake Fluid Exchanger With PA Brake Material And 4LX2 Oil Tank Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Other
Color: Blue
Material: Metal
Model: BX-868
Material Of Oil Tank: Stainless Steel
Volume Of Oil Tank: 4LX2
Air Pressure Gauge: 0-140PSI
Vacuum Gauge: 0-0.1Mpa
Oil Pipe: 2.5mx5
Brake Material: PA
Net Weight: 28kgs
Gross Weight: 30kgs
Machine Size: 43X40X95CM
Port: Shenzhen Guangzhou
Highlight:

Automotive Brake Fluid Exchanger

,

4LX2 Brake Fluid Exchanger

,

Automotive Brake Fluid Exchange Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: wintai
Certification: CE
Model Number: BX-868
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 Set/Sets per Week
Product Description
Automotive Brake Fluid Exchanger With PA Brake Material And 4LX2 Oil Tank Capacity
Automotive Brake Oil Change Machine with PA Brake Material and 4LX2 Oil Tank Capacity

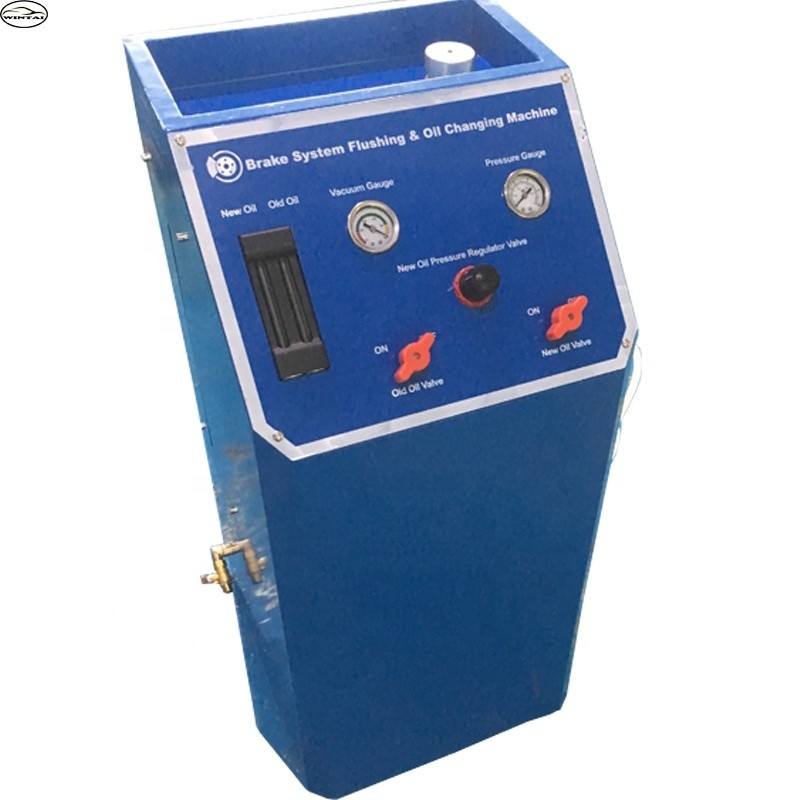

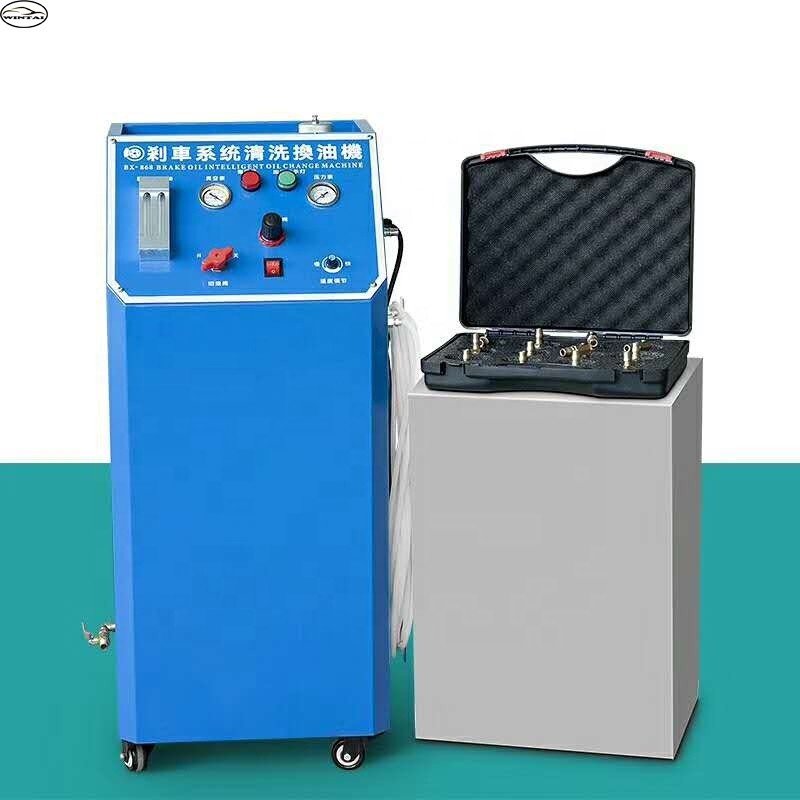

Automotive brake fluid exchanger machine overview Close-up view of brake fluid exchanger components
Key Functions
  • Changing brake oil for 4 wheels simultaneously

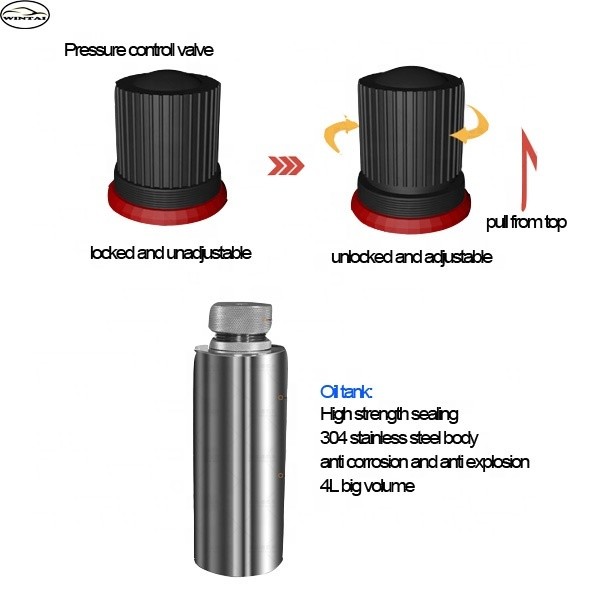

  • 304 Stainless steel oil tank for corrosion resistance
  • High quality pressure controller for precise operation
  • Extracting from top and pushing from bottom structure ensures quick oil change and prevents air entry
  • Automatic new/old oil drainage system
Technical Parameters
Material of oil tank Stainless steel
Volume of oil tank 4LX2
Air pressure gauge 0-140PSI
Vacuum gauge 0-0.1Mpa
Oil pipe 2.5mx5
Brake material PA
Net Weight 28kgs
Gross weight 30kgs
Machine size 43X40X95CM
Operation Method
  1. Ensure all switches (New Oil Filling, Old Oil Extraction, Waste Oil Drainage) are off and connect equipment to air source
  2. Use oil pumper to extract old oil from brake fluid tank, leaving 50ml as sample
  3. Fill brake oil tank manually with detergent and feed remaining detergent from New Oil Filling port (release pressure when loosening)
  4. Connect filling adapter, transparent tube, and brake fluid tank connector. Switch on New Oil Filling, adjust air pressure to 2kgs, slowly open Oil Filling Valve to remove air from tube, then connect to brake fluid port
  5. Connect 4 hoses to car's brake oil pumps and loosen oil screws
  6. Switch on Old Oil Recycling and New Oil Filling. Switch off when no fluid flows to complete cleaning
  7. Fill 2 bottles of brake oil from New Oil Filling port (release pressure when loosening), then secure
  8. Switch on Old Oil Recycling and New Oil Filling. Switch off New Oil Filling when fluid reaches "02" level and brake oil tank level is slightly above maximum line
  9. Close oil screws, disconnect 4 hoses quickly, clean extracting oil pipe, return pipe to position, then switch off Old Oil Extraction
  10. Step brake 7-8 times, observe fluid level, add more if needed, secure tank cover, and perform driving test
Please contact us for operation video Additional view of automotive brake fluid exchanger
