AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle

1
MOQ
$1,250.00/sets 1-4 sets
Price
AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle
Features Gallery Product Description Request A Quote
Features
Specifications
Model: 124 Spider (348_)
Year: 2016-
Type: Headlight Tester
Voltage: 220v
Car Fitment: Abarth
Power: W
Applicable Models: Universal
Combination: SDK
Warranty: 12 Months
Product Name: NHD-8101 Auto Headlight Tester
Power Supply: AC220V ±10%
Power Consumption: <2W
Weight: 30Kg
Dimension Of The Rail Guide: 100mm X 3,000mm(length)
Length: 3,000mm
Outer Dimension: 605mm(W) X1,600mm(H) X 595mm(D)
Central Height Of Headlight: 50cm ~ 130cm
Light Intensity: 0 ~ 60,000cd
Deviation Of Optical Axis: Up 1°30~ Down 2°30
Port: Shenzhen Guangzhou
Highlight:

AC220V Headlight Testing Machine

,

NHD-8101 Headlight Testing Machine

,

NHD-8101 Headlight Testing Device
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: NANHUA
Certification: CE
Model Number: NHD-8101
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 Set/Sets per Week
Product Description
Product Description

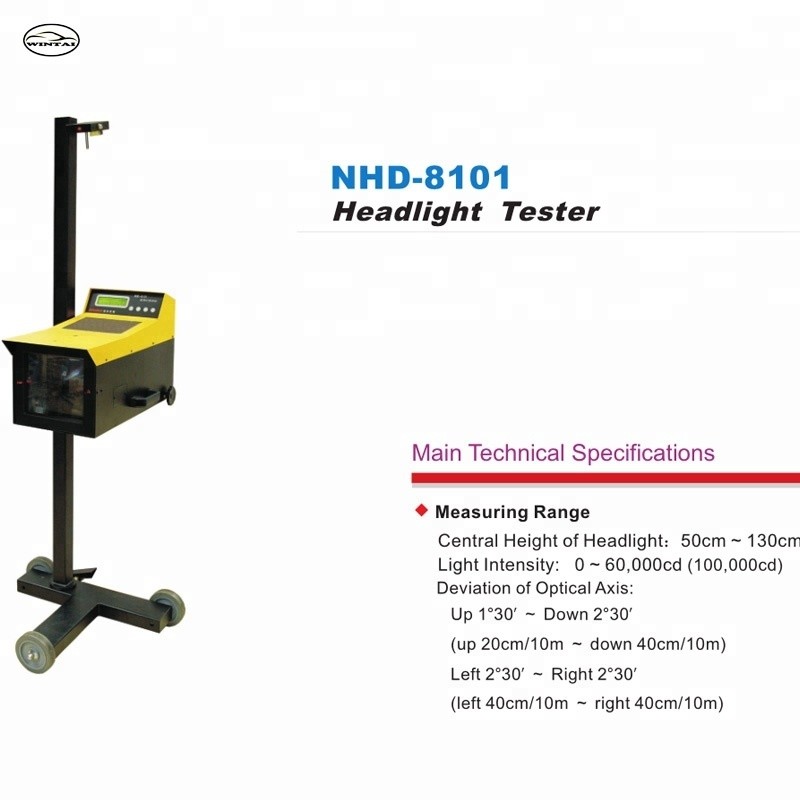

NHD-8101 Auto Headlight Tester car headlight testing machine
Main Technical Specifications
Measuring Range
Central Height of Headlight:50cm ~ 130cm
Light Intensity: 0 ~ 60,000cd (100,000cd)
Deviation of Optical Axis:
Up 1°30 ~ Down 2°30
(up 20cm/10m ~ down 40cm/10m) Left 2°30′ ~ Right 2°30′
(left 40cm/10m ~ right 40cm/10m)

General Features

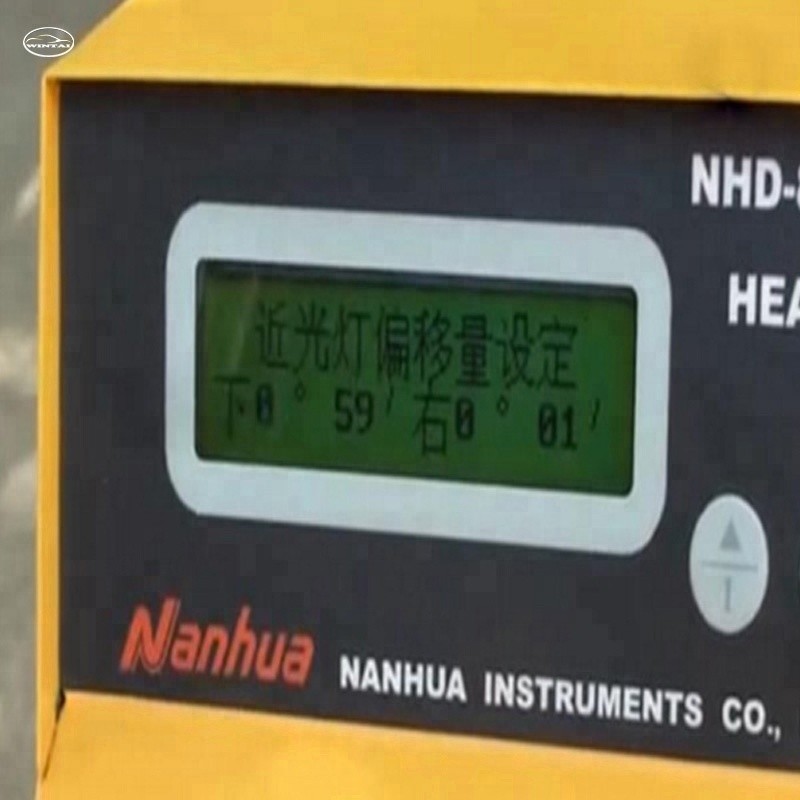

1NHD-8101 Headlight Tester is for testing the luminous intensity, light height and optic deviation of the headlight of automotive and motorcycle. It is equipped with Chinese or English LCD display, standard RS-232C interface, analog data output interface and battery-operated in low power consumption mode. Assembly and disassembly are fast, it is very easy to move.
2 With the advantages of easy operation and accurate measurement, it is suitable for use in vehicle inspection stations and mobile inspection lines for headlight inspection. It is also suitable for use in vehicle repairing and maintenance shops for adjusting and testing the illumination position of the headlight beams. 3Provide auxiliary angular calibration to headlight testers. (The instrument automatically indicates the adjustment direction of
the headlight tester)

Measurement Accuracy
Light Intensity of High Beam: ±12%
Central Height of Headlight: ±1cm
Optical Deviation: 12
Power Supply:
AC220V ±10% 50Hz ±1Hz or 1 DC9V battery/ 6 DC1.5V batteries (for laser)
Power Consumption: <2W (for complete set)
Weight: 30Kg
Dimension of The Rail Guide:
100mm × 3,000mm(length)
Outer Dimension:605mm(W) × 1,600mm(H) × 595mm(D)

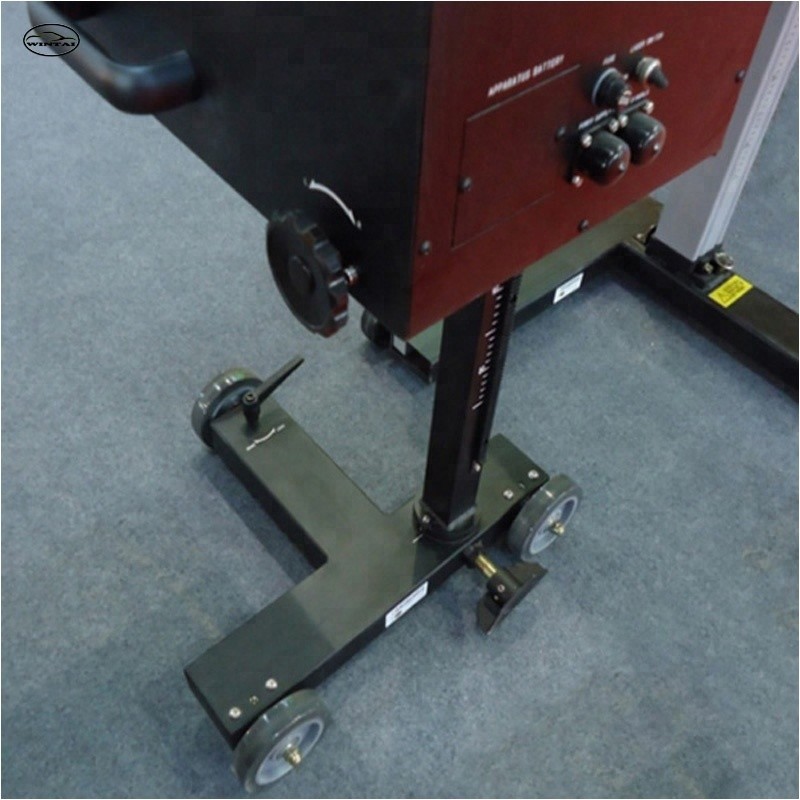

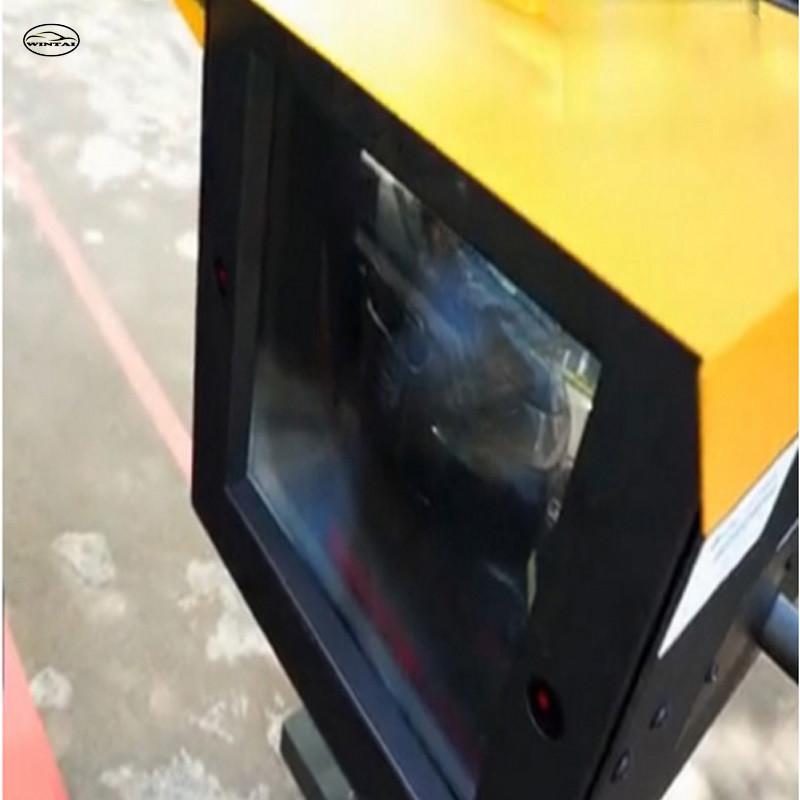

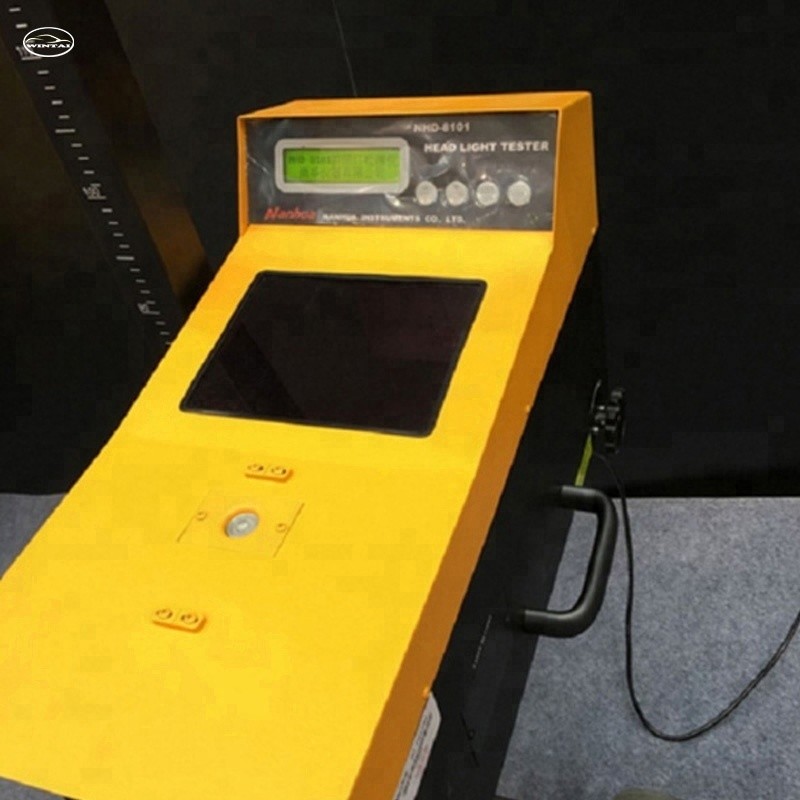

AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 0
AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 1
AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 2
AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 3
AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 4
Specification
item
value
Type
headlight tester
Voltage
220v
Power
W
Applicable Models
universal
Combination
SDK
Place of Origin
China

Guangdong
Brand Name
NANHUA
Model Number
NHD-8101
Warranty
12Months
Product name
NHD-8101 Auto Headlight Tester
Power Supply
AC220V ±10%
Power Consumption
<2W
Weight
30Kg
Dimension of The Rail Guide
100mm x 3,000mm(length)
length
3,000mm
Outer Dimension
605mm(W) x1,600mm(H) x 595mm(D)
Central Height of Headlight
50cm ~ 130cm
Light Intensity
0 ~ 60,000cd
Deviation of Optical Axis
Up 1°30~ Down 2°30
Packing & Delivery

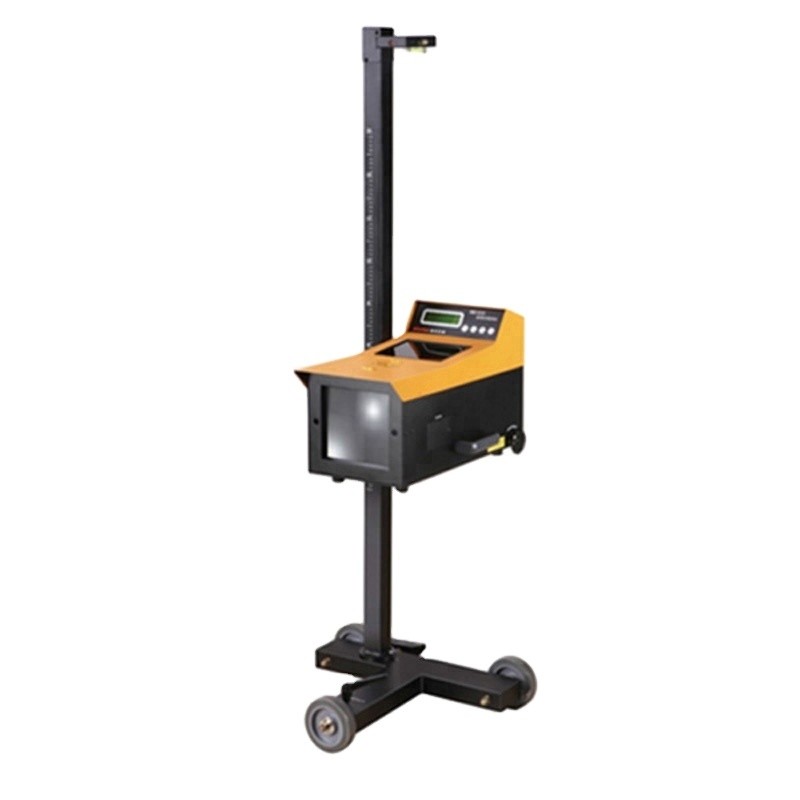

AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 5
AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle 6
standard export packing
