26 inch large Auto Tire Changer Enhanced auxiliary arm Car Tyre Changer Machine Automatic positioning function Automotive Tire Machine tire fitting machine

1
MOQ
To be discussed
Price
26 inch large Auto Tire Changer Enhanced auxiliary arm Car Tyre Changer Machine Automatic positioning function Automotive Tire Machine tire fitting machine
Features Gallery Product Description Request A Quote
Features
Specifications
Outside Chuck Size: 11”-23”
Hydraulic Motor: 0.75KW/1.1KW
Power Supply: 110V/220V/380V 50/60HZ
Air Compressor Required: 8-10KG
Inside Chuck Size: 11”-26”
Max.wheel Diameter: 41"/1100mm
Max.wheel Width: 13"/330mm
Net/Cross Weight: 300/ 320kgs
Packin Size: 1000x800x950mm 1280x380x320mm
Basic Infomation
Place of Origin: CHINA
Brand Name: WINTAI
Certification: CE
Model Number: LT-868
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 sets/month
Product Description

26 inch large Auto Tire Changer Enhanced auxiliary arm Car Tyre Changer Machine Automatic positioning function Automotive Tire Machine tire fitting machine 0

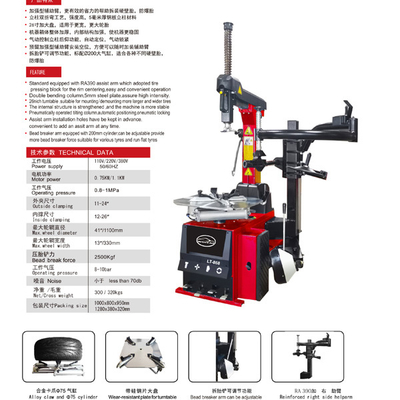

FEATURE

Standard equipped with RA390 assist arm which adopted tire
pressing block for the rim centering,easy and convenient operation
Double bending column,5mm steel plate,assure high intensity.
26nich turntable ,suitable for mounting/demounting more larger and wider tires
The internal structure is strengthened ,and the machine is more stable
Pneumatically operated tilting column,automatic positioning,oneumatic locking
Assist arm installation holes have be kept in advance,
convenient to add an assit arm at any time.
Bead breaker arm equipped with 200mm cylinder,can be adjustable provide

more bead breaker force suitable for various tyres and run-flat tyres

TECHNICAL DATA

Power supply 110V/220V/380V 50/60HZ
Motor power 0.75KW/1.1KW
Operating pressure 0.8-1MPa
Outside clamping 11-24"
Inside clamping 12-26"
Max.wheel diameter 41"/1100mm
Max.wheel width 13"/330mm
Operating pressure 8-10bar
Bead break force 2500Kgf
Noise less than 70db
Net/Cross weight 300/ 320kgs
Packing size 1000x800x950mm  1280x380x320mm



Alloy claw and 75 cylinder
Wear-resistantplate forturntable
Bead breaker arm can be adjustable
Reinforced right side helparm

26 inch large Auto Tire Changer Enhanced auxiliary arm Car Tyre Changer Machine Automatic positioning function Automotive Tire Machine tire fitting machine 1
