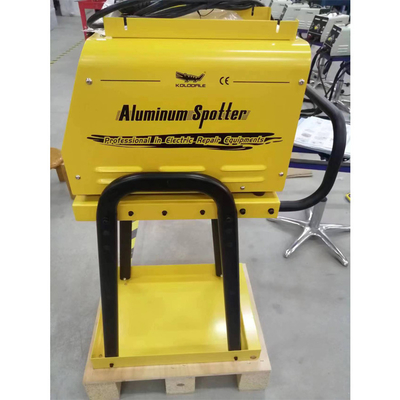

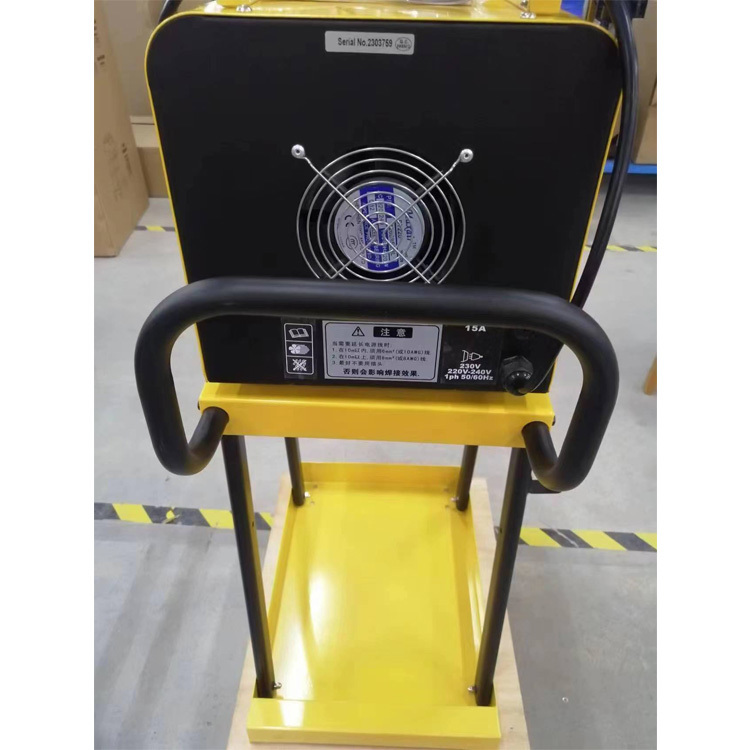

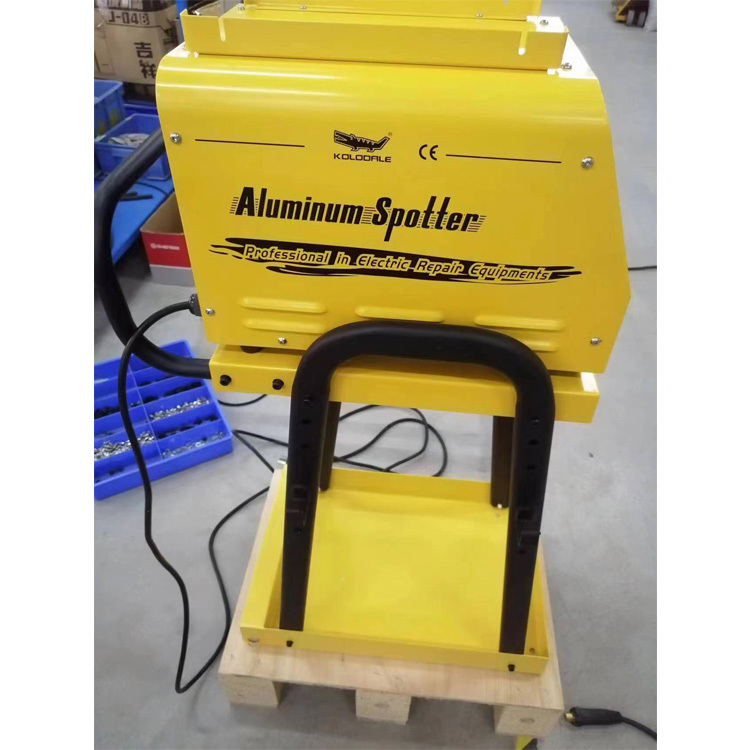

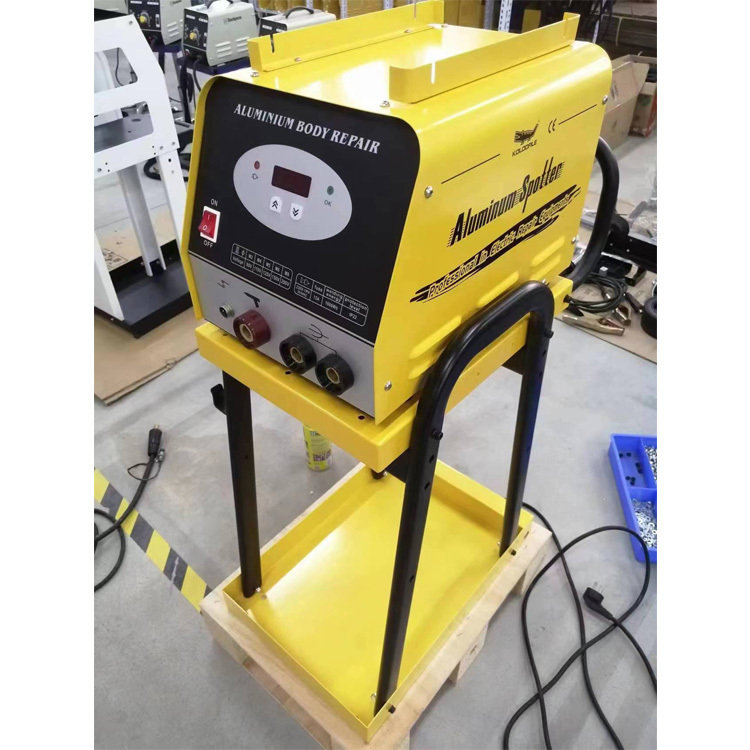

Aluminum Car Body Dent Repair Spot Welding Machine Car Body Repair System

Aluminum Car Body Dent Repair Spot Welding Machine Car Body Repair System

Aluminum alloy materials are increasingly used in high-end car bodies, such as Mercedes Benz, BMW, Audi, Volvo, etc., due to their lightweight and sturdy properties. Due to the welding characteristics of aluminum alloy materials, common meson machines and shape repair machines are powerless. Therefore, specialized car body repair machines and supporting tools must be used for the repair of aluminum alloy bodies.
1. Adopting cutting-edge discharge arc ignition technology, the welding time is very short (within 3 milliseconds), greatly reducing the heat generated during welding, and avoiding the discoloration and deformation of the paint layer, electroplating layer, and plastic parts caused by high temperature and overheating.
2. Adopting energy saving technology for energy storage, it is not affected by the length of the power supply line or the thickness of the welded body,
3. Adopting digital circuit voltage regulation technology and LED digital tube display voltage, accurate and intuitive,
4. It adopts the original Suzuki power storage special capacitor from Japan, with strong and stable output,
5. Equipped with various auxiliary parts, it can meet the repair of various concave situations,
6.It mainly welds aluminum, and can also weld steel, stainless steel, copper, etc.

Parameters:

Model: ALUSPOT-M6B
Input Voltage: 220V/1p/50HZ or 60HZ
Input Power: 1.6KVA
Capacitance 72000uf
Welding time:1-3 ms
Stud welding rangeΦ 3-8mm
Max welding speed 20pc/min
Welding way: manual
Package size:50X40X97cm
GW: 50KGS

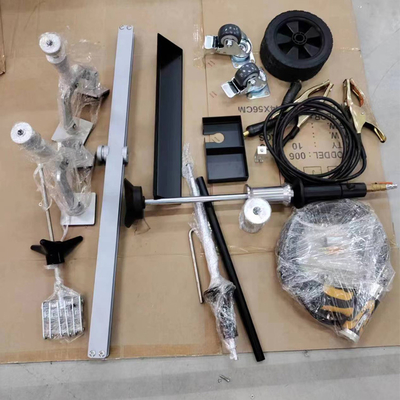

Packing List as follows:

Package
