CRI-M30 COMMON RAIL INJECTOR TEST BENCH

1
MOQ
To be discussed
Price
CRI-M30 COMMON RAIL INJECTOR TEST BENCH
Features Gallery Product Description Request A Quote
Features
Specifications
Pressure Range: 0~60Mpa
Pulse Range: 1000~6000us
Test Injectors: Denso,Delphi And Siemens
Tank Volume: 2.85L
Weight: 60kg
Size: 54*39*66cm
Working Temperature: 0~50℃
Highlight:

CRI-M30 common rail injector tester

,

common rail injector test bench

,

diesel injector testing equipment
Basic Infomation
Place of Origin: Guangzhou
Brand Name: WINTAI
Model Number: CRI-M30
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000
Product Description
CRI-M30 Common Rail Injector Test Bench
The CRI-M30 Common Rail Injector Test Bench simulates Engine Control Unit (ECU) outputs by providing configurable fuel injection control signals for testing Bosch, Denso, Delphi, and Siemens solenoid and piezo injectors.
Technical Specifications
Pressure Range 0-60 MPa
Pulse Range 1000-6000 μs
Compatible Injectors Bosch, Denso, Delphi, Siemens
Piezo Function Yes
Tank Volume 2.85 L
Weight 60 kg
Dimensions 54 × 39 × 66 cm
Graduates 45 mm
LCD Screen Size 99 × 24 mm
Operating Temperature 0-50°C
Operating Voltage Single Phase AC 220V/110V 50/60Hz

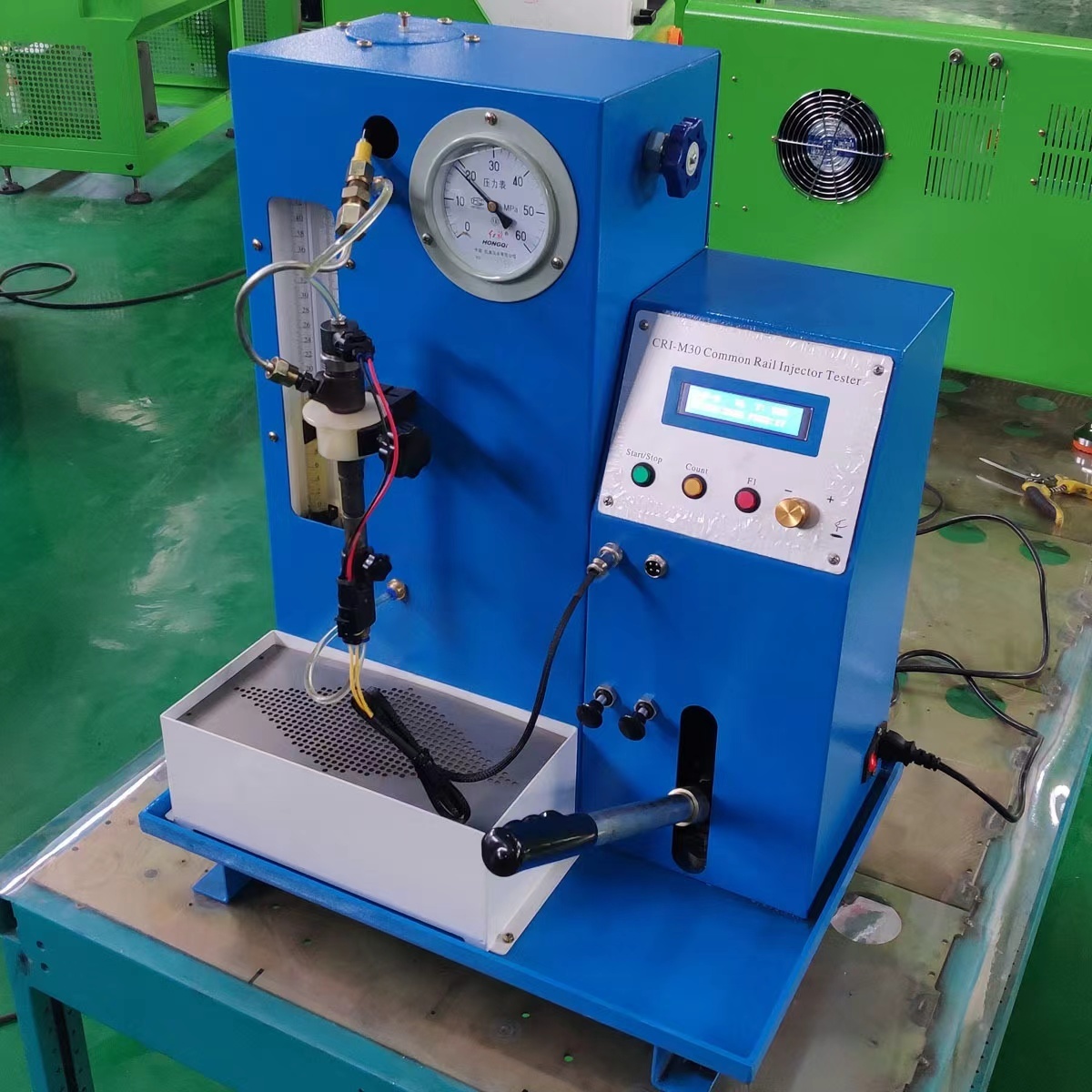

Device Panel Overview
CRI-M30 COMMON RAIL INJECTOR TEST BENCH 0
Panel Component Identification
  1. Hand pressure handle
  2. LCD screen
  3. Data setting, testing start and close buttons
  4. Pressure switch
  5. Pressure gauge
  6. Injector holder
  7. Injector power connection
  8. Fuel supply point
  9. Fuel returning point
  10. Fuel injection point
  11. Measurement glass
  12. Fuel outlet valve
  13. Fuel collecting tank
