Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes

1
MOQ
us$20000/set-us$48000/set
Price
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Tunnel Type Automatic Car Washing Machine

,

9 Brushes Automatic Car Washing Machine

,

Intelligent Car Wash Machine
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: 9 BRUSHES
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 sets/month
Product Description

3. Hub brush can stretch out and draw back preciselyFeatures :

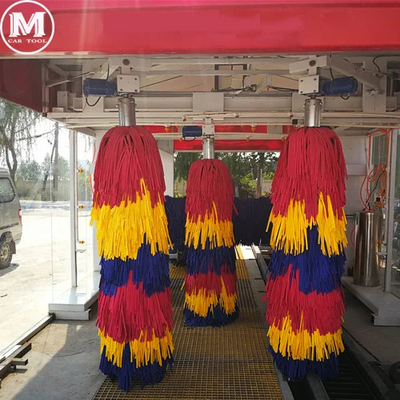

1. Patented technology: bended brush can wash side window and side skirt properly

Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes 0

2. Front and back side can be washed completely.

3. Hub brush can stretch out and draw back precisely

Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes 1Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes 2

4. English version of control box.

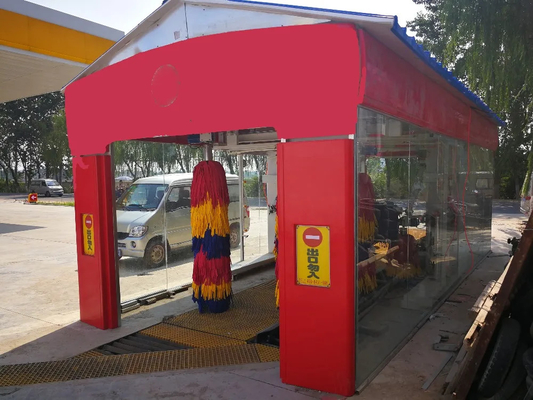

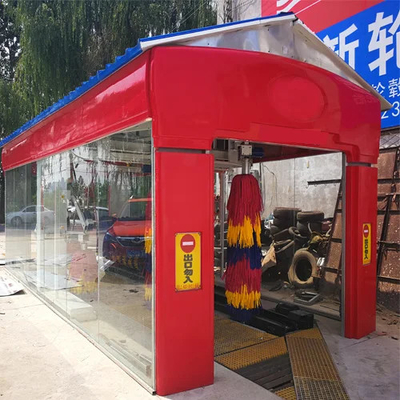

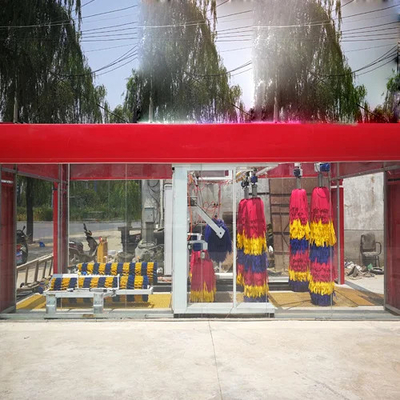

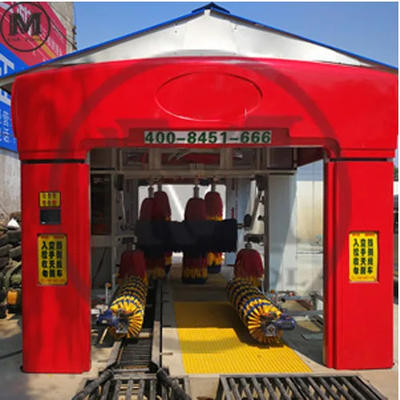

Tunnel Type: different with reciprocating type, tunnel type has beautiful glass outside, so that the whole washing process is visible. Meanwhile , conveyer takes car through each washing process, finally brings the car to the other side when the washing procedure is completed. It has below advantages:

1). nice and modern appearance will enhance the impression of your garage.

2). flushing, washing and drying in one time, save manpower.

3) Suitable for large space in the open air.

Type 7+4 Brushes Without Dryer 7+4 Brushes With Dryer 9+4 Brushes Without Dryer 9+4 Brushes With Dryer 10+6 Brushes With Dryer and Wiper 12+6 Brushes With Dryer and Wiper
Machine Size 4000 x 3740 x 2800 6000 x 3660 x 2800 4000 x 3660 x 2800 6000 x 3660 x 2800 8000 x 3660 x 2800 8000 x 3660 x 2800
L x W x H(mm)
Car Size 2000 x 2000 2000 x 2000 2000 x 2000 2000 x 2000 2000 x 2000 2000 x 2000
L x W x H(mm)
Channel Length(mm) 5200 6800 5200 6800 8400 8400
Capacity L x W x H(mm) 17000 x 3740 x 3000 18500 x 3740 x 3000 17000 x 3740 x 3000 18500 x 3700 x 3000 20000 x 3700 x 3000 20000 x 3700 x 3000
Voltage(V) 380 380 380 380 380 380
Power(KW) 9 21 10 22 27 28
Consumed Water Capacity 60L／Car(with water recycle system); 150L／Car(without water recycle system) 60L／Car(with water recycle system); 150L／Car(without water recycle system) 60L／Car(with water recycle system); 150L／Car(without water recycle system) 60L／Car(with water recycle system); 150L／Car(without water recycle system) 60L／Car(with water recycle system); 150L／Car(without water recycle system) 60L／Car(with water recycle system); 150L／Car(without water recycle system)
Washing Speed 40 cars/hour 40 cars/hour 40 cars/hour 40 cars/hour 40 cars/hour 40 cars/hour
Lever type Top Brush 1 1 1 1 1 1
Super Follow-up Wheel Brush 2 2 2 2 2 2
Hub Brush N N 2 2 N 2
Patented Bent Brush 4 x 4 4 x 4 4 x 4 4 x 4 4 x 4 4 x 4
Drying Side Brush N N N N 2 x 2 2 x 2
Drying Top Brush N N N N 1 1
Pre-wash Y Y Y Y Y Y
Foaming Y Y Y Y Y Y
Waxing Y Y Y Y Y Y
Bottom Spray Y Y Y Y Y Y
Drying N Y N Y Y Y
Spray-Paint Base Y Y Y Y Y Y
Antirust Parts Y Y Y Y Y Y
Glass Decoration Board Y Y Y Y Y Y
Conveyer Device Y Y Y Y Y Y
Touch Screen Y Y Y Y Y Y
Plastic Steel Outside Y Y Y Y Y Y



Details of 9+4 Brushes With Dryer

Parameter of machine:

  • Machine size: 6.20m Lx3.74m Wx2.8m H,
  • Machine working distance: 7.50m
  •
  • Land occupied length: 8.0m
  • Machine weight : 5.5tons

  •

    Functions:

    Top Brush: 1pc

    Hub(wheel rim) Brush: 2pcs

    Super Follow-up Short Brush: 2pcs

    Patented bended side brush: 4pcs



    Flushing way: high pressure water jet system,

    Foam cleaning: automatic foam spraying system,

    Wax cleaning: automatic wax spraying system,

    Chassis cleaning: automatic high pressure water flushing system

    Drying : 4 blowers

    Car moving: Roller conveyor system

    Control unit: PLC computer control system

    Fault self-checking: yes

    Car cleaning mode: several options available

    Automatic recording: yes

    Automatic car washing display: yes



    Vehicles suitable:

    Suitable for cars, SUV ,minibus

    Max length: no limitation

    Max width: 2m

    Max height: 2m



    Water & Electricity Supply:

    380V~415V/3 phase

    Power: 25KW

    Power consumption: 0.3 kwh/car

    Water consumption: 60L/car with water recycle system, 150L/car without water recycle system
