European Diesel Car Paint Booth with Turbo Fan NM Disc Dia. and F5 Ceiling Filter

Product Application

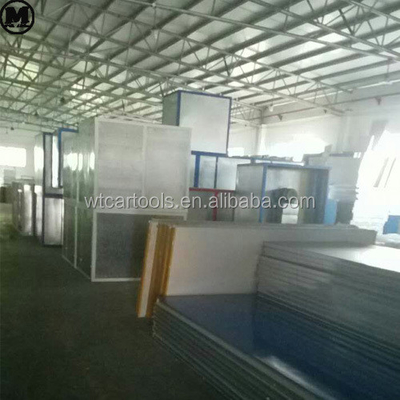

European type diesel car paint booth with turbo fan

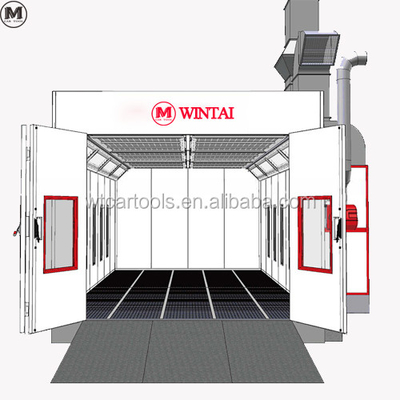

This European type diesel spray booth with turbo fan is widely used in automotive, furniture and other industry. It creats a perfect dustless space for painting and baking cars, furniture and other products. It uses turbo fans as intake & exhaust fans, easy to maintain. It uses active carbon filter so the final emission air is more clean.It uses 3 ROWS OF GRIDS and 2 ROWS of checkered plates so the air can be recycled more quickly.

Main Features

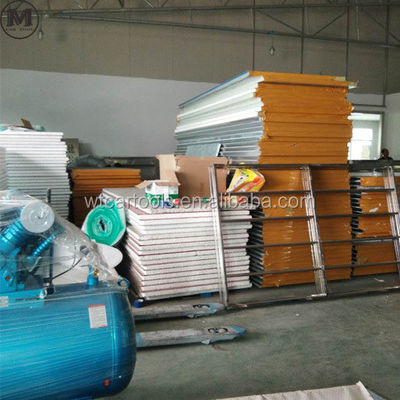

1) Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

2) Basement: Galvanized steel sheet and square steel pipe construction. 3 rows of grids with floor filter & 2 rows of checkered plates. Full ramps.

3)Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2600(h). 1 pc of emergency door. Watching window with aluminum frame.

4)Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. BELIMO 20N electric damper.

5)Burner: Italy RielloRG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60。C). Max. temperature

at 80。C. Fuel consumption is 5-6kg/vehicle.

6) Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

7) Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps.1200 Lux.

8) Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

9) Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.

Model  External Size (m)  Internal Size (m)  Air Flow (m3/h)  Air Speed (m/s) Power (kw) Vehicle Suited

WW0900 7x5.45x3.35    6.9x3.9x2.65       25000                0.3-0.5                  15         Saloon Car Jeep
