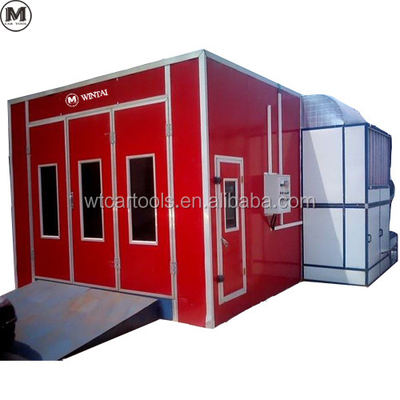

LED Light SUV Car Spray Booth 6900*3900*2650mm with Fiberglass Exhaust Filter

Product Application

Cheap car spray booth oven Guangzhou

This Economic and high quality car painting booth with centrifugal fan is widely used in automotive, furniture and other industry. It creats a perfect dustless space for painting and baking cars, furniture and other products. It uses centrifugal fans as intake & exhaust fans. It uses 3 ROWS OF GRIDS and 2 ROWS of checkered plates so the air can be recycled more quickly. LPG/GAS/diesel burner or infrared lamps are optional.

Main Features

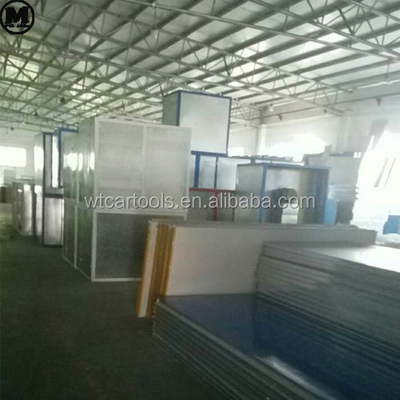

1) Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.
2) Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

3) Door: 3 pcs of front doors with aluminum frame Size: 3000(w) x 2600(h). 1 pc of emergency door.

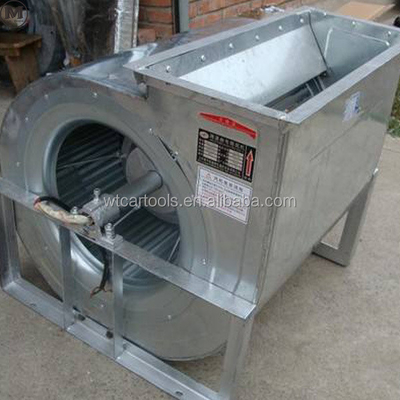

4) Air Circulation System: 2x3kw intake fan,1x4kw exhaust fan. BELIMO 20N electric damper.

5) Burner: Italy Riello G10 diesel burner, 100000Kcal/h. The heating time 7-9min(20-60.C). Max. temperature
at 80.C. Fuel consumption is 4-5kg/vehicle.

6)Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

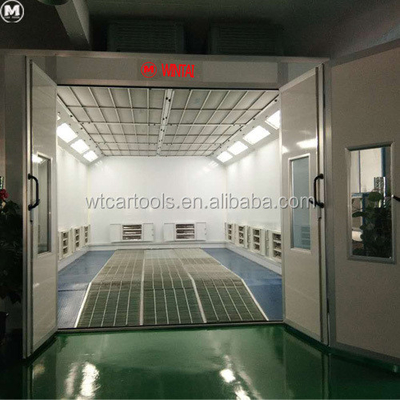

7) Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 1200 Lux.

8) Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

9) Pollution Control System: Multi-layer fiberglass filter.
Model       External Size (m)    Internal Size (m)   Air Flow (m3/h) Air Speed (m/s) Power (kw) Vehicle Suited
WW0602    7x5.43x3.35        6.9x3.9x2.65         20000               0.3-0.5                     12        Saloon Car Jeep
