Home /Products/Car Spray Booth/220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm

220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm

1
MOQ
$8,318.00/sets >=1 sets
Price
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths
Power: 16KW, 14KW
External Size: 7020*5300*3400mm, 7020*5300*3400mm
Internal Size: 6900*4000*2700mm, 6900*3900*2700mm
Voltage: 220V/380V
Disc Dia.: NM
No Load Speed: NM
Warranty: 1 Year
Color: Red,white, Orange,blue
Wall: 50mm
Heating System: Diesel/gas/LPG Burner
Air Flow: 24000
Air Speed: 0.3-0.5
Vehicle Suited: Saloon Car Jeep
Highlight:

Diesel Burner Car Spray Booth

,

220V Car Spray Booth

,

Diesel Burner Car Spray Paint Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: ce
Model Number: 8006
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 sets/month
Product Description
220V 380V CE Approved Diesel Burner Car Spray Booth with Internal Size 6900*4000*2700mm
Product Description
CE approved painting booth High-efficient diesel burner car spray booth
Product Application

This high quality diesel/infrared car spray booth with turbo fan is widely used in automotive, furniture and other industry.
It creats a perfect dustless space for painting and baking cars, furniture and other products. It uses centrifugal fans as intake & exhaust fans. It uses 3 ROWS OF GRIDS and 2 ROWS of checkered plates so the air can be recycled more quickly. LPG/GAS/diesel burner or infrared lamps are optional.

Main Features Configuration:
1)Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.

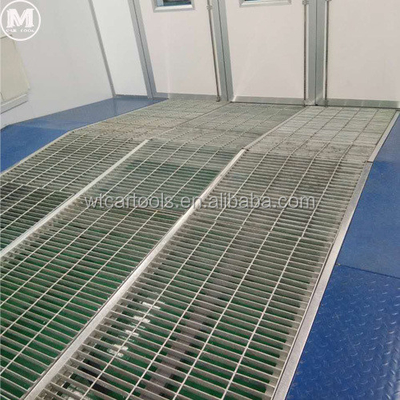

2) Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

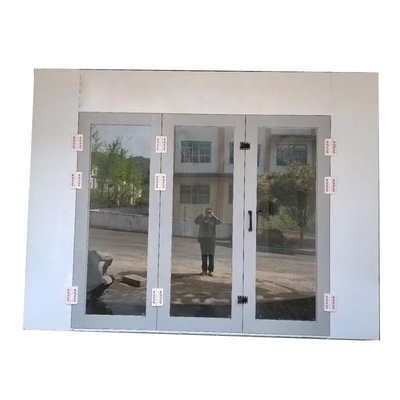

3)Door: 3 pcs of front doors with aluminum frame. Size: 3000(w) x 2650(h). 1 pc of emergency door.

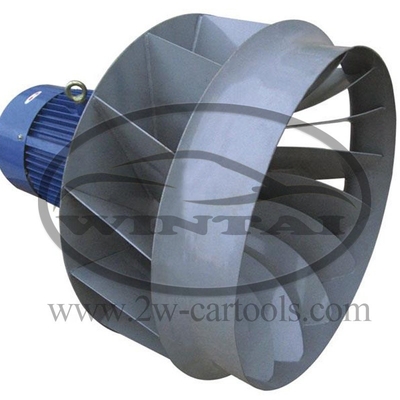

4)Air Circulation System: 1x7.5kw turbo fan as intake fan, 1x5.5kw turbo fan as exhaust fan. BELIMO 20N electric damper.
5)Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kg/vehicle.
6) Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. 7)Lighting System: Ceiling light has 32 pcs of 18w LED lamps. Side light has 16 pcs of 18w LED lamps. 900 Lux.
8)Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture
granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
9)Pollution Control System: Multi-layer fiberglass filter.
External Size (m) 7.02x5.3x3.40
Internal Size (m) 6.9x4.0x2.7
Air Volume 24000
Air Flow (m3/h) 0.3-0.5
Power (kw) 14
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 0
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 1
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 2
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 3
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 4
Specification
item
value
Type
Spray Booths
Power
16KW
External Size
7000*5450*3350mm
Internal Size
6900*3900*2650mm
Voltage
220V/380V
Disc Dia.
NM
No Load Speed
NM
Place of Origin
China

Guangdong
Brand Name
WINTAI
Model Number
WW0802
Warranty
1 year
Color
red,white, orange,blue
Wall
50mm
Heating System
diesel/gas/LPG burner
External Size
7000*5450*3350mm
Internal Size
6900*3900*2650mm
Air Flow
24000
Air Speed
0.3-0.5
Power
16KW
Vehicle Suited
Saloon Car Jeep
Certification
ce
Packing & Delivery
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 5
220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm 6
standard export package
