NM Disc Dia. European Automotive Car Paint Booth with LED Lights and CE Approval

$9,280.00/sets >=1 sets
Price
NM Disc Dia. European Automotive Car Paint Booth with LED Lights and CE Approval
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths
Power: 15KW
External Size: 7000*5350*3400mm(L*W*H)
Internal Size: 6900*3900*2650mm
Voltage: 110V/220V/ 380V
Disc Dia.: NM
No Load Speed: NM
Warranty: 1 Year
Color: Red,orange,white,blue
Heating Source: Diesel,gas,LPG,electricity
Suitable Vehicle: Car,SUV,saloon Car
Intake Fan: 7.5KW Turbo Fan
Exhaust Fan: 5.5KW Turbo Fan
Light: LED
Basement: 300mm
Ceiling Filter: F5
Floor Filter: Fiberglass
Exhaust Filter: Active Carbon Filter
Highlight:

LED Lights Car Paint Booth

,

CE Approval Car Paint Booth

,

European Automotive Car Paint Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Model Number: ww0900
Payment & Shipping Terms
Product Description
NM Disc Dia. European Automotive Car Paint Booth with LED Lights and CE Approval
Product Overview
This European type diesel spray booth with turbo fan is widely used in automotive, furniture and other industries. It creates a perfect dust-free space for painting and baking cars, furniture, and other products. The system uses turbo fans as intake & exhaust fans for easy maintenance and features active carbon filtration for cleaner emission air.

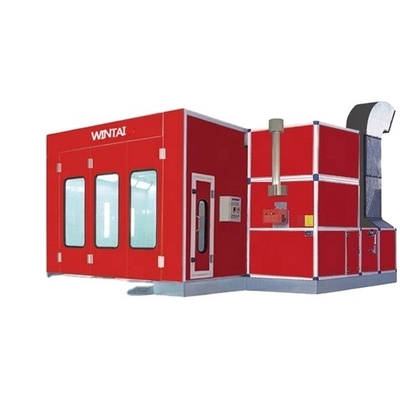

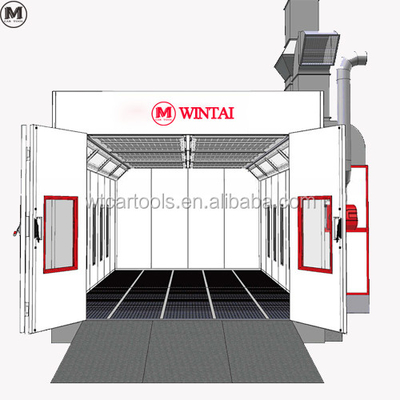

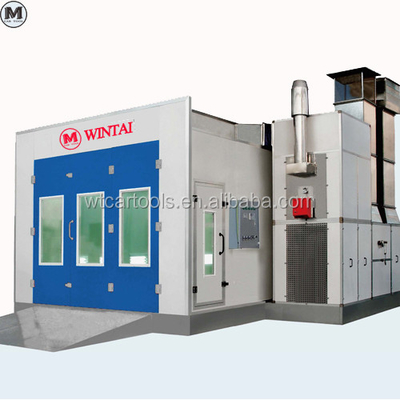

European automotive car paint booth interior view Car paint booth exterior with LED lighting Paint booth air filtration system Automotive spray booth operational view
Main Features
  • Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness with 0.476mm colorful steel skin boards. Galvanized steel roof panel.
  • Basement: Galvanized steel sheet and square steel pipe construction with 3 rows of grids with floor filter & 2 rows of checkered plates. Full ramps included.
  • Door: 3 luxury front doors with 0.8mm thickness colorful steel skin (3000mm W x 2600mm H). 1 emergency door with watching window and aluminum frame.
  • Air Circulation System: 1 x 7.5kW direct drive intake fan, 1 x 5.5kW direct drive exhaust fan. BELIMO 20N electric damper.

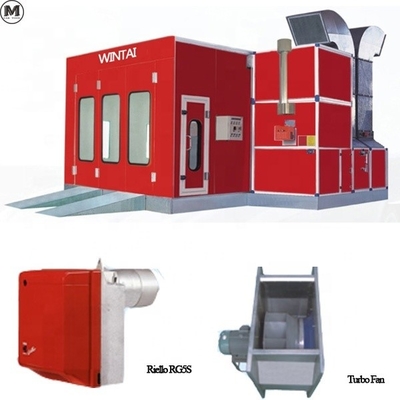

  • Burner: Italy Riello RG5S diesel burner, 260,000 Kcal/h. Heating time 4-5 minutes (20-60°C). Maximum temperature 80°C. Fuel consumption 5-6kg/vehicle.
  • Heat Exchanger: Made of stainless steel with 85% heat exchange rate.
  • Lighting System: Ceiling light with 32 pcs of 16W LED lamps. Side light with 16 pcs of 16W LED lamps. 1200 Lux illumination.
  • Air Purification: Dual filtering structure with M pattern nonwoven primary filter bags (captures granules >10μm) and ceiling filter (captures granules >5μm). Air cleanliness reaches 98%.
  • Pollution Control System: Special M pattern Active Carbon pocket Filter System.
Technical Specifications
Model External Size (m) Internal Size (m) Air Flow (m³/h) Air Speed (m/s) Power (kW) Vehicle Suited
WW0900 7 x 5.45 x 3.4 6.9 x 3.9 x 2.7 25,000 0.3-0.5 15 Saloon Car, Jeep
Packaging & Delivery
Wallboard: EPS standard, rockwool optional
Package: Bubble paper protection
Packaging Details: Each part is labelled by part number for easy identification from packing list

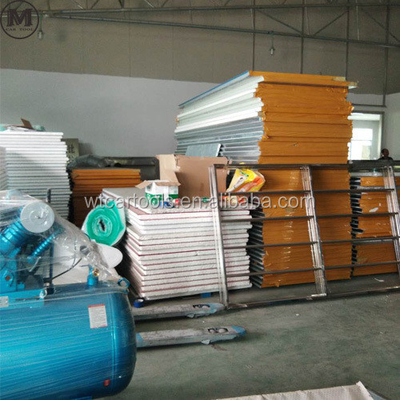

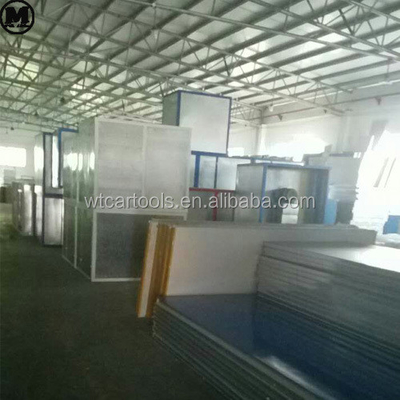

Paint booth packaging and shipping preparation
