Internal Size 15000*5000*5000mm Spray Baking Booth for Truck/Bus Painting Requirements

$25,800.00/sets >=1 sets
Price
Internal Size 15000*5000*5000mm Spray Baking Booth for Truck/Bus Painting Requirements
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths, Spray Booths
Power: 39KW, 47KW
External Size: 15150*6700*5500mm
Internal Size: 15000*5000*5000mm
Voltage: 110V/220V/ 380V
Disc Dia.: NM
No Load Speed: NM, NM
Warranty: 1 Year
Color: Red,Orange,White,Blue
Light: LED
Basement: Pits Or No Basement
Ceiling Filter: F5/EU5/600G
Exhaust Fan: 2 Sets Of 11KW Fans
Suitable Vehicle: Bus,truck
Highlight:

15000*5000*5000mm Spray Baking Booth

,

Truck Spray Baking Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Model Number: WT15000, WT15000
Payment & Shipping Terms
Product Description
Internal Size 15000×5000×5000mm Spray Baking Booth for Truck/Bus Painting Requirements
Product Overview
This industrial spray baking booth is specifically designed for truck and bus painting applications, featuring advanced filtration systems, efficient heating, and comprehensive lighting for optimal painting conditions.
Key Features
  • Wallboard: 75mm thick rock wool wallboard with excellent heat preservation performance; HDG (hot dip galvanized) colorful steel skin boards; High quality galvanized steel roof panel
  • Doors: 4 front doors with aluminum bordure (4000×4500mm W×H); 2 emergency doors (800×1800mm W×H each)
  • Intake System: 2 groups of 11kW European type turbo fans; BELIMO 20N electric damper; Siemens technology production; Air flow: 60,000m³/h per group
  • Exhaust System: 2 groups of 11kW European type turbo fans; Air flow: 60,000m³/h per group
  • Filtration: Multi-layer filtering structure with primary filter capturing granules >10μm, ceiling filter capturing granules >5μm; Air cleanliness reaches 98%
  • Burner: Original Italy RIELLO RG5S diesel burner; 260,000Kcal/h per unit (2 units total); Maximum temperature: 80°C
  • Heat Exchanger: 2 sets made of 1.5mm thickness stainless steel; Heat exchange rate: 85%
  • LED Lighting: 144 pieces of 18W LED lamps total (ceiling, side, and bottom wall); 900 Lux illumination
  • Control System: Microcomputer control system with cabinet type design for easy operation and maintenance
Optional Features
  • Customizable sizes available
  • 3D lift option
  • Air exhaust from two sides of spray room or pit options
  • Drive through type door, rolling door, and folding door options
  • Air generation system on top of spray room option
Dimensions & Power
External Size: 15150×6700×5500mm
Internal Size: 15000×5000×5000mm
Front Door: 4000×4500mm (W×H)
Total Power: 47kW
Product Images

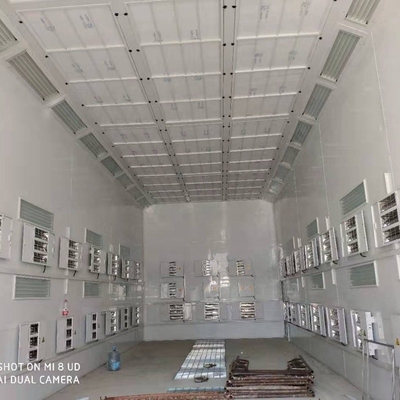

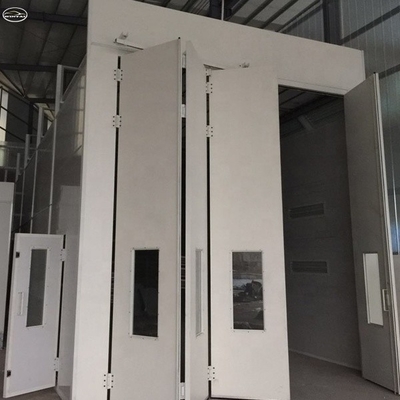

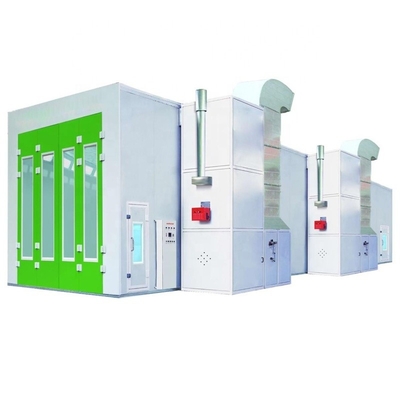

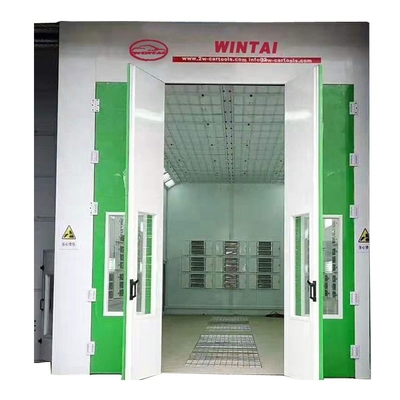

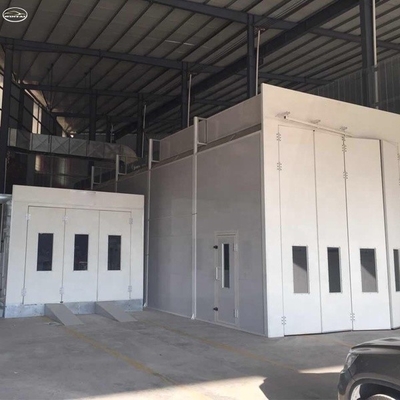

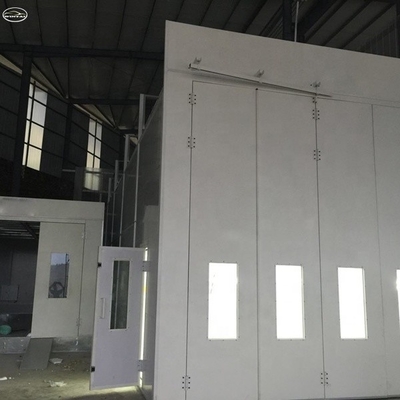

Spray baking booth exterior view Spray booth interior lighting system Spray booth control system and components Spray booth filtration system detail Spray booth door mechanism Spray booth overall installation view
Technical Specifications
Specification Value
Type Spray Booths
Power 47KW
External Size 15150×6700×5500mm
Internal Size 15000×5000×5000mm
Voltage 110V/220V/380V
Place of Origin China, Guangdong
Brand Name WINTAI
Model Number WT15000
Warranty 1 year
Color Red, Orange, White, Blue
Light LED
Basement Pits or no basement
Ceiling Filter F5/EU5/600G
Exhaust Fan 2 sets of 11KW fans
Suitable Vehicle Bus, Truck
Packaging & Delivery
Standard export package ensuring safe transportation and delivery.
Spray booth packaging for export Spray booth delivery preparation
