380V/220V/50HZ or 60HZ Luxury Car Spray Booth Painting Room with No Load Speed nm

$7,998.00/sets >=1 sets
Price
380V/220V/50HZ or 60HZ Luxury Car Spray Booth Painting Room with No Load Speed nm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths
Power: 12KW
External Size: 7000x5560x3500 Mm
Internal Size: 7000x4000x2700mm
Voltage: 380V/220V/50HZ Or 60HZ
Disc Dia.: Nm
No Load Speed: Nm
Warranty: 1 Year
Intake Fan: 20000m3 Per H
Exhausted Fan: 20000m3 Per H
Burner: G20
Highlight:

Luxury Car Spray Booth

,

220V Car Spray Booth

,

50HZ Car Spray Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: wintai
Model Number: WW0802
Payment & Shipping Terms
Product Description
380V/220V/50HZ or 60HZ Luxury Car Spray Booth Painting Room
Product Overview
Guangzhou manufacturer luxury car spray booth painting room designed for professional automotive finishing applications.
Key Dimensions: External Size: 7.02x5.3x3.4m | Internal Size: 6.9x4.0x2.7m
Air Performance: Air Flow: 20000 m³/h | Air Speed: 0.25 m/s (no load)
Power: 12KW | Vehicle Compatibility: Saloon Car, Jeep
Technical Features
  • Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness with colorful steel board outside, galvanized steel roof panel
  • Basement: Galvanized steel sheet and square steel pipe construction with 2 rows of grids with floor filter & 3 rows of checkered plates, including 2 ramps

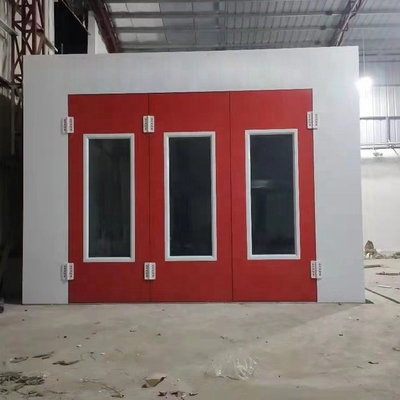

  • Door System: 3 luxury sheet metal front doors (3000mm W x 2650mm H) plus 1 emergency door

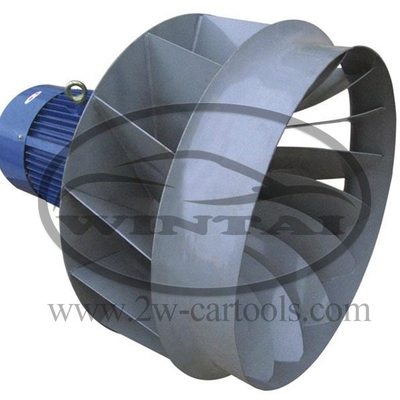

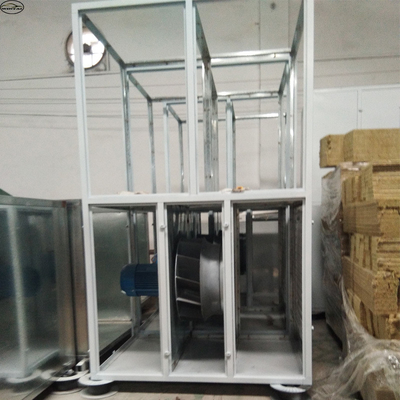

  • Air Circulation: 1x 5.5KW European type intake fan, 1x 5.5KW European type exhaust fan with BELIMO 20N electric damper
  • Burner: Italy Riello G20 diesel burner with maximum temperature at 80°C
  • Heat Exchanger: Stainless steel construction with 85% heat exchange rate
  • Lighting: 24x 18w LED ceiling lamps with optional side lighting
  • Air Purification: Dual filtering structure - primary filter captures granules >10μm, ceiling filter captures granules >5μm, achieving 98% air cleanliness
  • Pollution Control: Multi-layer fiberglass filter system

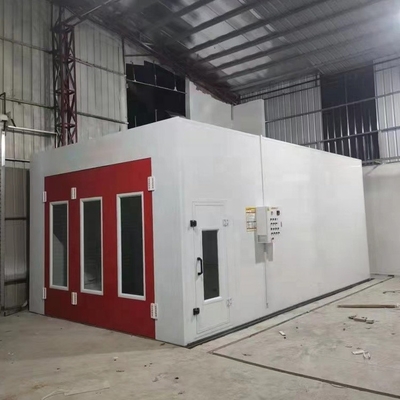

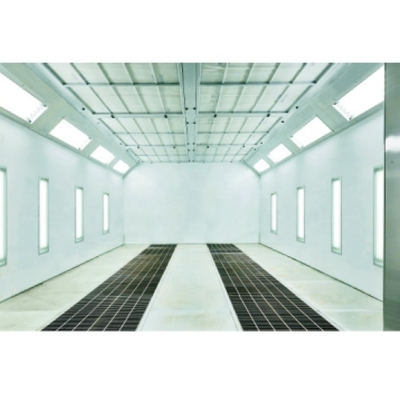

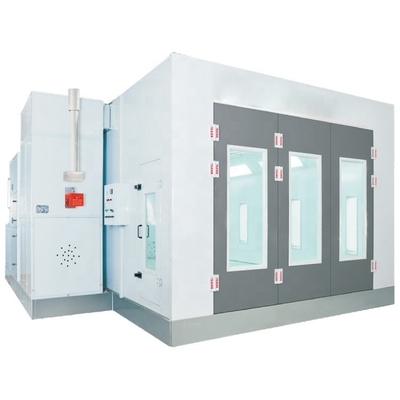

Luxury car spray booth interior view Spray booth external structure Spray booth lighting system Spray booth air filtration system Spray booth door mechanism Spray booth control panel
Technical Specifications
Type Spray Booths
Power 12KW
External Size 7000x5560x3500 mm
Internal Size 7000x4000x2700 mm
Voltage 380V/220V/50HZ or 60HZ
Place of Origin China, Guangdong
Brand Name Wintai
Model Number WW0802
Warranty 1 year
Intake Fan 20000 m³ per H
Exhaust Fan 20000 m³ per H
Burner G20
Packaging & Delivery
Secure carton packaging ensuring safe transportation and delivery.
Spray booth packaging overview Spray booth delivery preparation
