Home /Products/Car Spray Booth/External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room

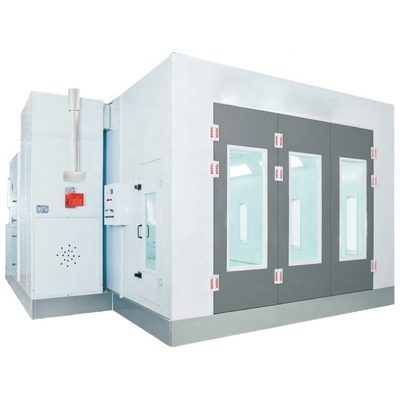

External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room

$9,480.00/sets >=1 sets
Price
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths
Power: 15kw
External Size: 7x5.45x3.4
Internal Size: 6.9x3.9x2.7
Voltage: NM
Disc Dia.: Nm
No Load Speed: 0.3-0.5
Warranty: 1year
Model: WW0900
External Size (m): 7x5.45x3.35
Internal Size (m): 6.9x3.9x2.65
Air Flow (m 3 /h): 25000
Air Speed (m/s): 0.3-0.5
Power (kw): 15
Vehicle Suited: Saloon Car Jeep
Door: 3 Pcs Of Luxury Front Doors
Burner: Italy RielloRG5S
Max. Temperature: 80 C
Highlight:

CE Approved Car Spray Booth

,

3.35m Car Spray Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Wintai
Model Number: WW0900
Payment & Shipping Terms
Product Description
Product Description
High Quality Car Spray Booth Baking Oven auto paint room

Configuration:

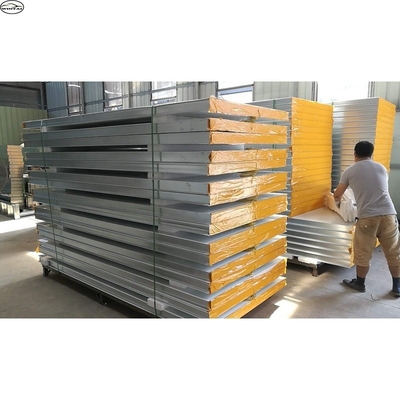

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness.
Galvanized steel roof panel.

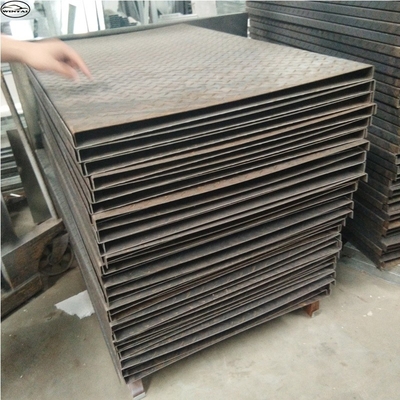

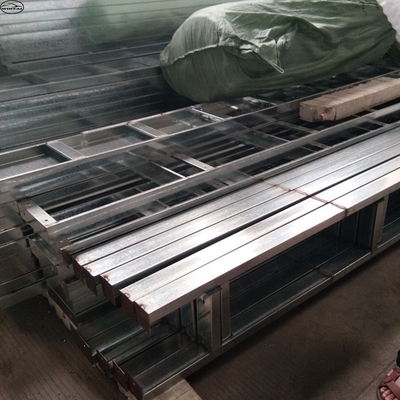

2.Basement: Galvanized steel sheet and square steel pipe construction. 3 rows of grids with floor filter & 2 rows of checkered
plates. Full ramps.
3.Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin Size: 3000(w) x 2650(h). 1 pc of emergency door. Watching window with aluminum frame.

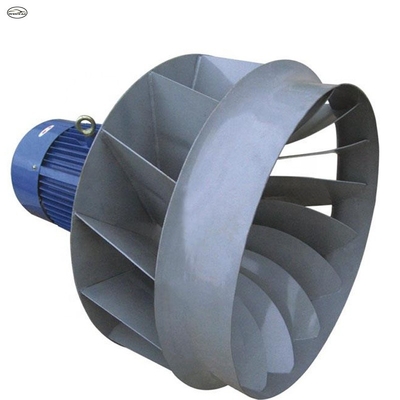

4.Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x7.5kw direct drive exhaust fan. BELIMO 20N electric damper.
5. Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min
(20-60 C). Max. temperature at 80 C. Fuel consumption is 5-6kg/vehicle.
6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
7.Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps.1200 Lux.
8. Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 0
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 1
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 2
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 3
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 4
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 5
Specification
item
value
Type
Spray Booths
Power
15kw
External Size
7x5.45x3.4
Internal Size
6.9x3.9x2.7
Voltage
NM
Disc Dia.
nm
No Load Speed
0.3-0.5
Place of Origin
China
Guangdong
Brand Name
Wintai
Model Number
WW0900
Warranty
1year
Model
WW0900
External Size (m)
7x5.45x3.35
Internal Size (m)
6.9x3.9x2.65
Air Flow (m 3 /h)
25000
Air Speed (m/s)
0.3-0.5
Power (kw)
15
Vehicle Suited
Saloon Car Jeep
Door
3 pcs of luxury front doors
Burner
Italy RielloRG5S
Max. temperature
80 C
Packing & Delivery
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 6
External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room 7
Standard Export Packages
