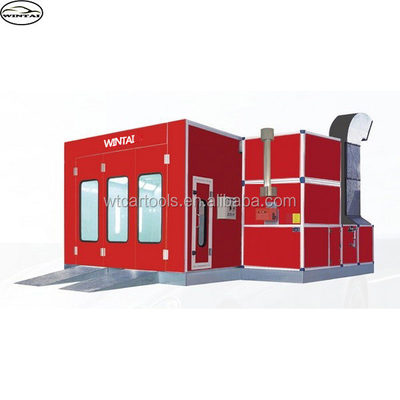

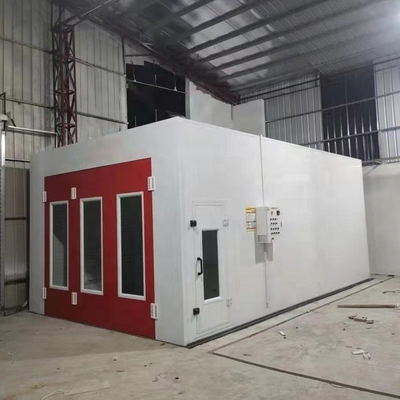

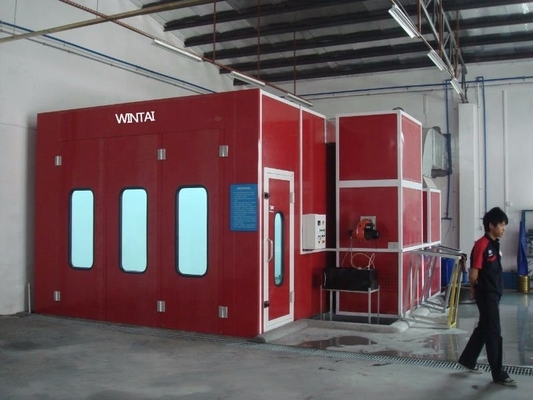

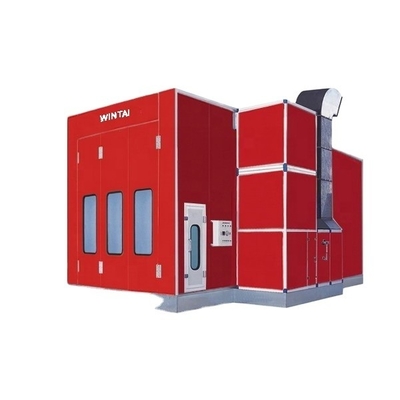

European Type Air Exhaust Fan and LED Lighting System Installed in Car Painting Booth

Model Specifications:

• External Size: 7x5.3x3.4m
• Internal Size: 6.9x3.9x2.7m
• Air Flow: 18000 m³/h
• Air Speed: 0.25 m/s (no load)
• Power: 9KW
• Vehicle Suited: Saloon Car, Jeep

• Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness. Colorful steel board outside, galvanized steel as roof panel.
• Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pieces of ramps.

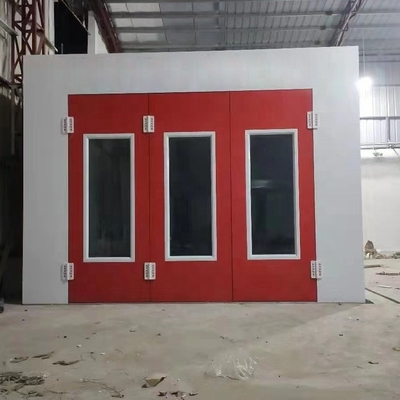

• Door: 3 pieces of luxury sheet metal front doors (Size: 3000(w) x 2650(h)). 1 piece of emergency door.
• Air Circulation System: 1pc of 4KW European type intake fan, 1pc of 4KW European type exhaust fan. BELIMO 20N electric damper.
• Burner: Italy Riello G10 diesel burner, Max. temperature at 80°C.
• Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
• Lighting System: Ceiling light has 24 pcs of 18w LED lamps. Side light is optional.
• Air Purification: Dual filtering structure. The primary filter captures granules larger than 10μm. Ceiling filter captures granules bigger than 5μm. Air cleanliness reaches 98%.
• Pollution Control System: Multi-layer fiberglass filter.

Standard export package
