Economic Car Spray Booth with Internal Size 6900*3900*2650mm and No Load Speed NM

$7,598.00/sets >=1 sets
Price
Economic Car Spray Booth with Internal Size 6900*3900*2650mm and No Load Speed NM
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths
Power: 12KW
External Size: 7000*5350*3400mm(L*W*H)
Internal Size: 6900*3900*2650mm
Voltage: 110V/220V/ 380V
Disc Dia.: NM
No Load Speed: NM
Warranty: 1 Year
Color: Red,orange,white,blue
Heating Source: Diesel,gas,LPG,electricity
Suitable Vehicle: Car,SUV,saloon Car
Intake Fan: 2X3KW Centrifugal Fan
Exhaust Fan: 1x4KW Centrifugal Fan
Light: LED
Basement: 300mm
Ceiling Filter: F5/EU5/600G
Floor Filter: Fiberglass
Exhaust Filter: Fiberglass
Highlight:

Internal Size Car Spray Booth

,

6900*3900*2650mm Car Spray Booth

,

NM Car Spray Booth
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Model Number: WW0602
Payment & Shipping Terms
Product Description
Economic Car Spray Booth with Internal Size 6900*3900*2650mm
Product Overview
This economic and high-quality car painting booth with centrifugal fan is widely used in automotive, furniture, and other industries. It creates a perfect dust-free space for painting and baking cars, furniture, and other products. The system uses centrifugal fans as intake and exhaust fans, featuring 3 rows of grids and 2 rows of checkered plates for faster air recycling. Optional heating sources include LPG, gas, diesel burners, or infrared lamps.

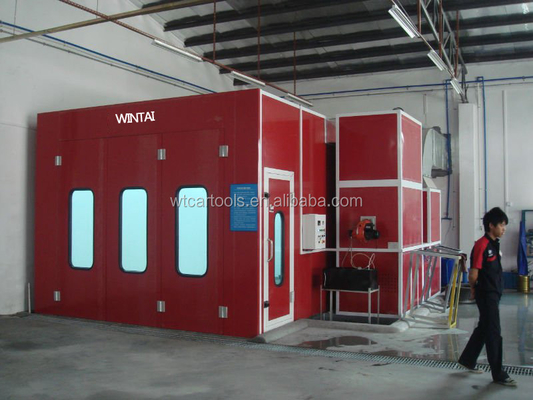

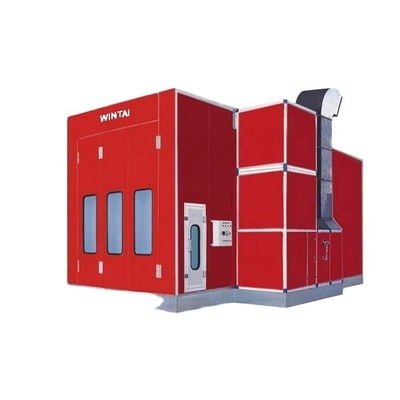

Car spray booth interior view Spray booth external structure Spray booth lighting system Spray booth air circulation system
Main Features
  • Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness with galvanized steel roof panel
  • Basement: Galvanized steel sheet and square steel pipe construction with 2 rows of grids, floor filter, 3 rows of checkered plates, and 2 ramps
  • Door: 3 front doors with aluminum frame (3000mm width x 2600mm height) and 1 emergency door
  • Air Circulation System: 2x3kW intake fans, 1x4kW exhaust fan with BELIMO 20N electric damper
  • Burner: Italy Riello G10 diesel burner, 100,000 Kcal/h with heating time 7-9 minutes (20-60°C), maximum temperature 80°C, fuel consumption 4-5kg/vehicle
  • Heat Exchanger: Stainless steel construction with 85% heat exchange rate
  • Lighting System: 24 pieces of 16W LED ceiling lamps providing 1200 Lux
  • Air Purification: Dual filtering structure with primary filter capturing granules larger than 10μm and ceiling filter capturing granules bigger than 5μm, achieving 98% air cleanliness
  • Pollution Control System: Multi-layer fiberglass filter
Technical Specifications
Model External Size (m) Internal Size (m) Air Flow (m³/h) Air Speed (m/s) Power (kW) Vehicle Suited
WW0602 7x5.43x3.35 6.9x3.9x2.65 20000 0.3-0.5 12 Saloon Car, Jeep
Packaging & Delivery

Packaging Materials:

  • Wallboard: EPS (rockwool optional)
  • Package: Bubble paper

Packaging Details: Each part is labeled by part number which you can find from packing list

Spray booth packaging and shipping
