39KW CE Approved Industrial Spray Booth Oven for Bus Truck Painting Room 15000mm

1
MOQ
$30,000.00/sets >=1 sets
Price
39KW CE Approved Industrial Spray Booth Oven for Bus Truck Painting Room 15000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Spray Booths, Spray Booths
Power: 39KW, 47KW
External Size: 15150*6700*5500mm
Internal Size: 15000*5000*5000mm
Voltage: 110V/220V/ 380V
Disc Dia.: NM
No Load Speed: NM
Warranty: 1 Year
Color: Red,Orange,White,Blue
Light: LED
Basement: Pits Or No Basement
Ceiling Filter: F5/EU5/600G
Exhaust Fan: 2 Sets Of 11KW Fans
Suitable Vehicle: Bus,truck
Highlight:

15000mm Industrial Spray Booth Oven
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: WT15000
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 sets/month
Product Description
39KW CE Approved Industrial Spray Booth Oven for Bus Truck Painting Room 15000mm

CE approved industrial spray booth oven for bus and truck painting room - 15000mm

Custom sizes available upon request

Below are the specifications for the 15m spray booth oven:

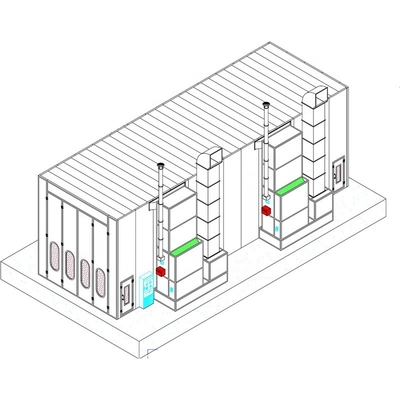

Key Components & Specifications
  • Wallboard: Rock wool wallboard, 75mm thickness with excellent heat preservation performance; Colorful steel skin boards with HDG (hot dip galvanizing); High quality galvanized steel roof panel

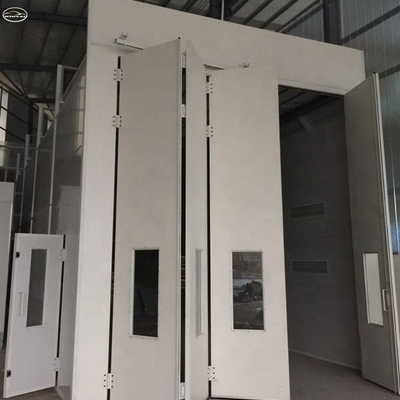

  • Door: 4 front doors with aluminum bordure (4000×4500mm W×H each); 2 emergency doors (800×1800mm W×H each)
  • Intake Fan (2 groups): 1 set of 11kW European type turbo fan per group (total 2 sets); BELIMO 20N electric damper; Siemens technology production; Large air volume and low noise; Air flow: 60,000m³/h
  • Exhaust Fan (2 groups): 1 set of 11kW European type turbo fan per group (total 2 sets); Air flow: 60,000m³/h
  • Filtering: Multilayer filtering structure; Primary filter captures granules larger than 10μm; Ceiling filter captures granules bigger than 5μm; Green filter on basement plenum and exhaust fan filters paint and dust emission; Air cleanliness reaches 98%
  • Burner: Original Italy RIELLO RG5S diesel burner; 260,000Kcal/h per unit (total 2 units, 520,000Kcal/h); Maximum temperature: 80°C
  • Heat Exchanger (2 sets): Made of 1.5mm thickness stainless steel; Features more heat dissipating surface, better heat exchange and burner efficiency; Heat exchange rate: 85%
  • LED Lighting System: Ceiling lights: 20 units × 4 pieces of 18w LED lamps; Side light: 8 units × 4 pieces of 18w LED lamps; Bottom wall: 8 units × 4 pieces of 18w LED lamps; Total: 144 pieces of 18w LED lamps; 900 Lux
  • Control System: Microcomputer control system; Cabinet type design for easy control and maintenance
Additional Options & Remarks

Remark:

  • Custom sizes available
  • 3D lift optional
  • Air exhaust from two sides of spray room or pit optional
  • Drive through type door, rolling door and folding door optional
  • Air generation system on the top of spray room optional
Technical Specifications

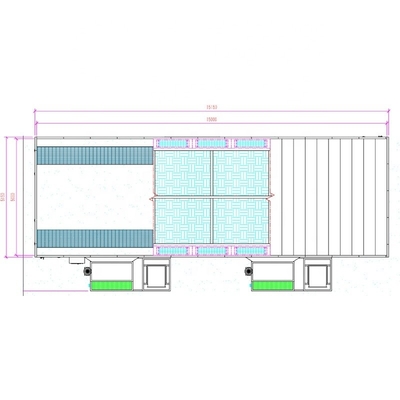

External Size (mm) 15150 × 6700 × 5500 Front Door (mm) 4000(w) × 4500(h)
Internal Size (mm) 15000 × 5000 × 5000 Total Power (kW) 47
Product Images

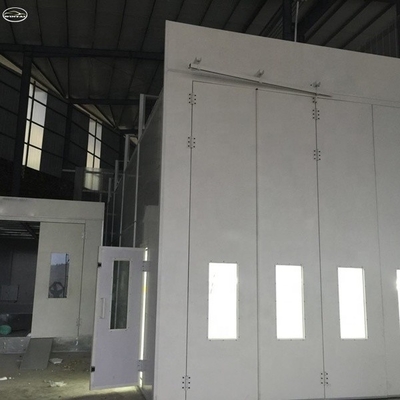

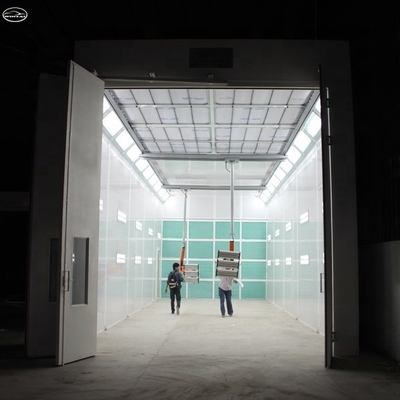

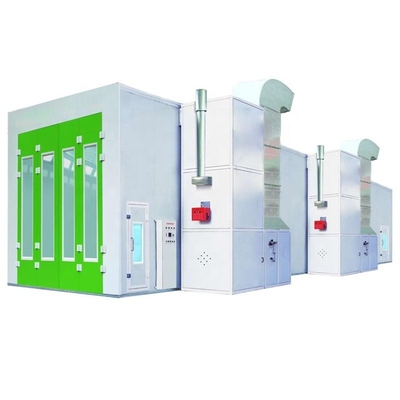

Industrial spray booth oven for bus and truck painting
More Application Cases
Spray booth oven installation case 1 Spray booth oven installation case 2 Spray booth oven installation case 3
