Home /Products/Headlight Tester/Steel NHD-8101 Headlight Tester With Laser Alignment Function 59cm Width

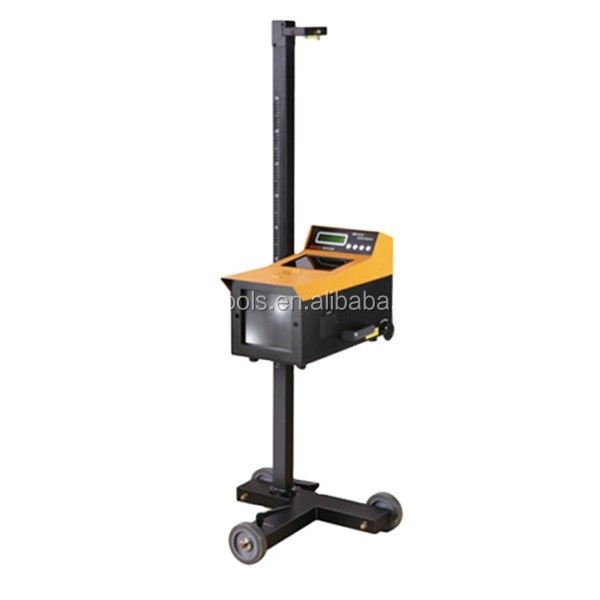

Steel NHD-8101 Headlight Tester With Laser Alignment Function 59cm Width

2 sets
MOQ
$1,300.00/sets >=2 sets
Price
Steel NHD-8101 Headlight Tester With Laser Alignment Function 59cm Width
Features Gallery Product Description Request A Quote
Features
Specifications
Model: 124 Spider (348_)
Year: 2016-
Type: Headlight, Headlight
Voltage: Voltage
Car Fitment: Abarth
Combination: SDK
Warranty: 12 Months
Electronic: No
Item Width: 59cm
Material Type: Steel And Others
Item Length: 60cm
Item Weight: 30kg
Software Version: Nha
Item Height: 160cm
Item Type: Mechanical Testers
Highlight:

Steel Headlight Tester

,

NHD-8101 Headlight Tester

,

Laser Alignment Headlight Beam Tester
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: NANHUA
Certification: CE
Model Number: NHD-8101
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Excellent NHD-8101 headlight tester with laser alignment function:

NHD-8101 type headlamps detector (hereinafter referred to as the instruments) suitable for checking the automobile, motorcycle, the motor vehicle headlamps on the luminous intensity, light high and volume of offset.

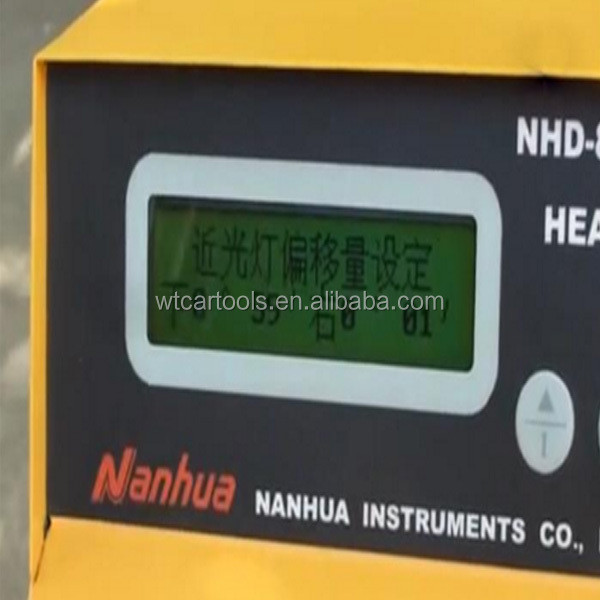

1. Have Chinese liquid crystal display interface, standard RS-232-C communication interface and simulation data output interface, and optional low power consumption mode with batteries work.
2. Rapid decomposition and assembly, and convenient to move.
3. Easy operation, measurement accuracy and other advantages, applicable to vehicle testing station and flow of motor vehicle headlamps lines of testing. Also it is suitable for automobile maintenance, maintenance units of vehicle headlamps light ray position adjustment and detection.
4. Has the auxiliary headlamps Angle correction function (instrument signal automatically adjust the headlamp direction).
 Steel NHD-8101 Headlight Tester With Laser Alignment Function 59cm Width 0

Main parameters:

Luminous intensity
0 ~ 60,000cd (100,000cd)

Headlamps center high50 ~ 130cm

Axis offset
Up1º30′ ~ down2º30′ (up20cm/10m ~ down40cm/10m)

Left2º30′ ~ right2º30′ (left40cm/10m ~ right40cm/10m)

Luminous intensity ±12%
Headlamps center high
±1cm

Detection distance50cm
Power supply
AC220V±10%  50Hz±1Hz or 1 9V battery

Size605mm × 1,600mm× 595mm
Weight30Kg
Tag:

Headlight Beam Tester

Car Headlight Tester

Headlight Testing Machine
