Name: NHD-8000 Car Headlight Tester Central Height 130cm 220v 50hz For All Cars
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: NHD-8000
Price: 2.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: 124 Spider (348_)

Year: 2016-

Type: Headlight Tester

Voltage: 220v/50hz

Car Fitment: Abarth

Power: W

Applicable Models: Universal

Combination: SDK

Warranty: 12 Months

Product Name: NHD-8000 Auto Headlight Tester

Central Height Of Headlight: 50cm ~ 130cm

Intensity: 0 ~ 60,000cd

Light Intensity Of High Beam: ±100cd

Measuring Distance: 30 ~ 50cm

Power Consumption: < 0.5W

Dimension: 590mm(W) X 1810mm(H) X 590mm(D)

Environmental Temperature: 5 ~ 40℃

Relative Humidity: Less Than 95%

Atmosphere Pressure: 70.0 ~ 106.0KPa

Port: Shenzhen Guangzhou

Highlight:

NHD-8000 Car Headlight Tester

Central Height 130cm Car Headlight Tester

220v Head Light Tester

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: NANHUA

Certification: CE

Model Number: NHD-8000

Payment & Shipping Terms

Packaging Details: standard export packing

Delivery Time: 15

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 Set/Sets per Week

Gallery

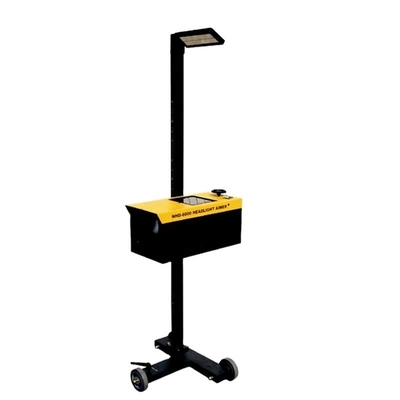

NHD-8000 Car Headlight Tester Central Height 130cm 220v 50hz For All Cars

Product Description

NHD-8000 Auto Headlight Tester
General Features
Measure light intensity of high beam.
Manually observe the central deviation of the optical axis of headlight.
Manually observe the relative position of the turning point of the cut-off light of low beam.
Manual measure the height of headlight.
Main Technical Specifications
Measuring Range
Central Height of Headlight:50cm ~ 130cm Light Intensity: 0 ~ 60,000cd (standard)
0 ~ 120,000cd (maximum) Resolution
Light Intensity of High Beam: ±100cd
Indication Error
Light Intensity of High Beam: ±12%
Measuring Distance: 30 ~ 50cm
Power Consumption: < 0.5W (for complete machine)
Dimension:
590mm(W) × 1810mm(H) × 590mm(D)
Net Weight: 30Kg
Operation Condition
Environmental Temperature: 5 ~ 40℃
Relative Humidity:Less than 95%
Atmosphere Pressure:70.0 ~ 106.0KPa
Power Supply: 1 unit of DC 9V
(Cigar Lighter or Storage Battery can be used).
If AC power is used, an inverter should be applied.
Ground:
The Headlight Aimer and the car should be on the same ground, the horizontal error of the ground should not be more than 1%.
The specifications will be changed without notification.

Specification

item	value
Type	headlight tester
Voltage	220v/50hz
Power	W
Applicable Models	universal
Combination	SDK
Place of Origin	China
	Guangdong
Brand Name	NANHUA
Model Number	NHD-8000
Warranty	12Months
Product name	NHD-8000 Auto Headlight Tester
Central Height of Headlight	50cm ~ 130cm
Intensity	0 ~ 60,000cd
Light Intensity of High Beam	±100cd
Measuring Distance	30 ~ 50cm
Power Consumption	< 0.5W
Dimension	590mm(W) x 1810mm(H) x 590mm(D)
Environmental Temperature	5 ~ 40℃
Relative Humidity	Less than 95%
Atmosphere Pressure	70.0 ~ 106.0KPa

Packing & Delivery

standard export packing
