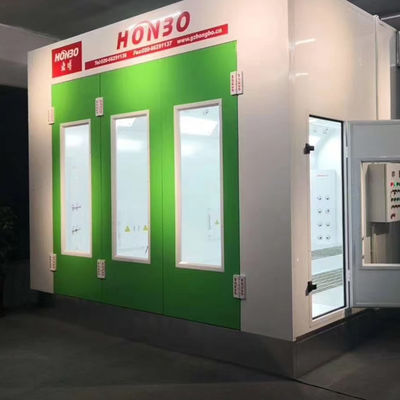

Automotive Paint Spray Booth Diesel Burer Car Spray Paint Booth Automotive Including platform Paint Booth 4T Auto Body Spray Booth

1
MOQ
To be discussed
Price
Automotive Paint Spray Booth Diesel Burer Car Spray Paint Booth Automotive Including platform Paint Booth 4T Auto Body Spray Booth
Features Gallery Product Description Request A Quote
Features
Specifications
External Sizes(m) Internal Sizes(m: 7.02*5.3*3.4
Internal Sizes(m: 6.9*4.0*2.7
Heating System: Lighting Infrared
Capacity(m3/h): 24000
Total Power(kw): 17
Suitable Vehicles: Car
Basement Height: 300MM
Gas Burner Heating: RIELLO Brand G20
Max.Working Temperature: 80℃
Highlight:

diesel burner car spray paint booth

,

4T auto body spray booth

,

automotive paint spray booth with platform
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: TLSJ-8007
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 100
Product Description
Automotive Paint Spray Booth with Diesel Burner
Product Overview
TELASKA TLSJ-8005 Automotive Paint Spray Booth diagram and specifications

Model: TELASKA TLSJ-8005 (STANDARD SPECS)

Technical Specifications
Component Specifications
Basement Structure Steel structure with 2 rows of checked plates and 3 rows of vein boards, loading capacity of 4T
Basement Height 300MM
Booth Cabin Panel High gloss white rock wool, thickness 50mm with edges
Front Door/Safety Door Three offs sheetmetal front door and safety door
Top Lighting 8 sets of LED light, each set 4×18W
Ceiling Filter 6 sets of grill type net supporting installation
Intake Fan 1 unit of European type fan with capacity of 24000m³/h
Exhaust Fan 1 unit of European type fan with capacity of 18000m³/h
Acceleration System 2 sets of acceleration fans, totally 32 pieces of vent nozzles in two top ceiling sides
Load Air Velocity 0.25-0.35 m/s
Exhaust Duct 4 meters of straight duct and 1 piece of 90° bend
Diesel Burner RIELLO brand G20 diesel burner
Max. Working Temperature 80℃
Heating Up Time 5 to 8 minutes
Control System

Control Panel: Made by quality components with functions of overload, overheat and phase lack protection

Functions: Spray, Bake, Lighting and Emergency Stop

Additional Visual Reference

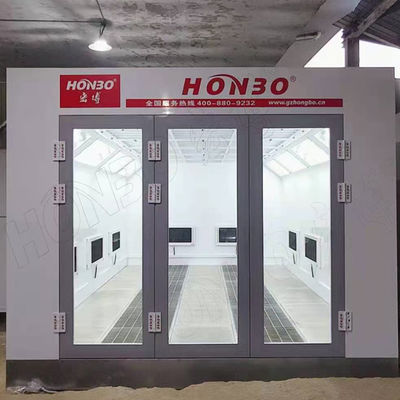

Automotive paint spray booth installation and operation view
