15M Truck Spray Booth Diesel Burer train metro spray booth Bus Spray Booth

1
MOQ
To be discussed
Price
15M Truck Spray Booth Diesel Burer train metro spray booth Bus Spray Booth
Features Gallery Product Description Request A Quote
Features
Specifications
External Sizes(m) Internal Sizes(m: 15.2*6.7*5.5m
Internal Sizes(m: 15*5.0*5.0
Heating System: Halogen Infrared Heating
Capacity(m3/h): 60000
Total Power(kw): 47
Suitable Vehicles: Bus
Max.Working Temperature: 80℃
Highlight:

15M truck spray booth diesel burner

,

train metro spray booth with warranty

,

bus spray booth for professional use
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: TLSJ-8010
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 100
Product Description
15M Truck Spray Booth Diesel Burner - Train Metro Spray Booth - Bus Spray Booth
Product Overview

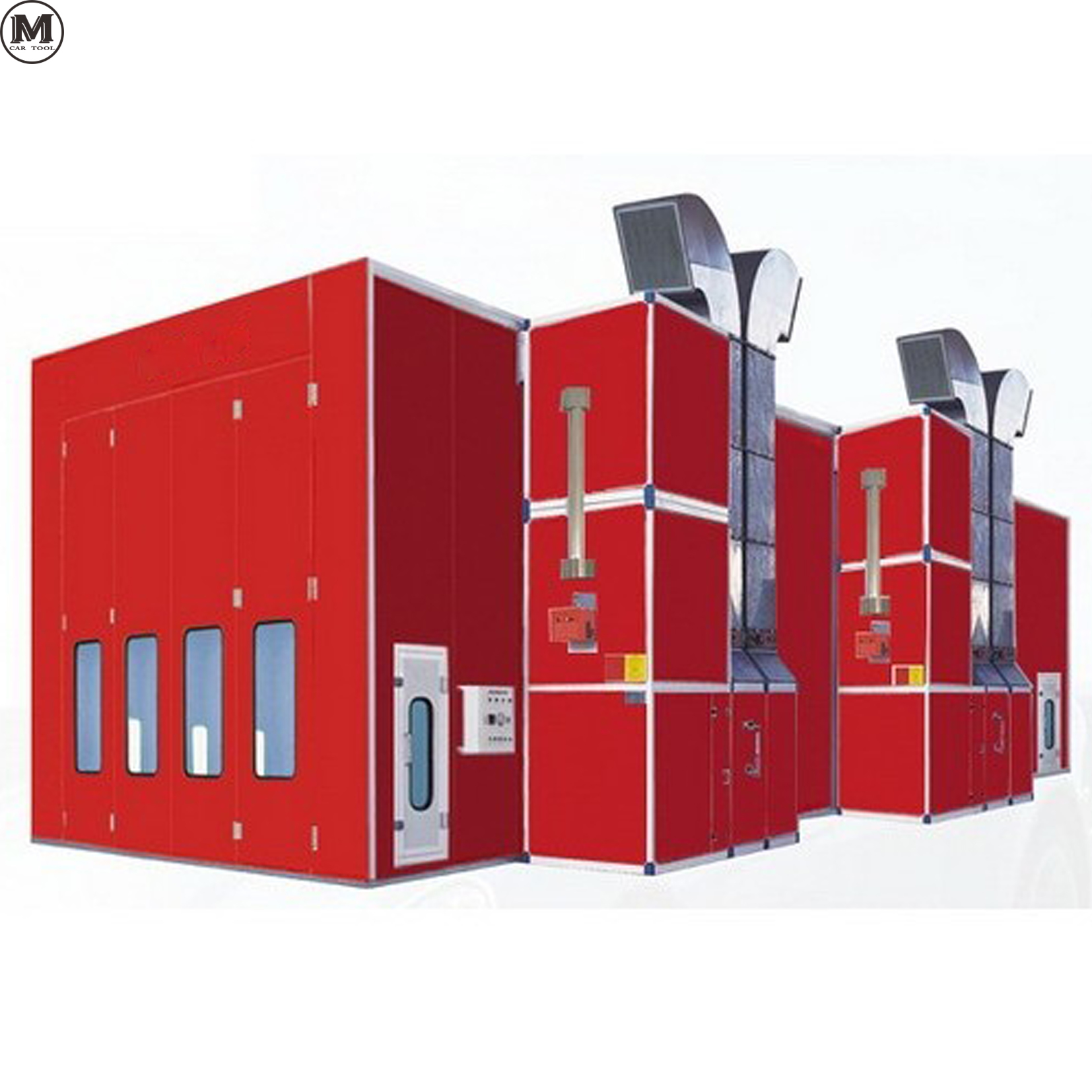

TELASKA TLSJ-8010 Truck Spray Booth Overview
Technical Specifications
Basement Structure
Component Specification
Basement Concrete Platform (prepared by user), 2 rows of reinforced checked plate
Booth Cabin
Component Specification
Panel High gloss white rock wool panel, thickness 75mm with edges
Front Door/Safety Door Four offs sheetmetal front door and 2 pcs of safety door
Lighting System
Location Specification
Top Lighting 20 sets of LED light, each set 4*18W
Middle Lighting 8 sets of LED light, each set 4*18W
Bottom Lighting 8 sets of LED light, each set 4*18W
Filter System
Component Specification
Ceiling Filter 12 sets of grill type net supporting installation
Intake & Exhaust System
Component Specification
Intake Fan 1 unit of European type fan with capacity of 30000m³/h (two sets of intake fans)
Exhaust Fan 1 unit of European type fan with capacity of 30000m³/h (two sets of intake fans)
VCD Damper 2
Load Air Velocity 0.25-0.35 m/s
Exhaust Duct 4 meters of straight duct and 1 piece of 90° bend and 1 piece of 45° bend (2 sets)
Heating System
Component Specification
Heating Method RIELLO brand RG5S diesel burner, cycle heating (2 sets)
Max. Working Temperature 80℃
Constant Temp. Spray Painting Constant Temperature Operation
Control System
Component Specification
Control Panel Made by quality components with the functions of overload, overheat and phase lack protection
Functions Spray, Bake, Lighting and Emergency Stop

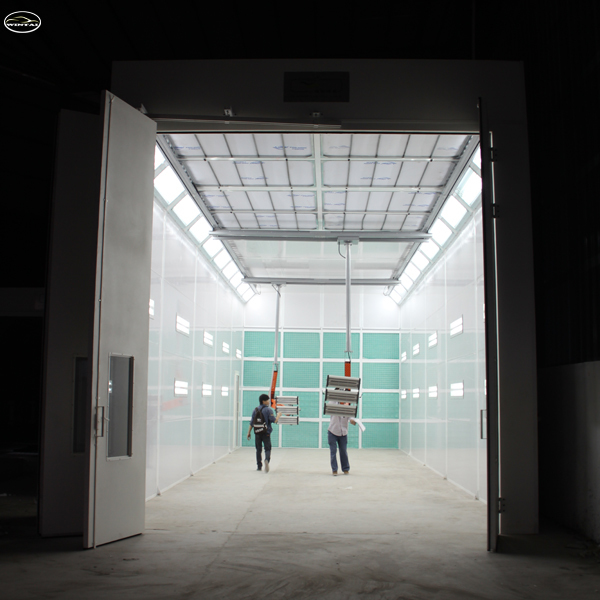

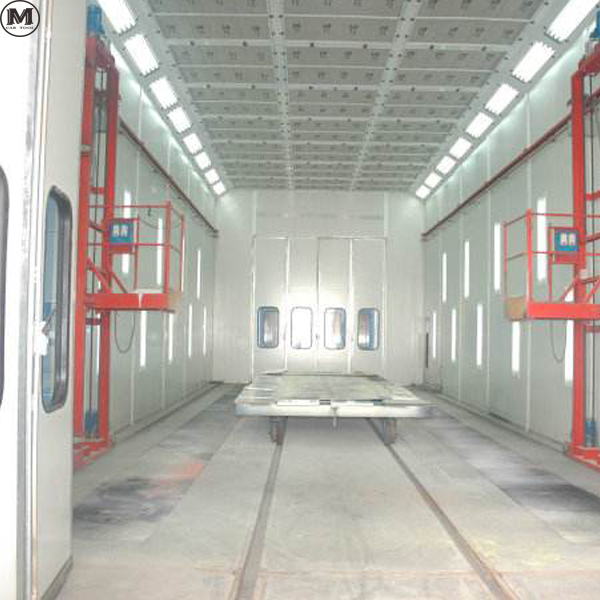

TELASKA TLSJ-8010 Spray Booth Operation View
