Features

Specifications

Device Size: 25×4×3.5m

Installation Area: 25000mm Long × 4000mm Wide

Power Requirem-ent: AC380V50Hz (5-wire System)

Flatness Of The Ground: Error ≤ 10mm

Car Wash Size: 5.2m × 2.15m × 2.1m (wheelbase ≤3.2m)

Shampoo Consumption: 20-40ml Per Vehicle

Water Consumption Per Vehilce: 120 Liters Per Vehicle

Water-wax Consumption Per Vehicle: 30ml Per Vehicle

Electricity Consumption Per Vehicle: 1.1 KWh Per Vehicle

Highlight:

tunnel-type automatic car washer

automated car wash system with brushes

simultaneous car wash machine with warranty

Basic Infomation

Place of Origin: Guangzhou

Brand Name: WINTAI

Model Number: S9

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

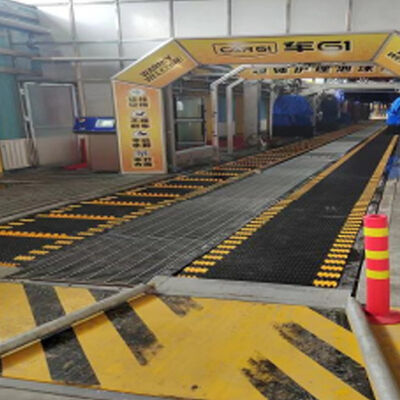

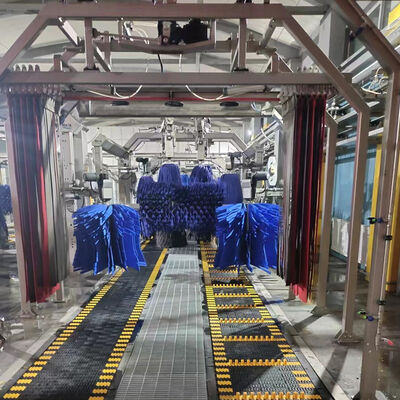

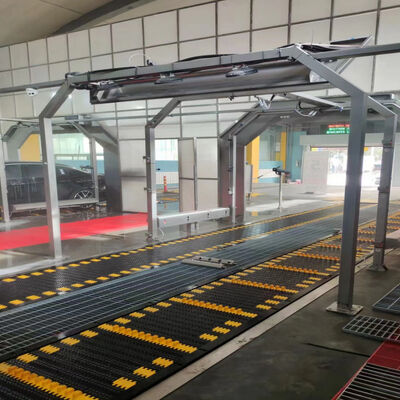

Wash four cars simultaneously Automatic Car Washer Tunnel-Type Automated Car Wash Systems with 14 brushes

Product Description

Wash Four Cars Simultaneously Automatic Car Washer Tunnel-Type Automated Car Wash Systems with 14 Brushes

System Configuration & Specifications

Configuration	Function
Full Package Name	14-Brush Flatbed Tunnel-type Car Wash Machine
Model	S9
Technical Parameters	Device size: Length × width × height = 25×4×3.5m Installation Area: 25000mm long × 4000mm wide
Power Requirements	Voltage: AC380V50Hz (5-wire system)
Water Requirements	Pipe diameter DN25, flow rate ≥200 L/min
Air Source Requirement	Pressure 0.75～0.9Mpa/ Flow rate ≥ 0.1m³/min
Flatness of the Ground	Error ≤ 10mm
Vehicle Washable Model	Car, Jeep, van with less than 10 seats
Car Wash Size	5.2m × 2.15m × 2.1m (wheelbase ≤3.2m)
Car Wash Time	50-60 vehicles per hour

System Components

Chassis Flushing: One set
High pressure preflushing: A set of 140-kilogram pressure motor pumps
High bubble Foam: One set
Colorful Waterfall: One set
Wax spray: One set
Air drying system: 6 Fans (4 top fans and 2 side fans)
Entry guide platform: One set
Frequency conversion speed control: Special thickened bearing, large ball drive chain

Brush Configuration

Small vertical brush: 4pcs
Large vertical Brush: 4pcs
Top brush: 1pc
Hub brush: 2pcs
Polishing brush: 3pcs

Key Components

Component	Brand/Origin
Programmable Controller (PLC)	Mitsubishi of Japan
Colorful touch screen	FANYI FE6100M-PRE
Frequency Transformer	Mitsubishi of Japan
Contactor	Schneider LC1-D series in France
Motor protector machine	Schneider LR-D series in France
Switching Power Supply	Schneider LRS-150-24 from France
Auxiliary relay	Schneider RX2M2L from France
Photoelectric sensor machine	Banner, USA
Proximity transducer	German company P+F
Three-phase asynchronous motor	Siti Italy
Waterproof motor	Siti Italy
Worm speed reducer	Siti Italy
Pneumatic pressure regulating valve	Taiwan AirTAC
Air cylinder	Taiwan AirTAC
High pressure water pump	HP Italy

Liquid Consumption Per Vehicle

Water consumption per vehicle: 120 liters per vehicle
Electricity consumption per vehicle: 1.1 kWh per vehicle
Shampoo consumption: 20-40ml per vehicle
Water-wax consumption per vehicle: 30ml per vehicle
