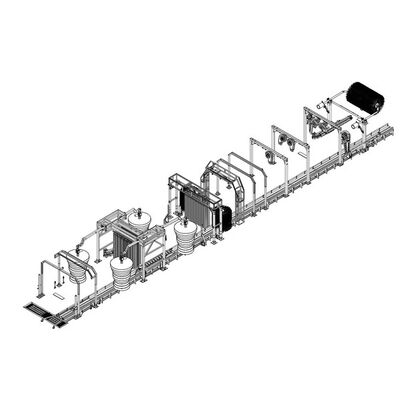

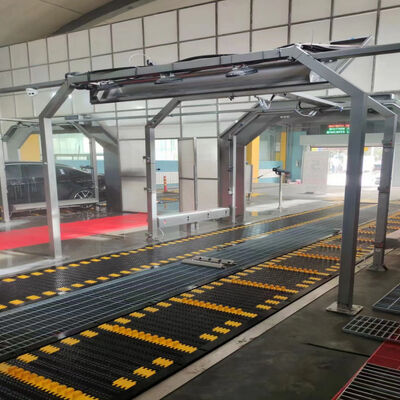

25-Meter Flatbed Tunnel Car Wash Machine - 14-Brush High Pressure System
Electrical Safety Protection System
This system features high-end Schneider electrical components with comprehensive protection including overcurrent, overvoltage, undervoltage, and short circuit protection. All motors include overload protection, and electrical control boxes, PLCs, frequency converters feature reliable grounding. The waterproof, anti-corrosion control box with seismic performance complies with IEC and CCC standards.
Multi-Functional Car Wash Mode Switching
Multiple cleaning modes including economical, standard, and coated car wash options. Supports system background switching and mobile phone selection for differentiated services to enhance operational capabilities.
Intelligent Vehicle Recognition & Winter Protection
PLC-controlled system with infrared photoelectric and proximity sensors for intelligent vehicle recognition and precise positioning. Winter anti-freeze system automatically drains water from pipes to prevent freezing and includes pipeline heating for reliable operation in cold conditions.
Automatic Fault Detection & Safety Systems
Comprehensive monitoring with motor overload alarms, emergency stop functions, phase loss alerts, and sensor-based fault detection. System automatically records fault data and provides troubleshooting guidance. 360-degree monitoring prevents damage to vehicle components during cleaning.
Technical Specifications
| Configuration |
Function |
| Hot-dip galvanized external frame |
Full Package |
| Model: S9 |
Chassis Flushing: One set |
| Device Size: 25×4×3.5m |
High Pressure Preflushing: 140kg pressure motor pump |
| Installation Area: 25000mm × 4000mm |
High Bubble Foam: One set |
| Power: AC380V50Hz (5-wire system) |
Colorful Waterfall: One set |
| Water Requirements: DN25 pipe, ≥200 L/min |
Wax Spray: One set |
| Air Source: 0.75-0.9Mpa, ≥0.1m³/min |
Air Drying System: 6 Fans (4 top, 2 side) |
| Vehicle Capacity: Cars, Jeeps, vans ≤10 seats |
Entry Guide Platform: One set |
| Car Wash Size: 5.2m × 2.15m × 2.1m |
Frequency Conversion Speed Control: Special thickened bearing |
| Throughput: 50-60 vehicles per hour |
Brush Configuration: 4 small vertical, 4 large vertical, 1 top, 2 hub, 3 polishing |
Key Components & Consumption
Premium Components: Mitsubishi PLC, Schneider contactors and relays, Banner photoelectric sensors, P+F proximity transducers, Siti motors and reducers, AirTAC pneumatic components, HP Italy water pumps
Consumption Per Vehicle:
- Water: 120 liters
- Electricity: 1.1 kWh
- Shampoo: 20-40ml
- Water-wax: 30ml
Product Advantages
- High-Pressure Rinsing System: Top and side spray nozzles pre-soak vehicle surface to remove sand and dust, preventing paint scratches during washing
- Precision Liquid Supply: CNC metering pump with low-level alarm, chemical replenishment every 200-300 vehicles
- 360-Degree Cleaning: Comprehensive brush system (1 top, 4 large vertical, 4 small vertical, 2 wheel, 3 polishing) with imported soft, non-abrasive foam brushes
- Effective Drying & Finishing: 6 powerful drying fans (5.5kW each) combined with polishing brushes for complete vehicle finish
