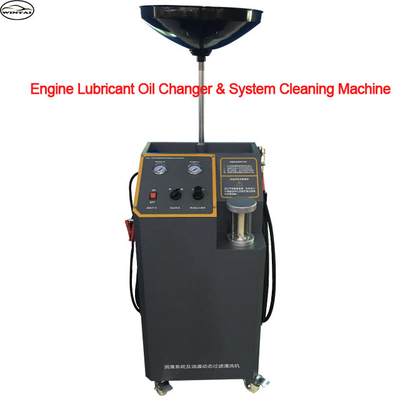

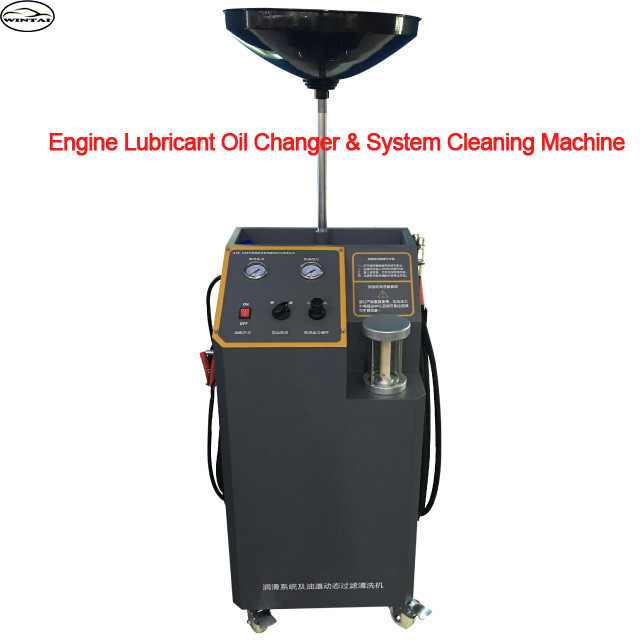

Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2 .5m Pipe

1
MOQ
us$580/set-us$645/set
Price
Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2 .5m Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ASE-008E
Environment Temperature: -10~+40°C
Relative Humidity: <85%
Pressure Gauge: 0~10kg
Inlet Pipe: 2 .5m
Outlet Pipe: 2 .5m
Filter Accuracy: 5μm
GW: 75 Kg
Noise: <60db
Highlight:

Lubricating Oil System Engine Flushing Machine

,

75Kg Engine Flushing Machine

,

Lubricating Oil System Engine Flush Machine
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: CE
Model Number: ASE-008E
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 7
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets/month
Product Description
Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2.5m Pipe
Air Drive Engine Lubricating Oil System Cleaning Machine ASE-008E
Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2 .5m Pipe 0
Machine Overview
According to automotive engine maintenance regulations, engines require oil replacement and internal cleaning after 5,000-10,000 kilometers of driving. Under high-speed and high-temperature operating conditions, engines generate oil sludge, carbon deposits, and colloids that can cause abnormal operation, mechanical faults, and potential accidents if not properly cleaned and maintained.
Traditional manual oil changing and cleaning methods are difficult, time-consuming, and inefficient. The advanced ASE-008 oil changing and cleaning equipment offers easy operation, convenience, and practicality, providing thorough and rapid cleaning and oil changing for a wide range of vehicles.
Key Features
  • Cabinet-type design for easy mobility and operation
  • Dynamic recycling cleaning of engine lubrication system
  • Pressurized flushing to remove residual waste oil for thorough cleaning
  • Compressed air power source for economical and stable operation
  • Transparent measuring cup displays waste oil volume and color
Primary Functions
  • Dynamic cleaning of engine lubrication system
  • Pressurized secondary flushing to ensure complete waste oil extraction
  • Pre-lubrication function for engine interior components
Technical Specifications
Environment Temperature -10°C to +40°C
Relative Humidity <85%
Pressure Gauge 0-10kg
Inlet Pipe 2.5m
Outlet Pipe 2.5m
Filter Accuracy 5μm
Noise Level <60db
Net Weight 60 Kg
Gross Weight 75 Kg
Equipment Design
Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2 .5m Pipe 1

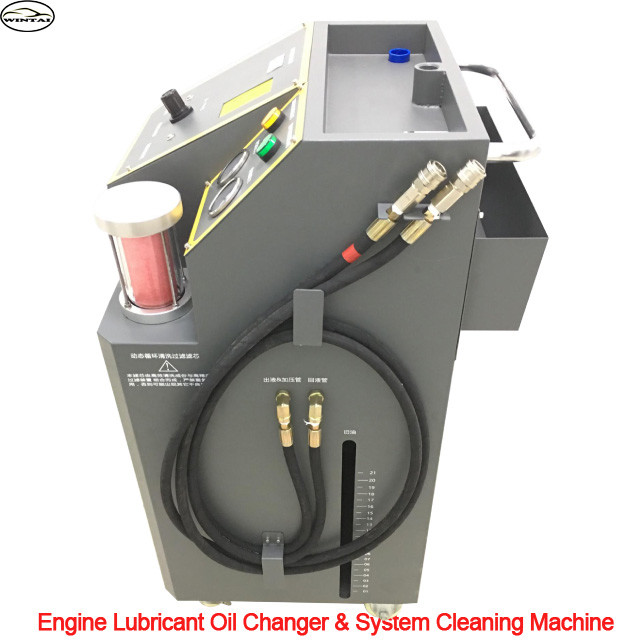

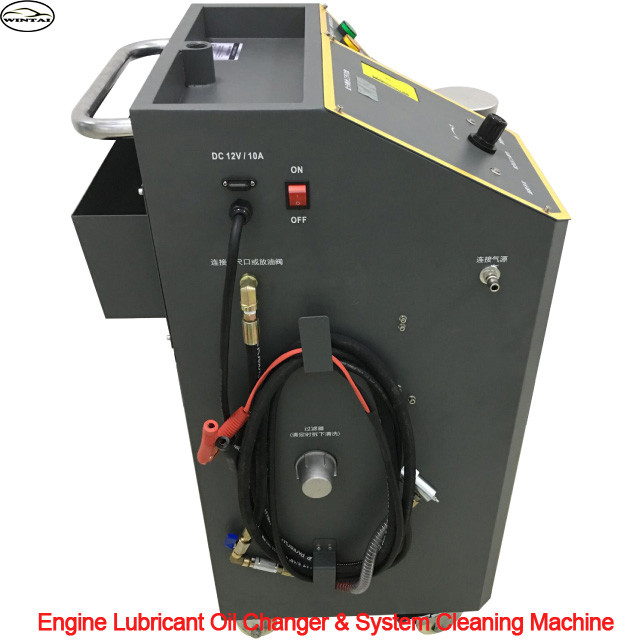

The ASE-008E ATF machine features a cabinet-type design with a top handle and bottom wheels for easy mobility. Oil pipes utilize quick-connect joints for simple installation and removal. The operation panel is designed for intuitive and straightforward use.
Important: During dynamic cleaning and deep oil changing processes, the equipment requires continuous monitoring by trained personnel.
Operation Preparation
  1. Position the vehicle in the workplace, switch off the engine, and lift to appropriate height with driving wheels suspended
  2. Remove oil filter using tools and install appropriate adapter kit according to adapter table specifications

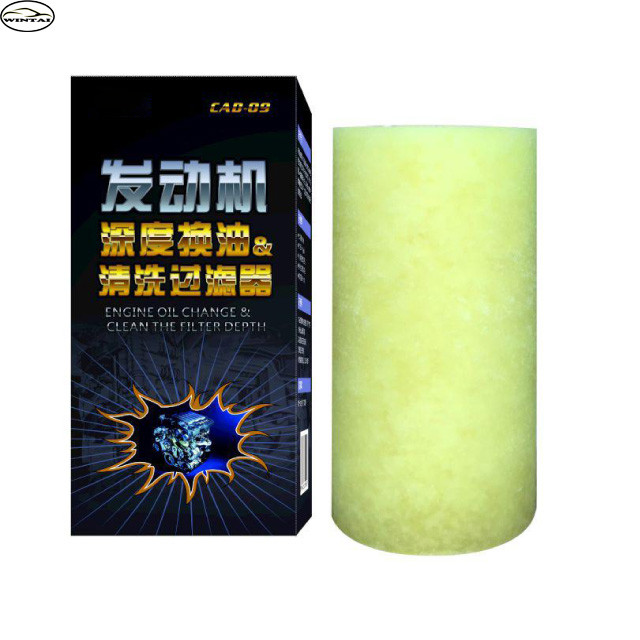

  3. Place cleaning filter core in the transparent filter cup of the equipment
Pre-Operation Verification
  • Confirm oil adapter kit is securely installed on oil filter base
  • Verify correct connection between inlet/outlet hoses of oil adapter and outlet/return hoses of equipment
  • Set pressurized flush valve to OFF position
  • Adjust regulator valve of pressurized flushing counterclockwise to minimum port
  • Connect adapter kits and equipment pipeline to vehicle
Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2 .5m Pipe 2 Lubricating Oil System 75Kg Engine Flushing Machine ASE-008E With 2 .5m Pipe 3
