Home /Products/Engine Flushing Machine/Pneumatic Type Engine Oil Filling Kit with 5:1 Ratio and 6-8L/min Filling Speed for 4S Shops

Pneumatic Type Engine Oil Filling Kit with 5:1 Ratio and 6-8L/min Filling Speed for 4S Shops

1
MOQ
210
Price
Pneumatic Type Engine Oil Filling Kit with 5:1 Ratio and 6-8L/min Filling Speed for 4S Shops
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service Provided: Video Technical Support
Suitable For: 4S Shop/workshop
Air Pump: 1pcs
Oil Hose: 1.5m
Type: Pneumatic Type
Highlight:

Pneumatic Type Oil Dispenser Kit

,

5:1 Ratio Engine Oil Filling Kit

,

6-8L/min Filling Speed Pneumatic Oil Pump
Basic Infomation
Place of Origin: CHINA
Brand Name: WINTAI
Certification: CE
Model Number: WT-LUB-510
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 1000pcs/month
Product Description
Movable Lubricating Engine Oil Filling Kit Oil Dispenser Kit Pneumatic Type
This pneumatic oil filling kit is designed for efficiently transferring lubricant oil, brake oil, and engine oil from large storage tanks to individual vehicle containers. The movable system ensures convenient operation in automotive service environments.
Packing List
  • Air pump: 1 piece
  • Pressure regulating valve assembly: 1 piece
  • Oil hose: 1.5m with female and male connectors (1 piece)
  • Quantitative refueling gun: 1 piece
  • Oil tank fixer: 1 piece

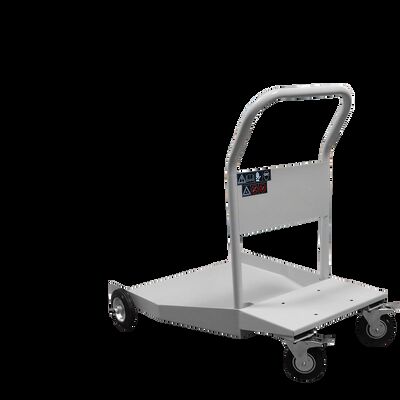

  • Big endurable trolley: 1 piece

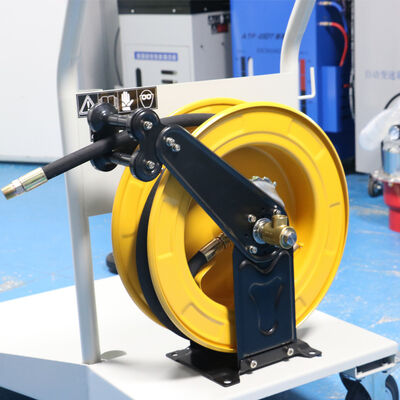

  • Hose reel (1/2" x 10m): 1 piece
Technical Specifications
Parameter Specification
Ratio 5:1
Pump Length 940mm
Air Inlet Connector G1/4
Air Speed 230L/min
Working Pressure 3~6 Bar
Air Outlet Connector G1/4
Oil Filling Speed 6~8L/min
Maximum Pressure 7bar
Oil Range 80SAE
Oil Temperature Range -10~50℃
Pump Hose Outer Diameter 42mm
Oil Tank Compatibility 180~220KGS

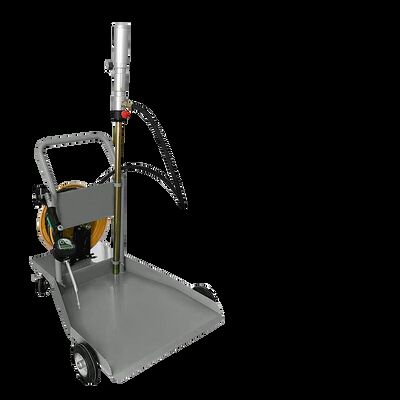

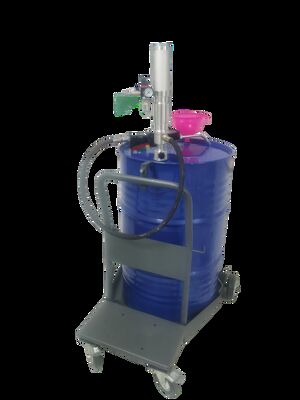

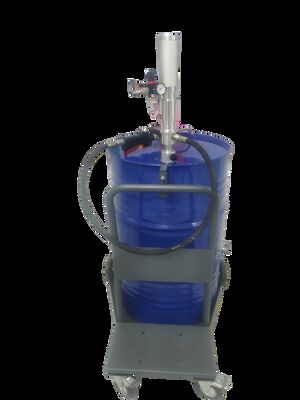

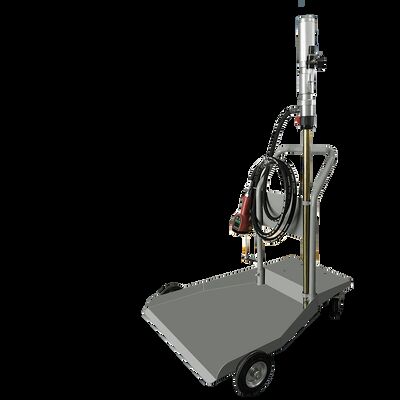

Movable lubricating engine oil filling kit showing complete assembly with pump, hoses, and trolley
Technical diagram of pneumatic oil dispenser kit components and connections
