Guangzhou cheap Automatic Touchless Car Wash Machine Car Washer
2024 Guangzhou cheap Automatic Touchless Car Wash Machine Car Washer system no brush
Special Feature
Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.
| Item |
Parameters |
Function |
Remark |

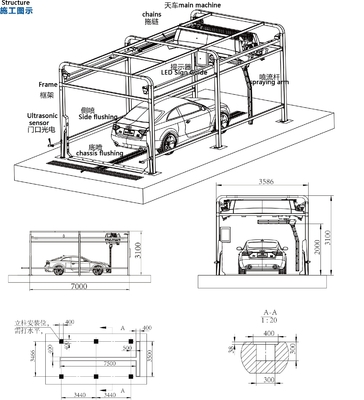

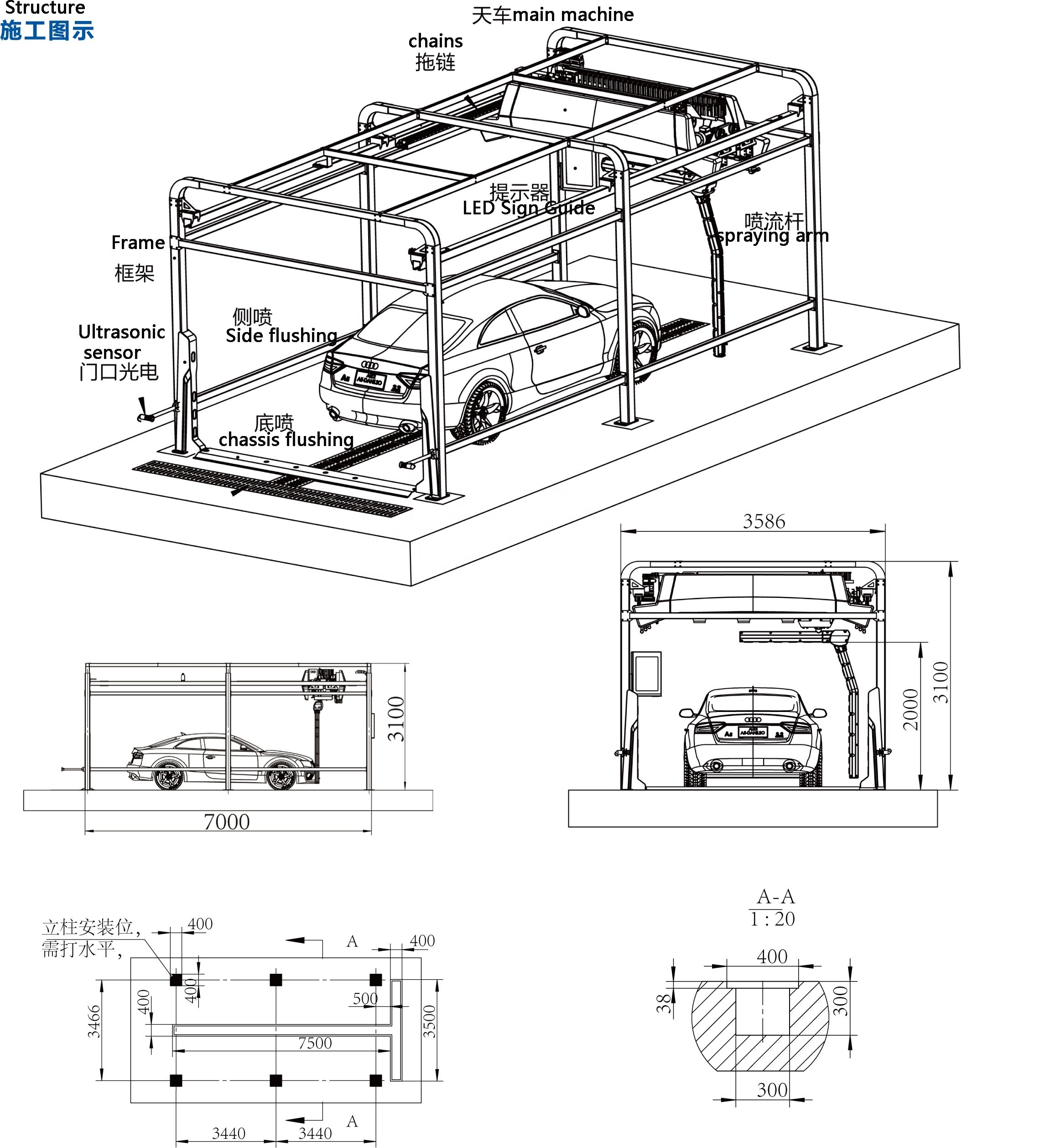

| Installation Size(L*W*H) |
L*W*H=7500*3500*3200mm (24.6ft *11.48ft *10.5ft) |
Chassis wash function |
yes |
| Max. Car Size |
L*W*H=5600*2100*2080mm (18.37ft *6.89ft *6.82ft) |
360-degree high pressure water wash |
yes |
| Shampoo Consumption |
Approx. 40ml/car |
Foam function |
yes |
| Foam Consumption |
Approx. 40ml/car |
All degree rotary high pressure flushing |
yes |
| Water Wax Consumption |
Approx. 80ml/car |
Shampoo function |
yes |
| Magic color bubble consumption |
Approx. 80ml/car |
Wax rain |
yes |
| Water Consumption |
Approx. 150L/car |
Built in 4Pcs * 3KW Air dry |
yes |
| Electricity Consumption |
Approx. 0.75KWH/car |
Self-guided parking system |
yes |
| Time Consumption |
4.5min/car, 8 hours 100 cars |
Vehicle length detection |
yes |
| Air Switch |
100A air switch |
LED indication light guide system |
yes |
| Power Supply Requirements |
AC380V/50Hz/3Ph/16KW, 14smm copper cable |
Operation permission setting function |
yes |
| Water Pump Motor Power |
Germany PINF Pump 15KW/100Bar working pressure, Max. 120Bar |
Self-service payment system |
yes |
| Water Pump Motor Power |
18.5KW/pressure 130Bar,10-130Bar Adjustable,Simens |
Voice Prompts function |
yes |
| Fan Motor Power |
Built in 4 pcs 3KW blowers total 12KW |
Vehicle width detection |
yes |
| Remote Control |
Remote Control |
Automatically adjust |
yes |
| Central Processing Unit PLC |
Industrial intellient digital control system |
LED alert system |
yes |
| Drive System |
Variable frequency speed control + digital driver |
Washing quantity counting function |
yes |
| Detection System |
Intelligent three-dimensional detection system |
Fault self-test function |
yes |
| Central Processing unit PLC |
Industrial intelligent digital control system |
Wireless remote control system |
yes |
| Drive system |
variable frequency speed control+digital servo driver |
Galvanized frame |
yes |
| Sensing System |
Ultrasound+ Absolute value of the digital encoder, 1 sensors |
|
|
| Shipment Weight / Volume |
2.1Ton / 7.5CBM / 6 Cartons /by 40GP LCL / 4Units in 40GP |
|
|
| Water consumption |
65-200L/car |
|
|
| Carton A |
0.915*1.41*1.15m = 1.439m³ 462kg |
|
|
| Carton B |
0.76*1.15*0.97m = 0.82m³ 172.5kg |
|
|
| Carton C |
1.165*1.16*2.86m = 3.87m³ 776.5kg |
|
|
| Carton D |
0.41*0.56*3.21m = 0.74m³ 441kg |
|
|
| Carton E |
3.08*0.305*0.12m = 0.11m³ 36kg |
Customized electricity motor |
Optional |
| Carton F |
6*0.4*0.2m = 0.48m³ 77kg |
Magic color bubble function |
Optional |
Company Profile
Aomatic car washing machine-Guangzhou Wintai Cartools Co.,Ltd is a professional manufacturer of car washing machine equipment established in 2013, integrating R&D, production, sales and service. WINTAI focuses on high –end car washing machine manufacturing and design, and strives to provide consumers with higher quality car washing machine equipment.
The workshop is located in Xi'an and has an export office in Guangzhou. Xi'an is an international transportation hub with strategic advantages for export transportation.
WINTAI specializes in the research and development of fully automatic computer car wash equipment. Based on the absorption of advanced technology from the same industry in the world, WINTAI adopts a unique design concept and combines the domestic car wash market conditions. After years of continuous research, testing and testing, and further innovation, we have developed a new generation of stable of T series surrounding high-pressure non-contact wipe-free automatic computer car wash system .It’s cost-effective, reliable and with stable performance. The original series of “L” type jet cleaning design mode is extremely humanized, which can better clean the surface of the car body at a large angle. The appearance is simple and applicable, breaking the drawbacks of the old huge equipment, heavy and can not be installed indoors, so that customers can obtain Top Wash, Top Suitable, Top stable and Top cost-effective car wash system.
Among them, T9 and WT-390 are the leading products of our company. Both T9 and WT-390 have self-service payment systems. This is a further elimination of labor compared to the traditional car wash industry, and to make up for the short-term business hours. 24h all-day business can solve the problem of car owners car wash time, but also create more benefits for investors.
WT-390 is more inclined to meet the basic needs of the current market. It is a suitable choice for the car wash industry or the general washing station. The T9 has a larger flushing pressure, the maximum flushing pressure can reach 130bar. It’s with 4pcs of 5.5kw fans, and the surrounding flushing speed reaches 27 seconds in 360 degrees around the car, its washing speed is faster. Secondly T9 has more washing modes compared to the general car washing machine. The car owner can choose different modes according to actual needs. In this way, the owners don’t need consider if the car has to be washed due to some parts of car are clear , this will make car washing frequency more and bring more profit for investors.
In short, both T9 and WT-390 can meet export requirements. We also export these products to Malaysia, Armenia, Kazakhstan, Russia, Nigeria and the vast European countries.
