Home /Products/Touchless Car Washer/Blue Full Automatic Touchless Car Wash System WT390 380V Safety Operation

Blue Full Automatic Touchless Car Wash System WT390 380V Safety Operation

1
MOQ
$18,200.00/acres >=1 acres
Price
Blue Full Automatic Touchless Car Wash System WT390 380V Safety Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Other
Color: Blue
Material: Metal
Machine Size(mm): 7000*3100*3300
Mininum Installation Area Size(mm): 7000*3300*3200
Max Vehicle Suitable(mm): 5500*2200*2000
Track Length(mm): 6000
Voltage: 380v/3phase/50HZ/16kw Or Other Voltage
Water Consumption: 150L/Car
Time: 3min/time
Speed: 20cars/hour
Highlight:

Blue Touchless Car Wash System

,

380V Touchless Car Wash System

,

Safety Operation Car Wash Touchless Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WinTai
Certification: CE
Model Number: WT390
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Acre/Acres per Month
Product Description
Blue Full Automatic Touchless Car Wash System WT390 380V Safety Operation
Product Overview

WT390 Full Automatic Touchless Car Washer delivers advanced, efficient vehicle cleaning with complete touch-free operation and comprehensive safety features.

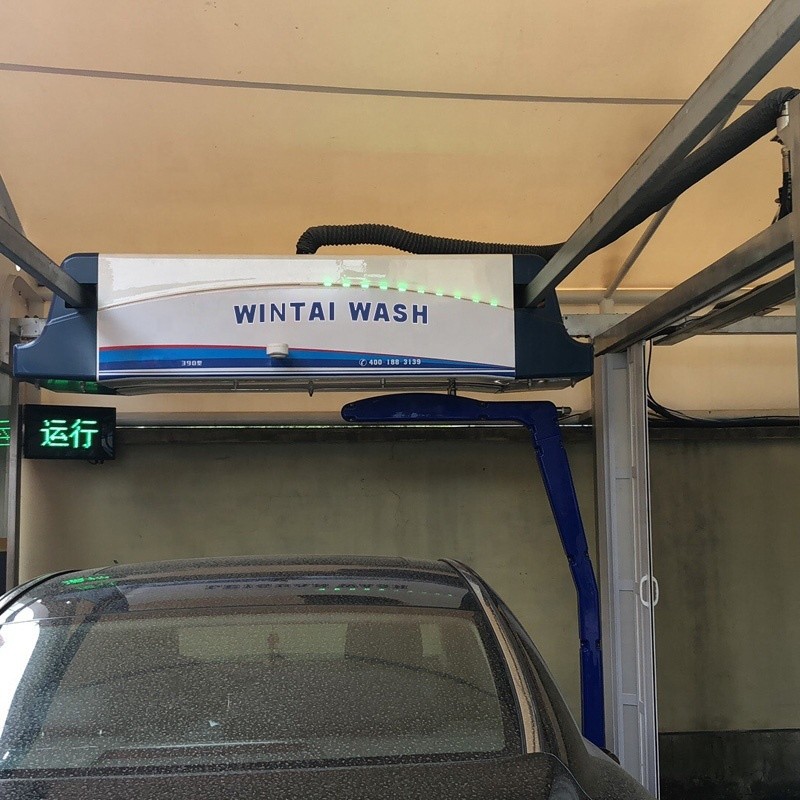

WT390 Full Automatic Touchless Car Wash System exterior view
Key Features
  • Ultrasonic induction automatically detects vehicle distance to prevent collisions
  • High-pressure flushing at 70KG+ with no blind spots, ensuring thorough cleaning while conserving energy and water
  • Automatic foam spray system for even, efficient decontamination with detergent savings
  • Automatic chassis inductive flushing handles hard-to-reach undercarriage areas
  • Electronic touch screen control with clear washing programs, fault self-test, and counting functions
Technical Specifications
Machine Size: 7000 × 3100 × 3300 mm
Voltage: 380V/3Phase/50HZ/16kW
Installation Area: 7000 × 3300 × 3200 mm
Power Consumption: 0.21 kWh/Car
Max Vehicle Size: 5500 × 2200 × 2000 mm
Water Consumption: 150L/Car
Track Length: 6000 mm
Wash Time: 3 minutes
Vehicle Types: Normal and commercial vehicles, medium-sized SUV
Capacity: 20 cars/hour
System Functions
Chassis Flushing Yes Car Body Size Detecting Yes
Wheel Rims Flushing Yes Wax Spraying Yes
Shampoo Spraying Yes One Button Reset Yes
High Pressure Water Flushing Yes One Button Start Yes
Car Washing Counting Yes Fault Detecting Function Yes
Alarm Prompt Yes External Support Frame Yes
Automatic Chemical Matching Yes Colorful Light Yes
Colorful Foam Spraying Yes Remote Control Yes
Self-Service Payment System Yes (coins and IC card) Washing Arm Rotate and move freely
External Dryers 2.2KW/pc, 4pcs total
Premium Components
Control System (PLC) Siemens PLC
Driving System Mechanical wheel + gear wheel
Electric Components Schneider
Bearing NSK
Safety Detecting System BANNER
Rotary Nozzle Nitto
Product Images

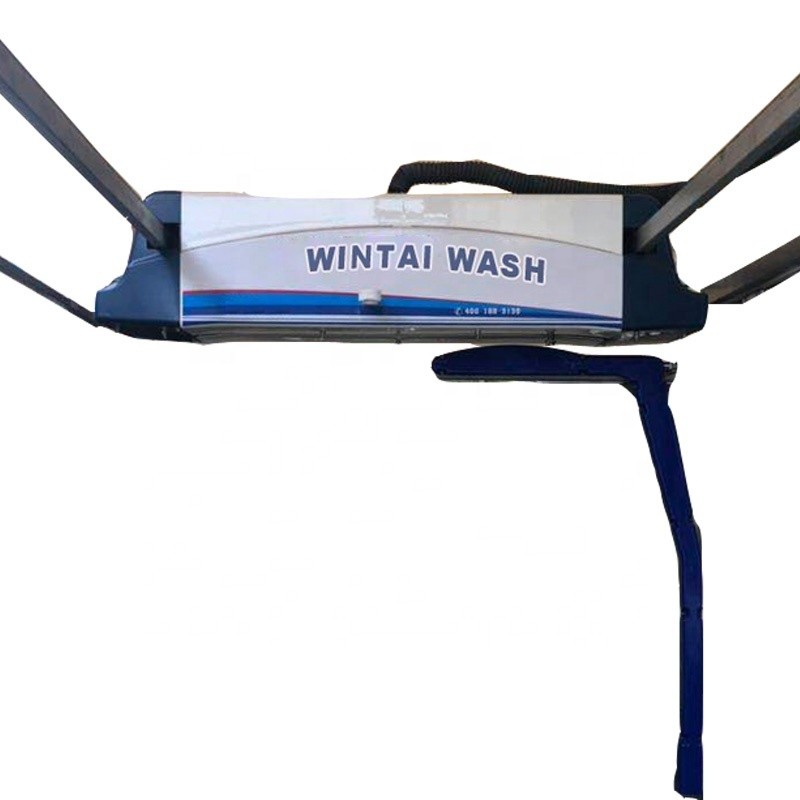

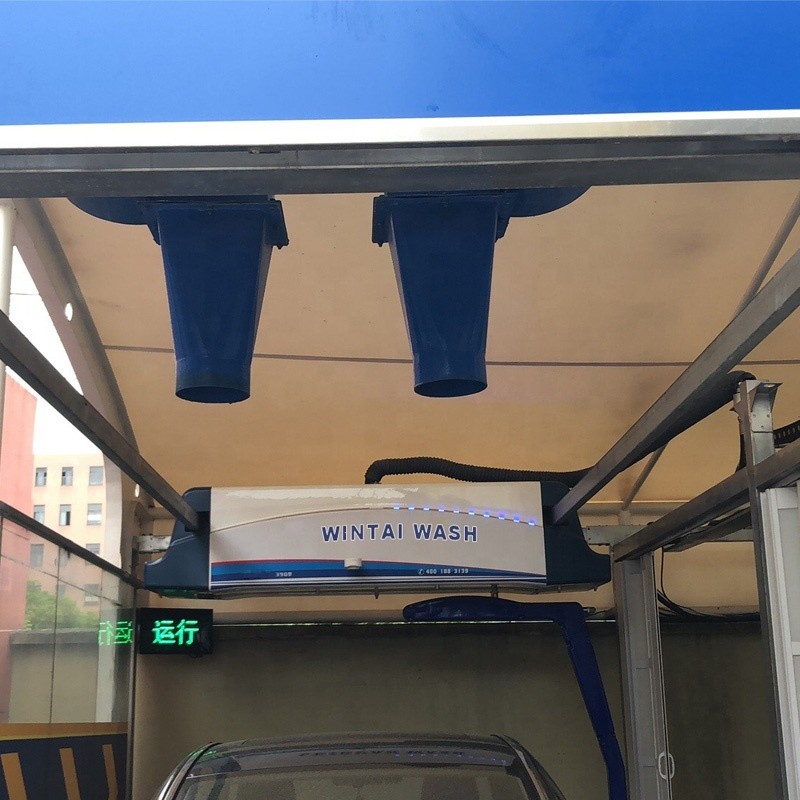

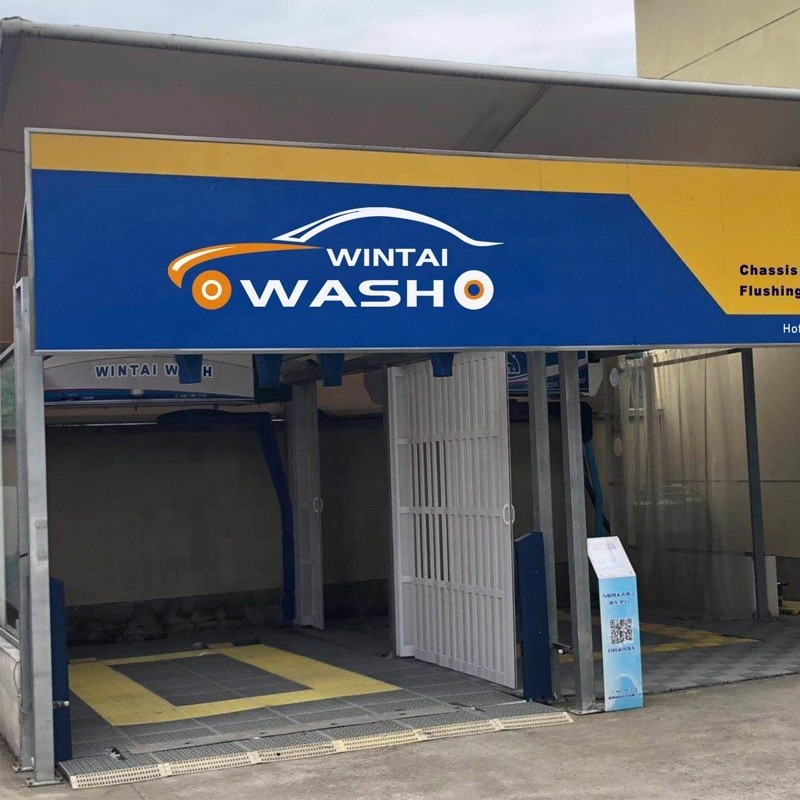

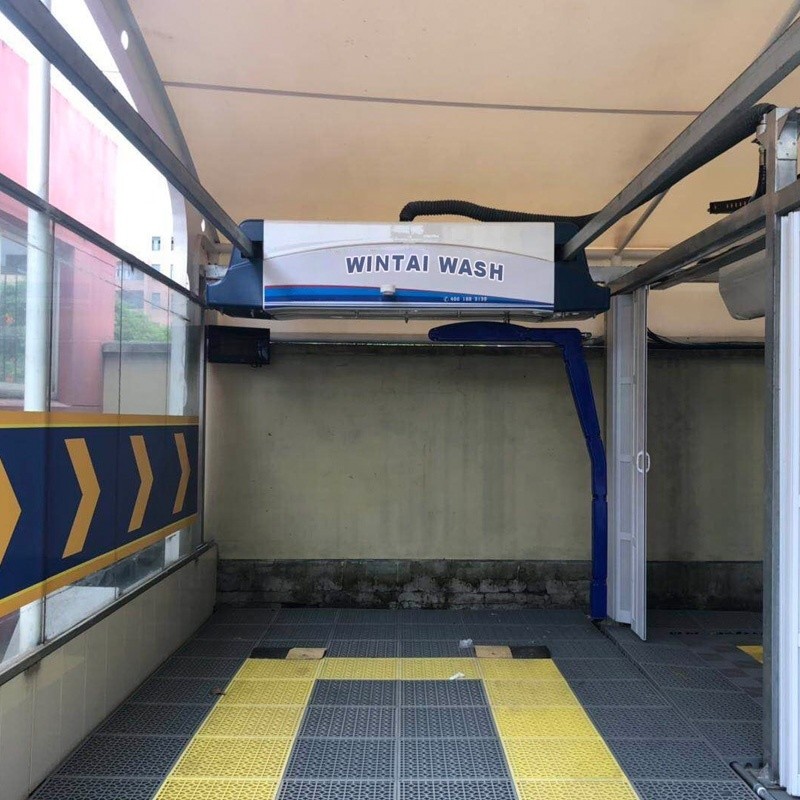

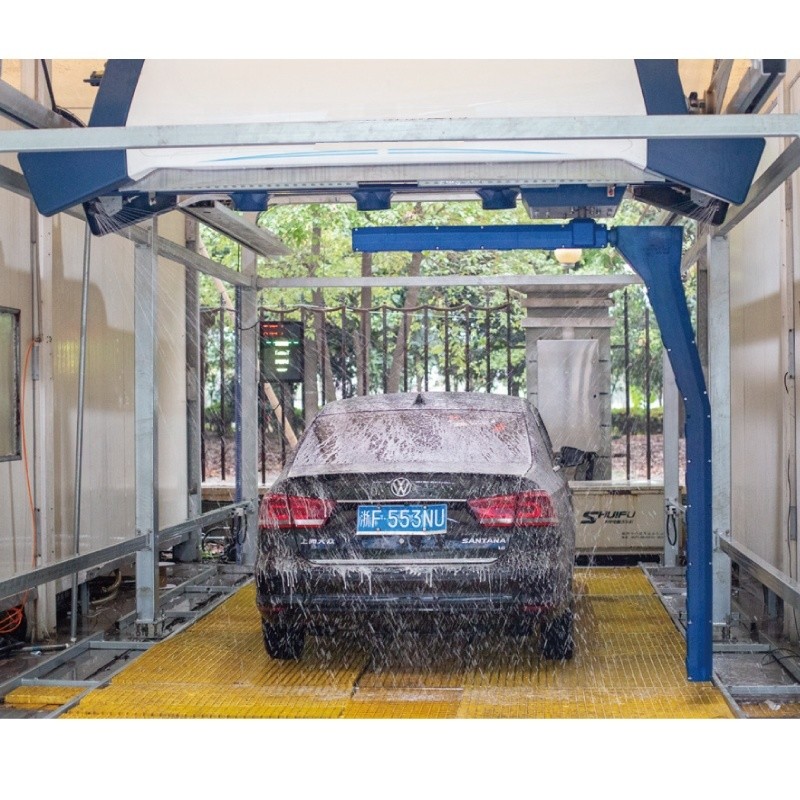

WT390 car wash system operational view showing washing process WT390 car wash system control panel and interface WT390 car wash system detailed component view
Tag:

Touchless Automatic Car Wash

Touch Free Automatic Car Wash

Car Wash Touchless Machine
