Features

Specifications

Size: 3670mm*1330mm*1300mm

Warranty: 1

Output Power: >1500W

Design Style: New China-Chic

Model Number: T9

Max Vehicle Suitable: 6000*2500*2080mm

Water Consumption: 65-200L/car

Electricity Consumption: 0.4-1KW.H/car

High Pressure: 130bar

Waste Water Recycling: Optional

Self-service Payment System: Optional

Air Switch: 100A

Total Power: 13KW/24.5KW

Port: Shenzhen/Guangzhou

Highlight:

130bar Touchless Car Wash Equipment

High Pressure Touchless Car Wash Equipment

24.5KW No Touch Automatic Car Wash

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WinTai

Certification: CE

Model Number: T9

Payment & Shipping Terms

Packaging Details: Standard Export Packages

Delivery Time: 25

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000 Set/Sets per Month

Gallery

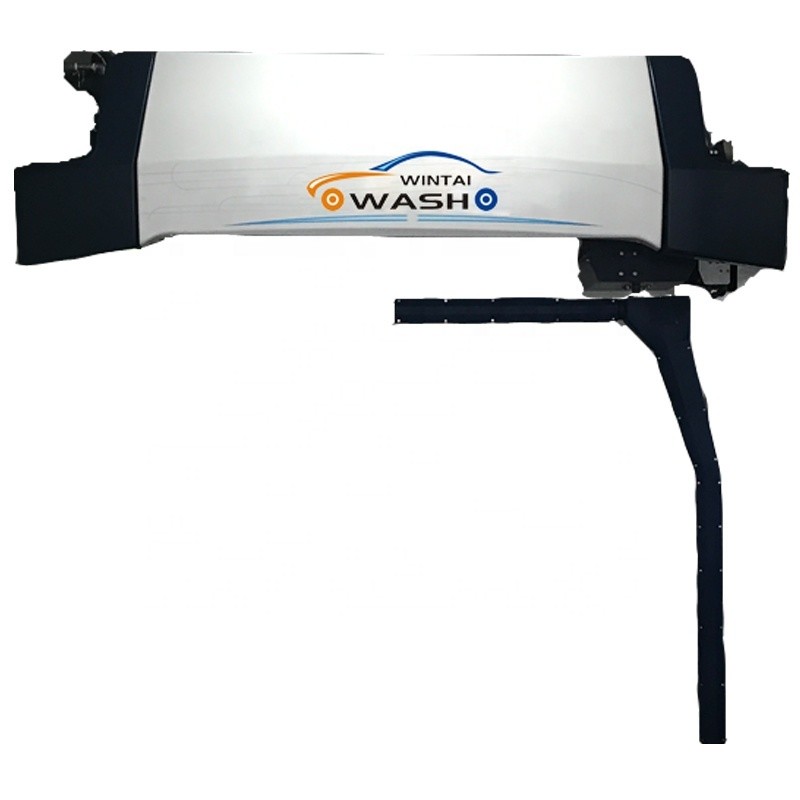

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving

Product Description

Brushless car wash machine fully automatic 130bar high pressure

This is a headache-free machine which can make your business better. You don't need much energy to maintain it as we consider a lot for the quality of each component. Total weight 2.8 tons and 8 cubic meters.

Keywords:

Touch free car washing machine

self-service car washing machine

Touchless car washing machine

brushless car washing machine

Optional:

Waste water recycling system

Self-service payment system

colorful lights system

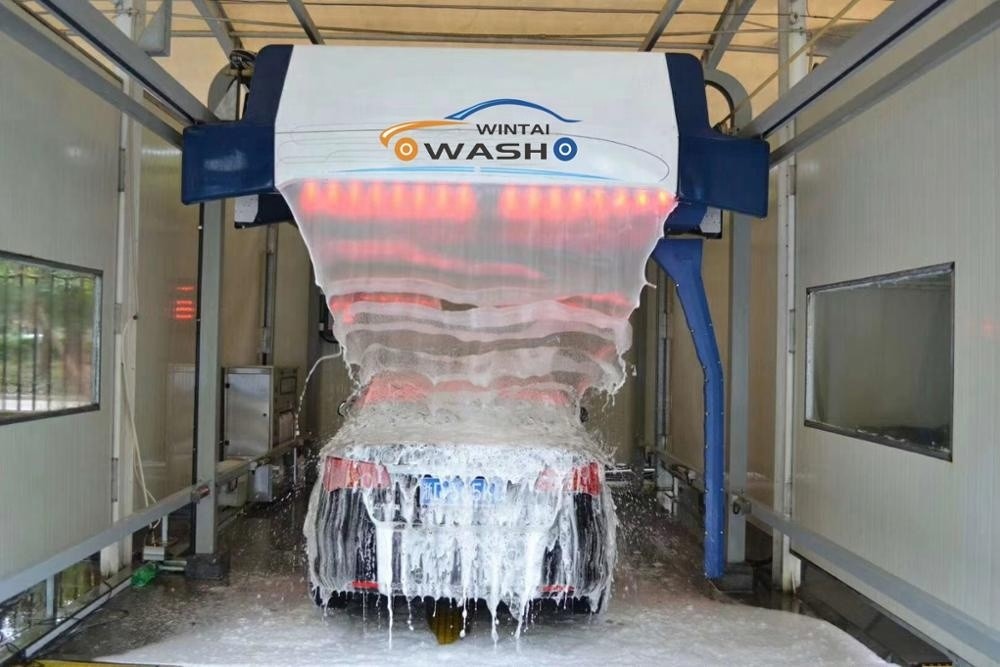

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving 0

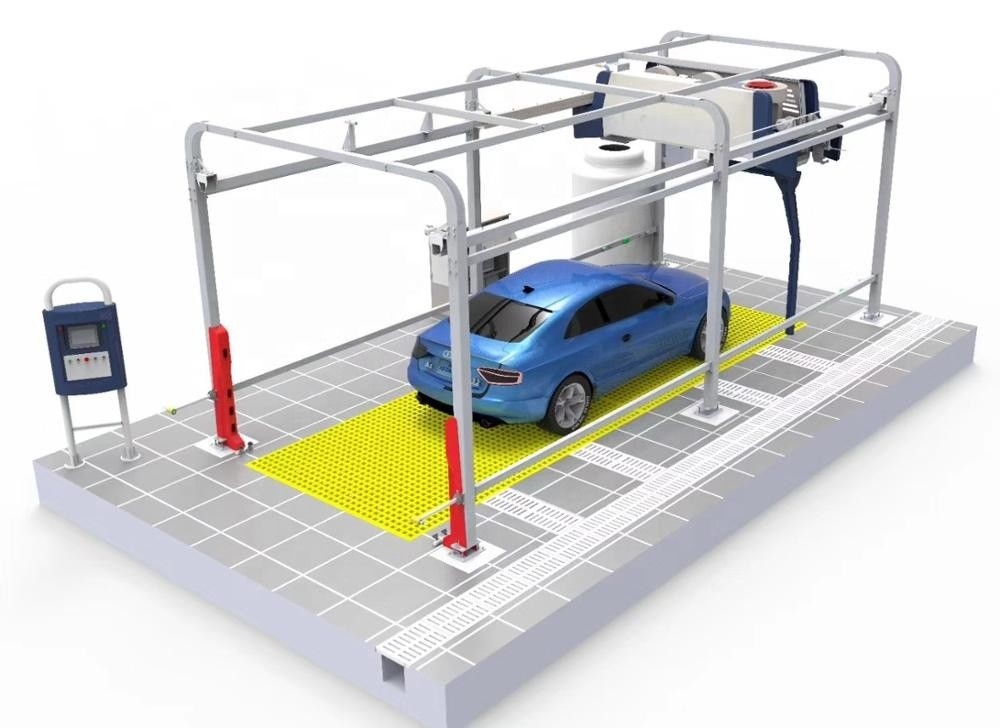

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving 1

Special Feature:

Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.

Wasing Mode:

1.Fine Mode (5 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--shampoo spraying--High pressure car body flushing--Wax Spraying---Drying--End

2.Fast Mode (2 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Drying--End

Item	Parameters	Function	Remark
Machine Size(LWH)	3670mm1330mm1300mm	Self-parking and detecting system	√
Pump Size(LWH)	1280mm740mm600mm	Digital anti-collision system	√
Chemical station size(LWH)	1160mm470mm1350mm	All degree rotary high pressure flushing	√
Max Vehicle Suitable	600025002080mm	Chassis flushing	√
Installation(L)-Frame Length	7500mm~8000mm	Detergent spraying	√
Installation(W)	3350mm~3686mm	Colorful/high foam detergent spraying	√
Installation(H)	3300mm-3400mm	Wax spraying system	√
Total Weight/volume	≥3300kgs/≥8.5m³	Built-in automatic drying system	√
Power Requirement	380V/25KW or other voltage	LED indication light guide system	√
Air Switch	100A	Operation permission setting function	√
Total Power	13KW/24.5KW	Self-service payment system	√
Water Pump Motor Power	18.5KW/pressure 100Bar,100-100 Bar Adjustable,Simens	Voice Prompts function	√
Fan Motor Power	5.5KW/set x4sets	Car washing counting function	√
Horizontal Motor Power	0.55KW asynchronous frequency conversion speed regulation	Antifreeze system	√
Cross Motor Power	1KW digital servo motor	Oil-free system	√
Rotation motor Power	1KW digital servo motor	Equal pressure anti-blocking nozzle	√
Chemical Proportion Motor Power	0.37KW	Safe alarm system	√
Central Processing unit PLC	Industrial intelligent digital control system	Automatic Standby function	√
Drive system	variable frequency speed control+digital servo driver
Inspection system	Intelligent three-dimensional detection system
Running speed	27 seconds/360 degree one circle	Self-service payment system	.
Water consumption	65-200L/car	Colorful Lights(like above right picture)	.
Electricity consumption	0.4-1KW.H/car	Water Recycle System	.
√ Standard . Optional

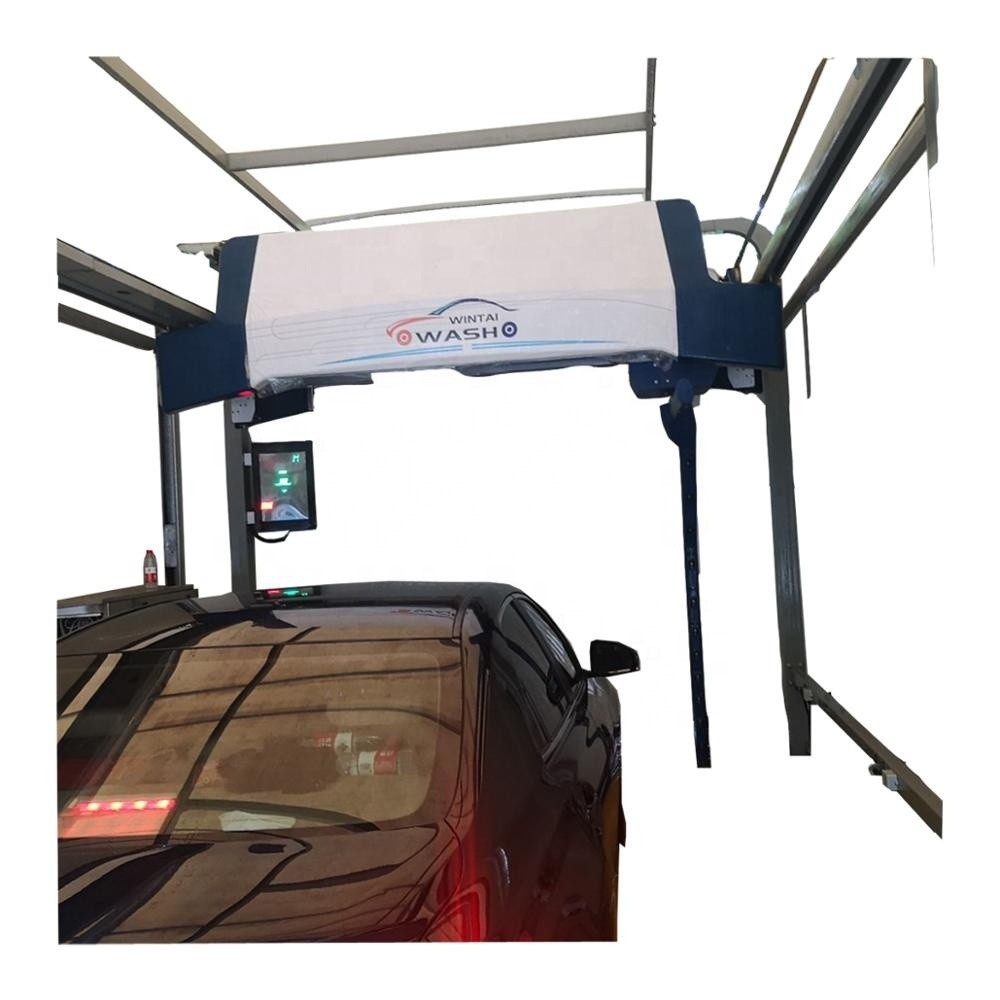

130bar High Pressure Touchless Car Wash Equipment 24.5KW Energy Saving 2

Optional : sewage purification and recycling system
