Features

Specifications

Max Vehicle Suitable: 6000*2500*2080mm

Water Consumption: 65-200L/car

Electricity Consumption: 0.4-1KW.H/car

Total Weight/volume: ≥3300kgs/≥8.5m

Installation(H): 3300mm-3400mm

Air Switch: 100A

Total Power: 13KW/24.5KW

Highlight:

360 Rotating Arms Touchless Car Washer

Self Service Payment Touchless Car Washer

Self Service Automatic Car Washing Machine

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: WinTai

Certification: CE

Model Number: T9

Payment & Shipping Terms

Packaging Details: Standard Export Packages

Delivery Time: 25

Payment Terms: L/C, D/A, T/T, D/P

Supply Ability: 1000 Set/Sets per Month

Gallery

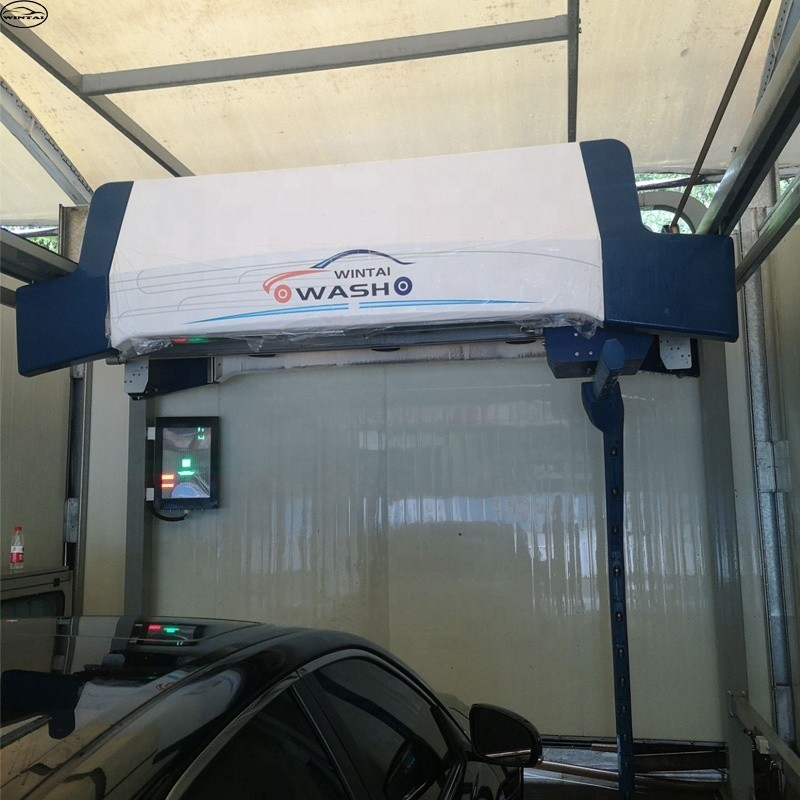

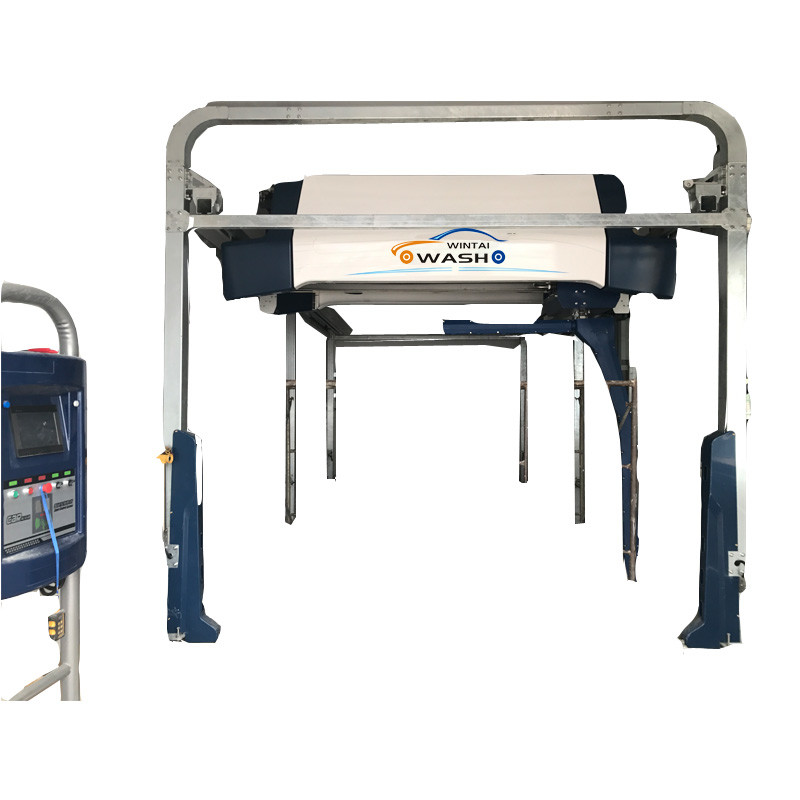

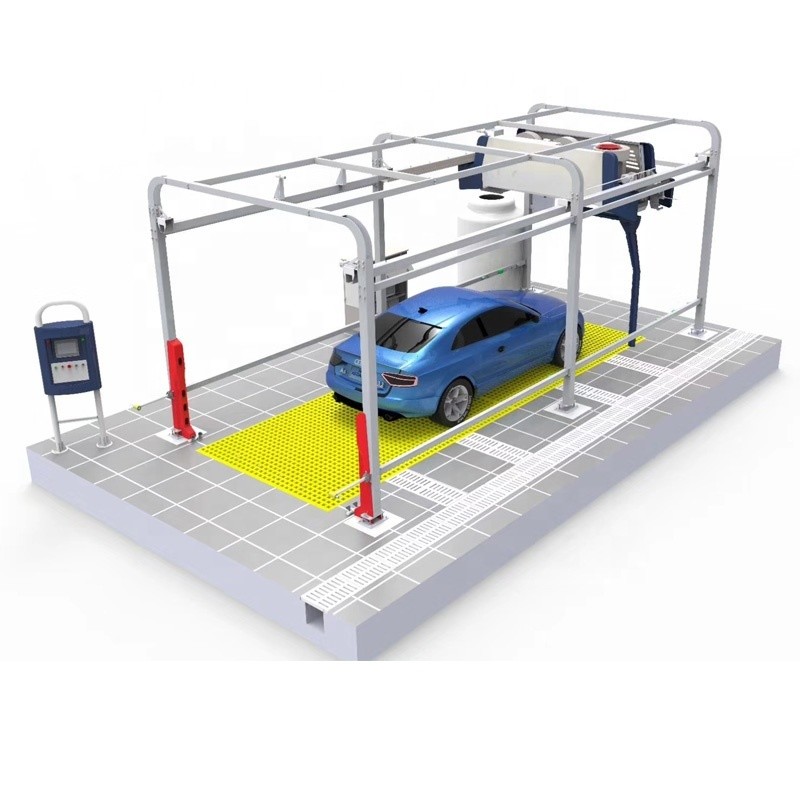

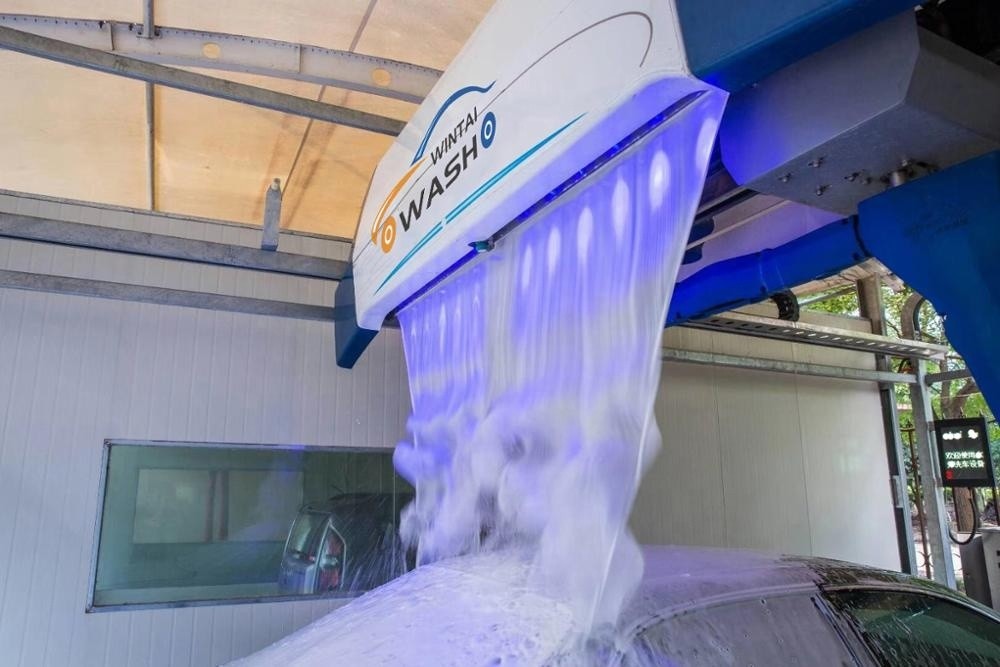

360 Rotating Arms Touchless Car Washer With Self Service Payment System

Product Description

360 Rotating Arms Touchless Car Washer With Self Service Payment System

Touch-Free Automatic Car Washing Machine

This headache-free machine enhances your business operations with minimal maintenance requirements. We prioritize quality in every component, resulting in a robust system weighing 2.8 tons with 8 cubic meters volume.

Streamlined Design Features

Beautiful streamlined shape combining mechanical excellence with practical functionality
Smooth overall structure with optimized walking trolley design for stable and safe operation
Exquisite material selection balancing firmness, lightness, simplicity, and durability

Built-in 360° Rotating Arms

CAE computer-aided simulation design with optimized nozzle placement to prevent water hedging and ensure effective cleaning
Intelligent distance calculation with safety collision prevention and uniform pressure, distance, and speed washing
Complete cleaning process: high-pressure pre-wash, shampoo application, wax coating with 360° coverage, and final drying

Built-in Silent Drying Blower

Elegant appearance with intensive, space-saving structure
Mobile drying system that moves with equipment trolley for superior blower effectiveness

Technical Specifications

Item	Parameters	Function	Remark
Machine Size (L×W×H)	3670mm×1330mm×1300mm	Self-parking and detecting system	√
Pump Size (L×W×H)	1280mm×740mm×600mm	Digital anti-collision system	√
Chemical Station Size (L×W×H)	1160mm×470mm×1350mm	All degree rotary high pressure flushing	√
Max Vehicle Suitable	6000×2500×2080mm	Chassis flushing	√
Installation (L) - Frame Length	7500mm~8000mm	Detergent spraying	√
Installation (W)	3350mm~3686mm	Colorful/high foam detergent spraying	√
Installation (H)	3300mm-3400mm	Wax spraying system	√
Total Weight/Volume	≥3300kgs/≥8.5m³	Built-in automatic drying system	√
Power Requirement	380V/25KW or other voltage	LED indication light guide system	√
Air Switch	100A	Operation permission setting function	√
Total Power	13KW/24.5KW	Self-service payment system	√
Water Pump Motor Power	18.5KW/pressure 100Bar, 100-100 Bar Adjustable, Simens	Voice Prompts function	√
Fan Motor Power	5.5KW/set x4 sets	Car washing counting function	√
Horizontal Motor Power	0.55KW asynchronous frequency conversion speed regulation	Antifreeze system	√
Cross Motor Power	1KW digital servo motor	Oil-free system	√
Rotation Motor Power	1KW digital servo motor	Equal pressure anti-blocking nozzle	√
Chemical Proportion Motor Power	0.37KW	Safe alarm system	√
Central Processing Unit PLC	Industrial intelligent digital control system	Automatic Standby function	√
Running Speed	27 seconds/360° one circle	Self-service payment system	.
Water Consumption	65-200L/car	Colorful Lights	.
Electricity Consumption	0.4-1KW.H/car	Water Recycle System	.
