Name: WT390 Wheel Driving Touchless Car Wash Equipment With Foam Nozzle GQ316L
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: WT390
Price: 1.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Size: 5500*2200*2000

Material: Nm

Warranty: 1 Year, 1 Year

Output Power: >1500W

Model Number: WT390

Rotary Nozzle: Nitto

Bearing: NSK

MOQ: 1

Driving System: Mechanical Wheel+gear Wheel

Frame: 1

Foam Nozzle: GQ316L

Shipping: Sea/railroad

Port: Shenzhen/Guangzhou

Highlight:

Foam Nozzle Touchless Car Wash Equipment

Wheel Driving Touchless Car Wash Equipment

Wheel Driving Auto Car Wash Machine

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Wintai

Model Number: WT390

Payment & Shipping Terms

Packaging Details: Standard Export Packages

Supply Ability: 500 Set/Sets per Month

Gallery

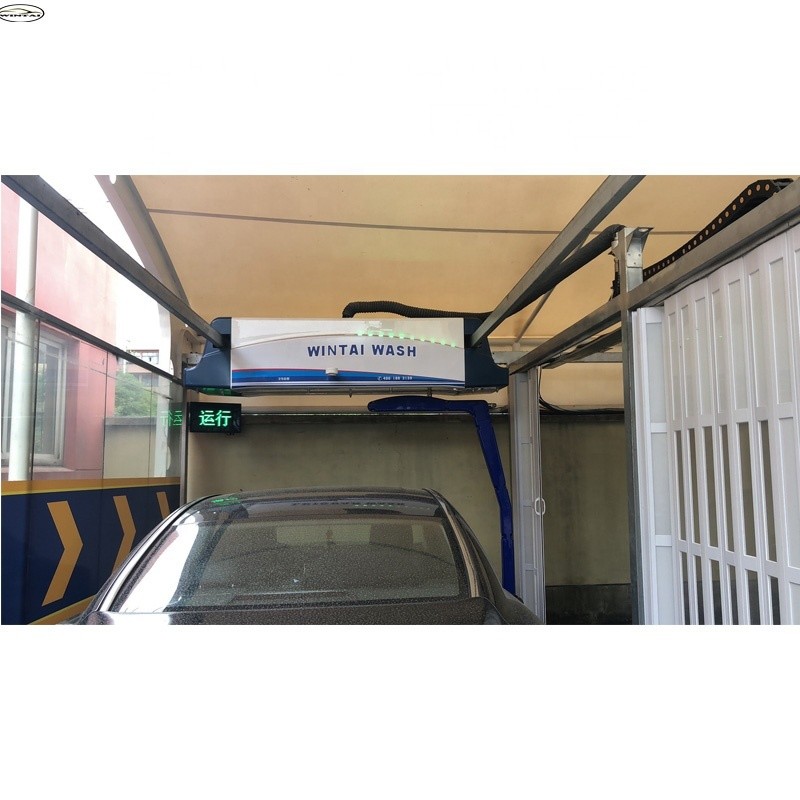

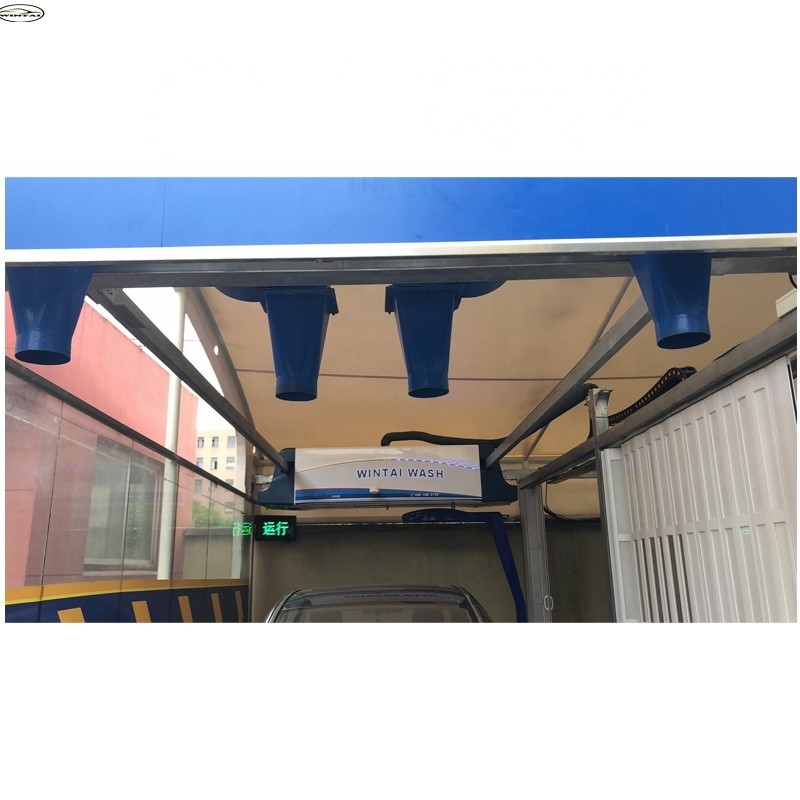

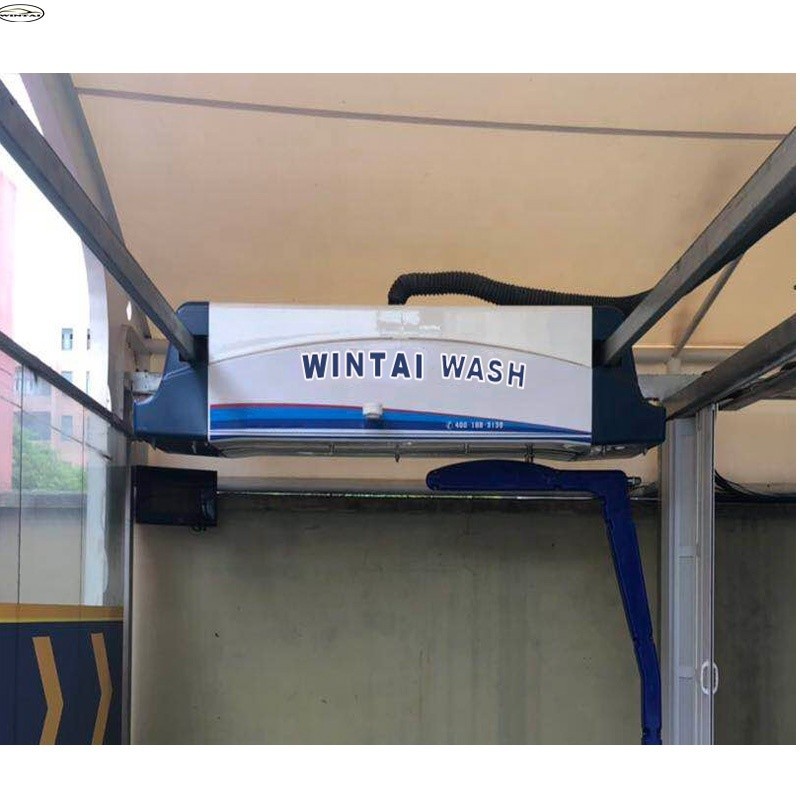

WT390 Wheel Driving Touchless Car Wash Equipment With Foam Nozzle GQ316L

Product Description

Touchless Automatic Car Washer( WT390,update version of WT360)

WT390 Wheel Driving Touchless Car Wash Equipment With Foam Nozzle GQ316L 0

Features:
1.Ultrasonic induction automatically detects the distance of the car to avoid collision, which makes sure washing safer.
2.No blind angle high pressure flushing reaches 70KG or more, ensuring flushing pressure while saving energy and water
3.Automatic spray car wash foam, even and efficient decontamination, save detergent,
4.Automatic chassis inductive flushing solves the trouble that the manual washing can not handle the bottom of the car
5.Electronic touch screen control box makes sure car washing program clearly,with fault self-test and counting function .

Parameters:
Machine Size(mm)	7000×3100×3300	Voltage	380v/3phase/50HZ/16kw or other voltage
Mininum Installation Area Size(mm)	7000×3300×3200	Power consumption	0.21kwh/Car
Max Vehicle Suitable(mm)	5500×2200×2000	Water Consumption	150L/Car
Track Length(mm)	6000	Time	3min/time
Washing Car Type	Normal and commercial vehicles, medium-sized SUV	Speed	20cars/hour
Ground Flushing System	1 set	High Pressure Nozzle	31Pieces

Function
Chassis flushing	yes	Car Body Size Detecting	yes
Wheel rims flushing	yes	Wax Spraying	yes
Shampoo spraying	yes	One Button Reset	yes
High pressure water flushing for car body	yes	One Button Start	yes
Car washing counting	yes	Fault detecting function	yes
Alarm Prompt	yes	External Support Frame	yes
Automatic Chemical Matching System	yes	Colorful Light	yes
Colorful Foam Spraying	yes	Remote Control	yes
Self-Service Payment System	yes, coins and IC card only	Washing Arm	rotate and move freely
External dryers	2.2KW/pc, 4pcs total

Configuration:
Control System(PLC)	Simens PLC	Driving System	Mechanical wheel+gear wheel
Electric Components	Schneider	Bearing	NSK
Safety detecting system	BANNER	Rotary Nozzle	Nitto
Water Pump	Italy brand	High Pressure Nozzle	Lecheler
Sensor	Schneider	Frame	1 set
Drive Motor	water-proof Inverter motor	Foam Nozzle	GQ316L
