Home /Products/Portable Car Lift/1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles

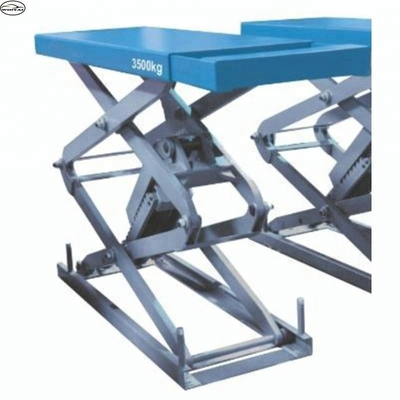

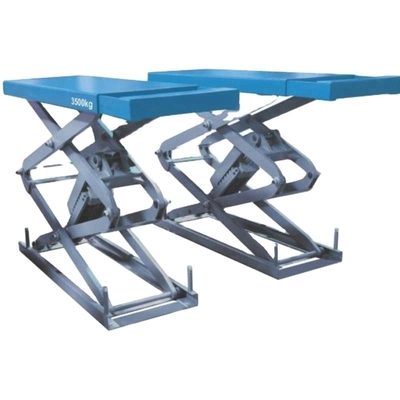

1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles

5 sets
MOQ
$1,780.00/sets >=5 sets
Price
1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles
Features Gallery Product Description Request A Quote
Features
Specifications
Design: SCISSOR
Type: Scissors
Lifting Capacity: >4000kg, 4000kg
Warranty: 1 Years
Product Name: Small Scissor Lift
Length Of Platform: 1510mm
Width Of Platform: 565mm
Original Height: 330mm
Lifting Height: 1990mm
Motor Power: 2380v/220v 2.2kw
Pressure Of Air Supply: 0.4-0.6Mpa
Keyword: Scissors
Highlight:

220v Hydraulic Scissor Car Lift

,

4000kgs Hydraulic Scissor Car Lift

,

1510mm Platform Length Vehicle Scissor Lift
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: wintai
Certification: CE
Model Number: MODEL 40
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 Set/Sets per Month
Product Description

1510mm Platform Length Hydraulic Scissor Car Lift for 4000kgs Vehicles and Small Cars

Product Description
Solid plate Small Scissor Lift Hydraulic scissor car lift 4000kgs

Features:
1.Adopt Italy technology to design

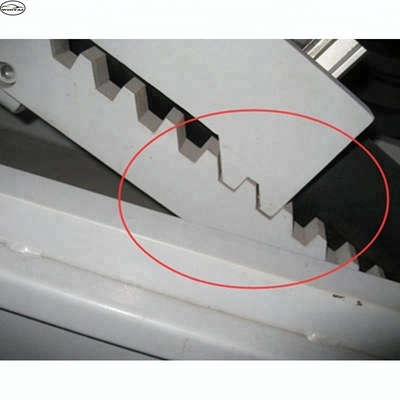

2.Hydraulic balance system and mechanical safety with automatic unlock are equipped
3.24V safety control circuit

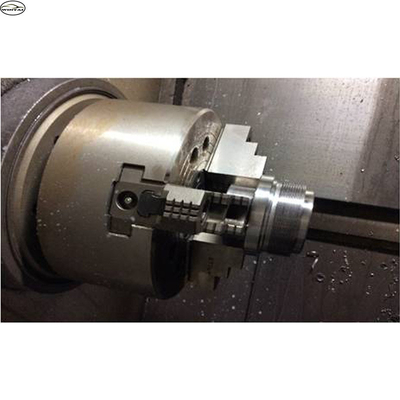

4.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
5.Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device ,overload protection, international
brand oil pipe.
6.The length of platform is adjustable
7.Shot blasting and high temperature baking power coated surface finish.
8.Wear-resisting bearings
9.Optional infrared electronic leveling sensor, optional anti-presser food device
Model No. 40AS 40BS 40CS
Capacity 4000kg 4000kg(extend from one end) 4000kg(extend from two ends)
Length of Platform 1510mm 1560-1760mm 1660-2060mm
Width of Platform 565mm 565mm 565mm
Original Height 330mm 330mm 330mm
Lifting Height 1990mm 1990mm 1990mm
1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles 0
1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles 1
1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles 2
1510mm Platform Length Hydraulic Scissor Car Lift 220v 2.2kw For 4000kg Vehicles 3
Specification
item
value
Design
SCISSOR
Type
scissors
Lifting Capacity
>4000kg
Place of Origin
China

Guangdong
Brand Name
wintai
Model Number
MODEL 40
Warranty
1Years
Product name
Small Scissor Lift
Lifting Capacity
4000kg
Length of Platform
1510mm
Width of Platform
565mm
Original Height
330mm
Lifting Height
1990mm
Motor Power
2380v/220v 2.2kw
Pressure of air supply
0.4-0.6Mpa
keyword
scissors
