4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release

2 sets
MOQ
$2,418.00/sets >=2 sets
Price
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release
Features Gallery Product Description Request A Quote
Features
Specifications
Design: Four Post
Type: Four Cylinder Hydraulic Lift
Lifting Capacity: 4000kgs
Warranty: 12 Months
Lifting Capacity: 4,000kgs (9,000LBS)
Lifting Time: ≤60S
Overall Height: 2120mm (83 7/16")
Lifting Height: 1770mm (69 11/16")
Overall Length (Inc.Ramps): 5512mm (217")
Overall Length (No Ramps): 4600mm (181 1/8")
Overall Width: 3350mm (131 7/8")
Width Between Columns: 3050mm (120 3/4")
Gross Weight: 1050kgs (2,315LBS)
Highlight:

4 Ton Portable Car Lift

,

Wheel Alignment Portable Car Lift

,

Air Safety Lock Portable Automotive Lifts
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: wintai
Certification: CE
Model Number: 7440E
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description
Product Description

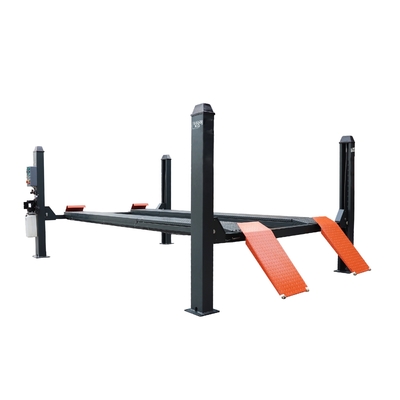

CE approved four post car lift for wheel alignment electro-air safety lock release 4 post wheel alignment lift
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release 0
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release 1
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release 2
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release 3
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release 4
4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release 5
Specification
item
value
Design
Four Post
Type
Four Cylinder Hydraulic Lift
Lifting Capacity
4000kgs
Brand Name
wintai
Model Number
7440E
Warranty
12Months
lifting capacity
4,000kgs (9,000LBS)
lifting time
≤60S
Overall Height
2120mm (83 7/16")
Lifting Height
1770mm (69 11/16")
Overall Length (Inc.Ramps)
5512mm (217")
Overall Length (No Ramps)
4600mm (181 1/8")
Overall Width
3350mm (131 7/8")
Width Between Columns
3050mm (120 3/4")
gross weight
1050kgs (2,315LBS)
* 4,000Kg (9,000LBS.) lifting capacity.
* Electro-air control and 24V low voltage operation system.
* Reliable mechanical self-lock and air-drived safety lock release.
* Max height limit switch to ensure the cylinders work within the stroke.
* Skid proof diamond and low-profile platforms.
* Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device.
Optional manual or pneumatic rolling jack.

* OEM/ODM service can be offered
* Lift color can be offered as customer request.
* Optional manual or pneumatic rolling jack.

1. The minimum ground height is 180mm(7 1/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
2. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.

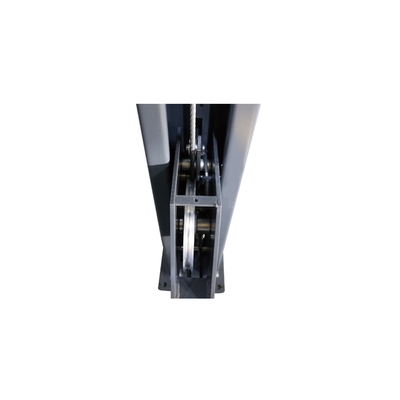

3. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be
effective to ensure the safety of use.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
