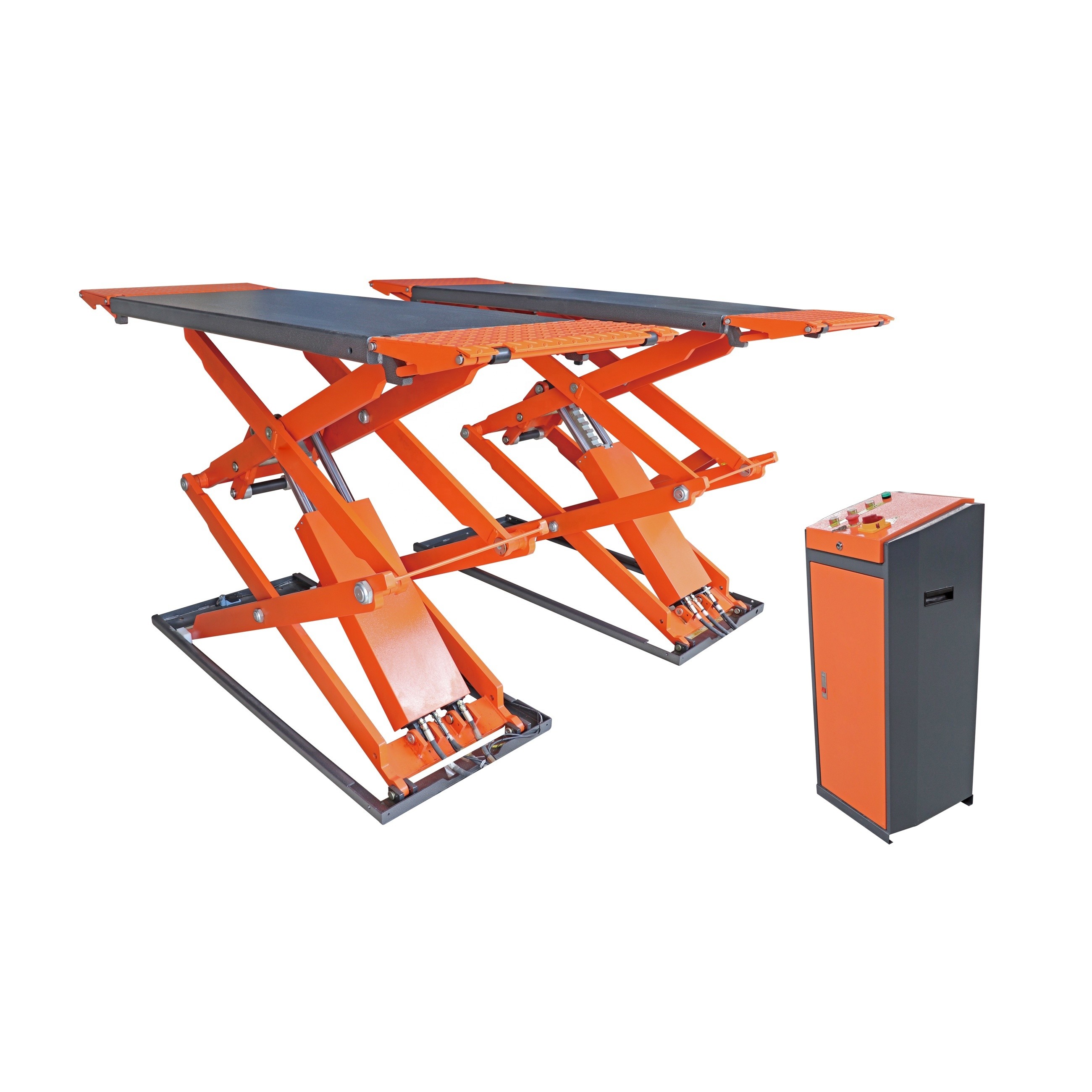

Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock

3 sets
MOQ
$2,280.00/sets >=3 sets
Price
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock
Features Gallery Product Description Request A Quote
Features
Specifications
Design: SCISSOR
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3,500Kg (8,000LBS.), 3,500kgs (8,000LBS)
Warranty: 12 Months
Lifting Time: ≤50S
Lifting Height: 1850mm (727/8")
Minimum Height: 110mm (45 /16")
Runway Length: 1465mm (57 11/16")
Overall Length (Inc.Ramps): 2085mm (82 1/16")
Runway Width: 650mm (25 5/8")
Gross Weight: 913kgs (2,013LBS)
Motor Power: 2.2KW (3HP)
Port: Guangzhou/Shenzhen
Highlight:

1850mm Lifting Height Automotive Scissor Lift

,

Pneumatic Safety Lock Automotive Scissor Lift

,

1850mm Height Auto Scissor Lift
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: 7801
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description
Product Description
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock 0
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock 1
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock 2
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock 3
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock 4
Full Rise Automotive Scissor Lift 1850mm Lifting Height With Pneumatic Safety Lock 5
Super think scissor lift
* CE approval.
* 3,500Kg (8,000LBS.) lifting capacity.
* 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms.
* Durable cylinders with anti-surge valves.
* Pneumatic or electrical safety lock release system.
* 24V low voltage electrical control system.
* Self-lubricated bushing and bearing.
* Low profile design, min height is only 110mm (4 5/16”).
* Standard with height limit switch.

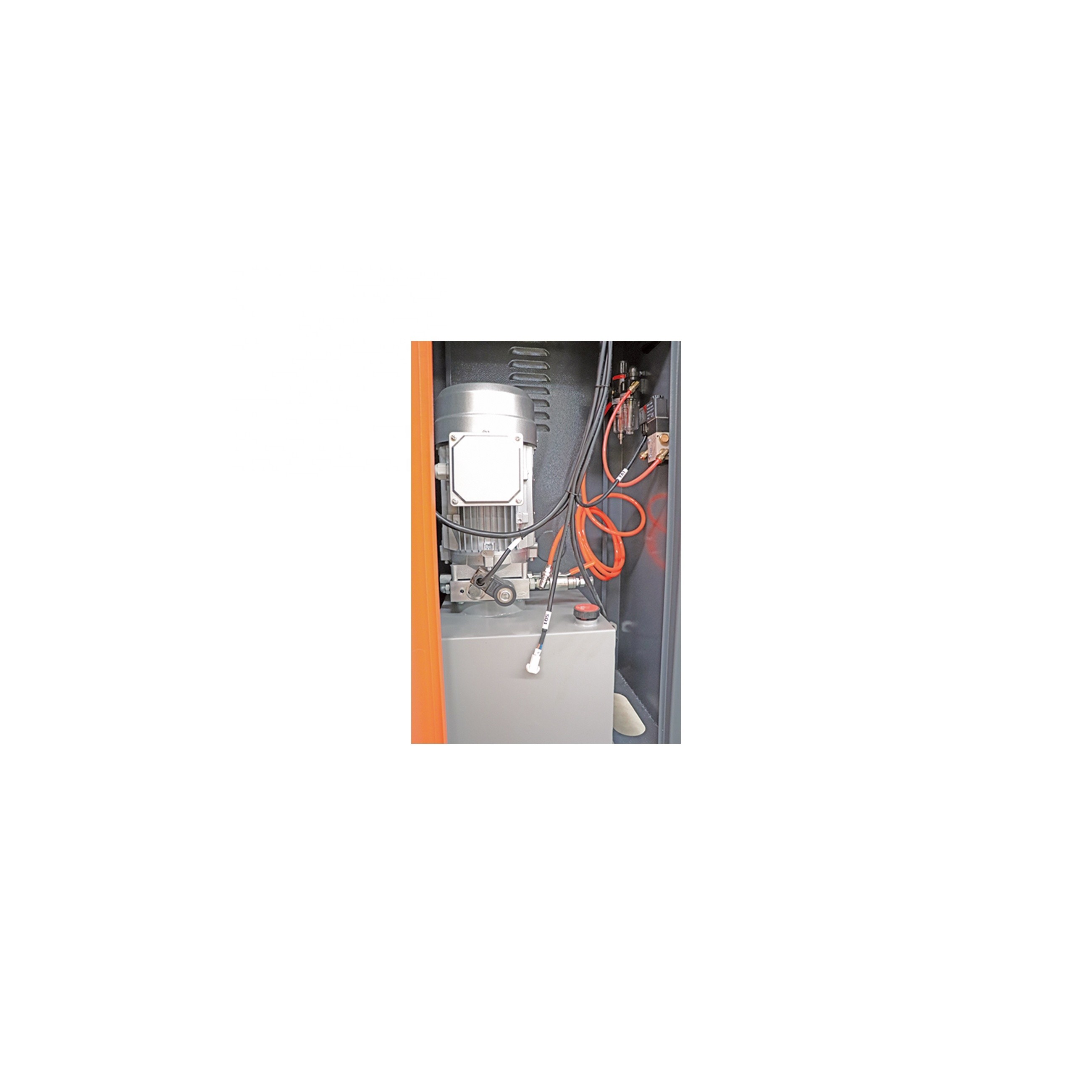

Standard with aluminum motor power unit.

* OEM/ODM service can be offered
* Lift color can be offered as customer request.
Can be optional electric safety lock release.

1. Low profile design, min height is only 110mm (4 5/16”), suitable for low-chassis vehicles.
2. The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded
sleeve, which can ensure the rigidity and strength of the equipment.
3. Large diameter 2-Dual synchronous cylinder (master cylinder 80mm), easier to start, can effectively increase the service life of the hydraulic part;The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
Specification
item
value
Design
SCISSOR
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
3,500Kg (8,000LBS.)
Place of Origin
China

Guangdong
Brand Name
WINTAI
Model Number
7801
Warranty
12Months
Lifting Capacity
3,500kgs (8,000LBS)
Lifting Time
≤50S

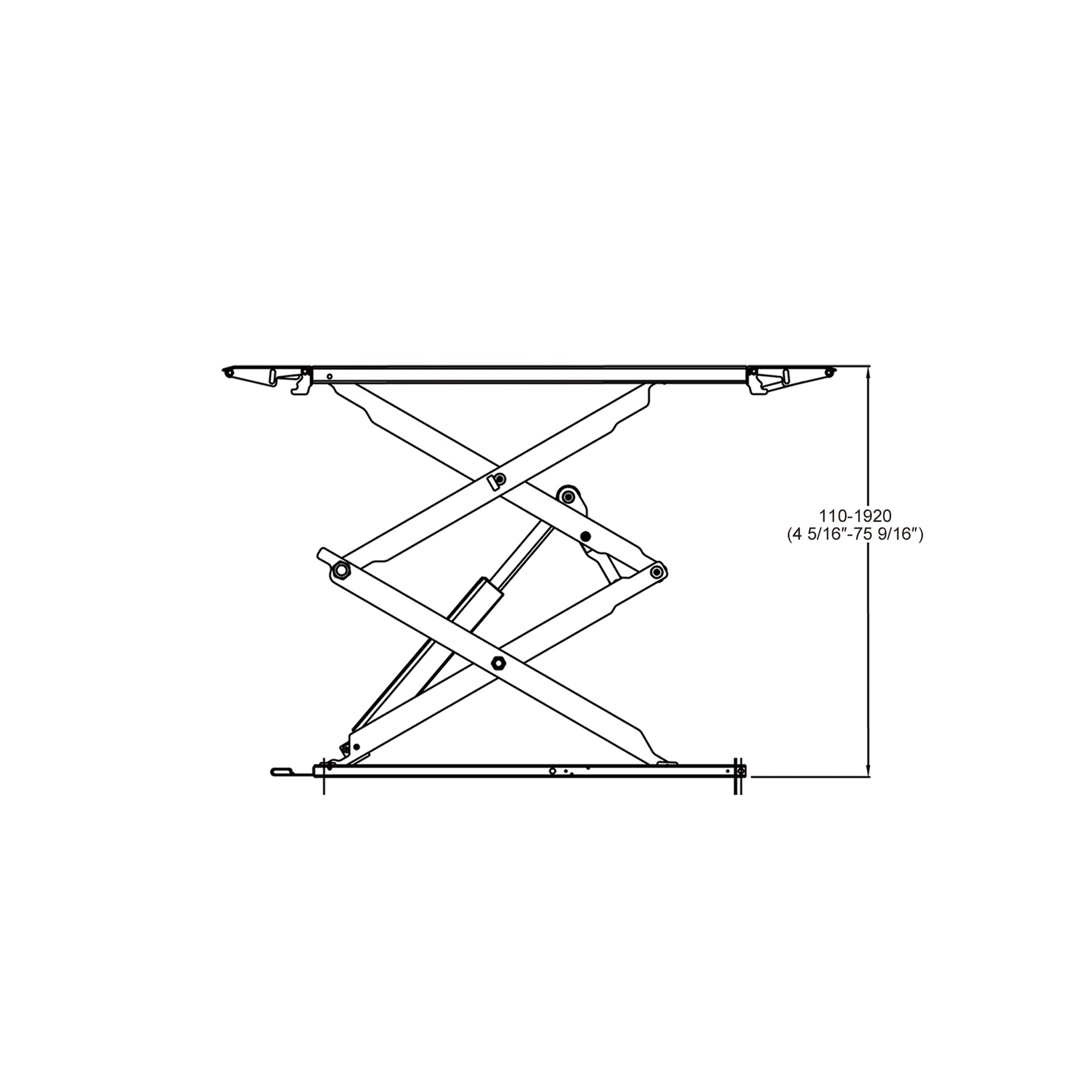

Lifting Height
1850mm (727/8")
Minimum Height
110mm (45 /16")
Runway Length
1465mm (57 11/16")

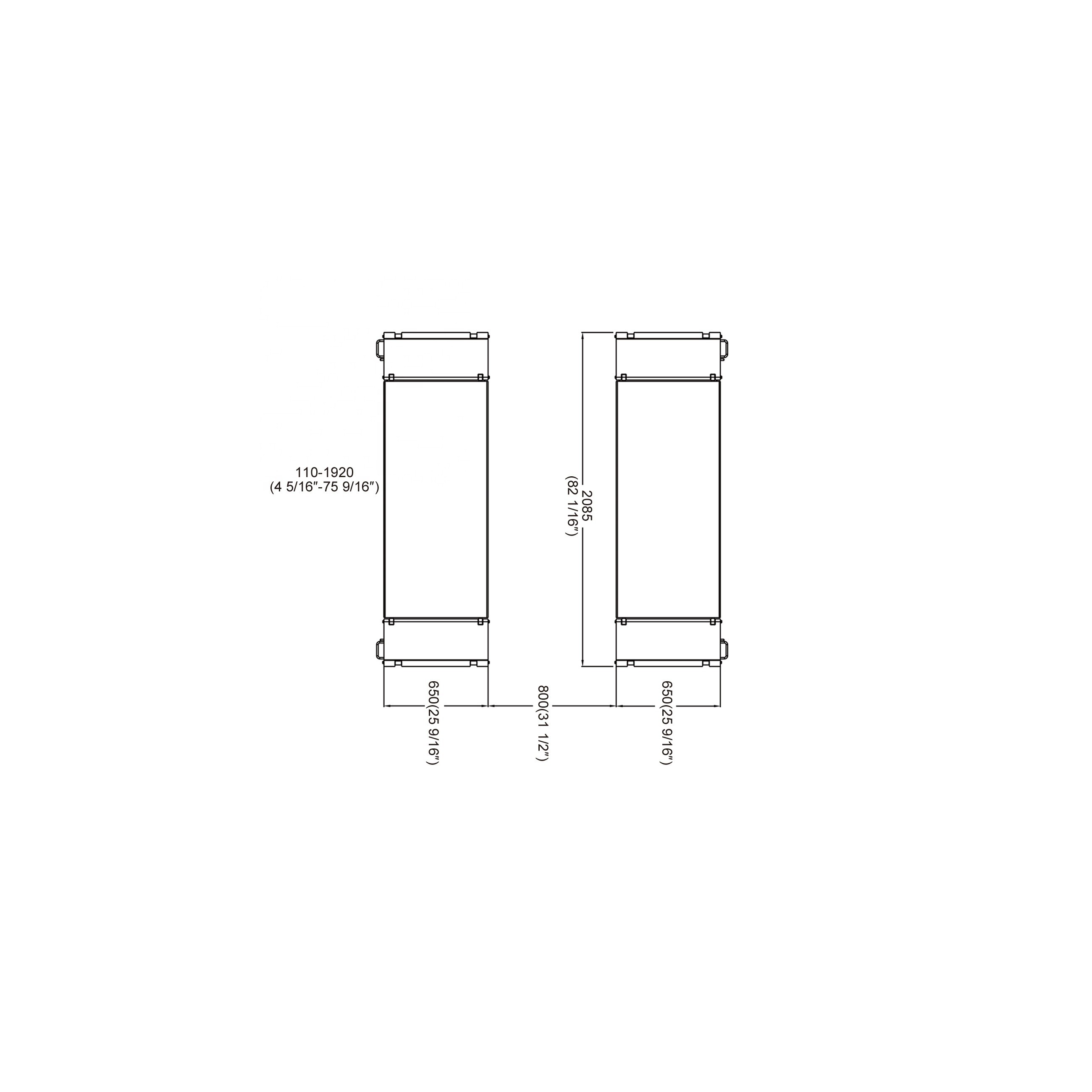

Overall Length (Inc.Ramps)
2085mm (82 1/16")
Runway Width
650mm (25 5/8")
Gross Weight
913kgs (2,013LBS)
Motor Power
2.2KW (3HP)
