High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack

1
MOQ
$4,999.00/sets 1-1 sets
Price
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: 110v/220v
Balancing Speed: Nm
Max. Wheel Weight: Nm
Warranty: 1 Years, 1 Year
Type: 5D Wheel Alignment, Movable
Camera: 5pcs 5 Mega Pixels
Language: Global Multi-language
Targets: 5pcs
Computer: Lenovo
Suitable Rims: 12"-23"
Database: Exceed 20,000
Work With: Lift Withs Secondar Jack
Android System: Support
Port: Guangzhou
Highlight:

High Precision Wheel Alignment System

,

5D Wheel Alignment System

,

5 Cameras Mobile Alignment Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTAI
Certification: CE
Model Number: 5D800
Payment & Shipping Terms
Packaging Details: standard export package
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Set/Sets per Week
Product Description
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondary Jack
5D wheel alignment with 5pcs cameras 5pcs targets high precision, smaller space needed, support Android system, support APP download in mobile phone.

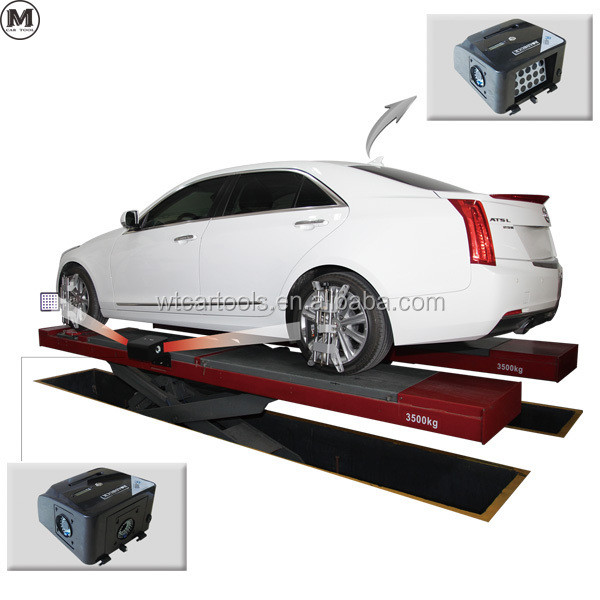

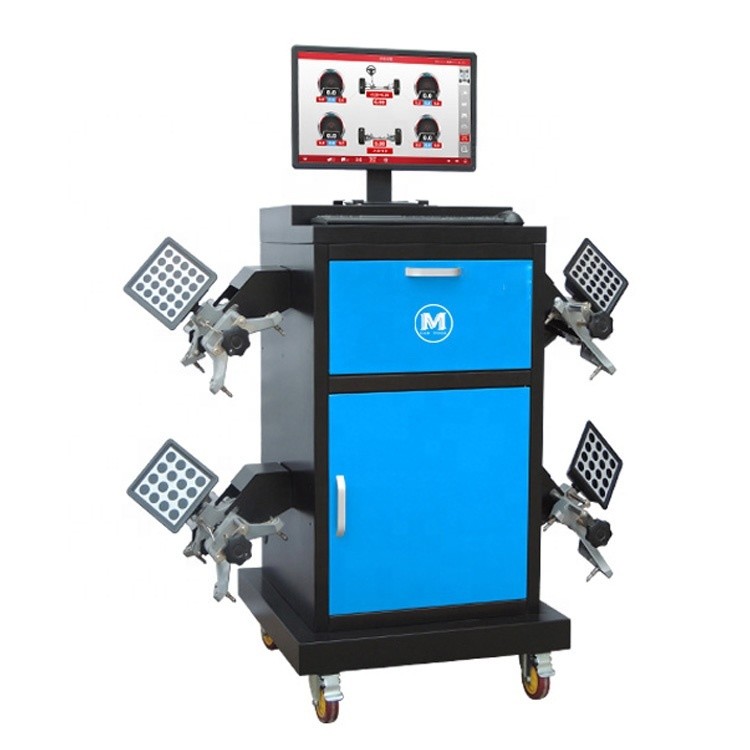

High Precision 5D Wheel Alignment System overview 5D Wheel Alignment System close-up view
Product Features
  • Wireless system with no electronic sensors or components, eliminating errors caused by sensor malfunctions
  • Measurement precision unaffected by vehicle imbalance or car lift variations
  • No wheel and rim compensation required during measurement process
  • Five high-resolution cameras capture targets at closer distances for clearer images and more precise measurements
  • High-strength plastic targets that are lighter, thinner, and more durable
  • Cameras installed on car lift with short shooting distance for enhanced precision
  • Compact design saves valuable operation space
  • Multi-interface capability for easy switching between functions
  • Assistant 3D animation for adjustment guidance
  • Multi-language support including Chinese, English, Portuguese, Arabic, Spanish, Russian, Japanese, Korean, French, German, and Italian
  • Integration with ALLDATA database with over 20,000 original vehicle databases
  • Car body dimension and wheel rolling radius measurement capabilities
  • Jack-up adjustment function for convenient vehicle lifting and camber adjustment
Technical Parameters
ITEMS Front Wheel Measurement Precision Front Wheel Measurement Range Rear Wheel Measurement Precision Rear Wheel Measurement Range
TOE ±0.02 ±20° ±0.02 ±20°
CAMBER ±0.02 ±15° ±0.02 ±15°
S.A.I ±0.02 ±26° x x
CASTER ±0.02 ±26° x x
THRUST ANGLE x x ±0.02 ±5°

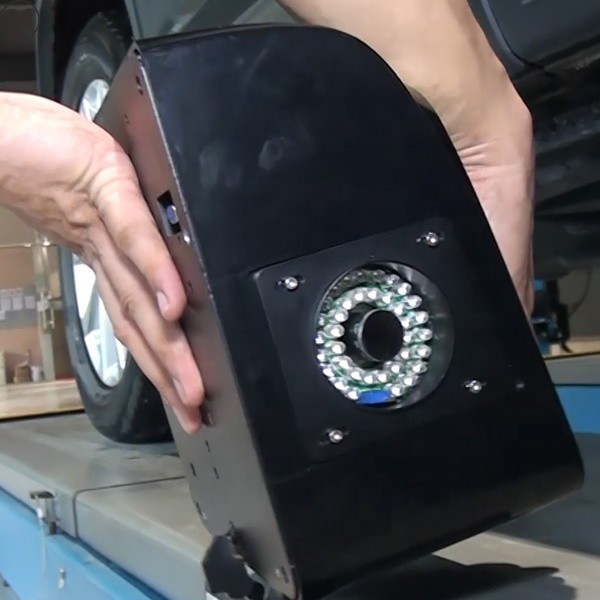

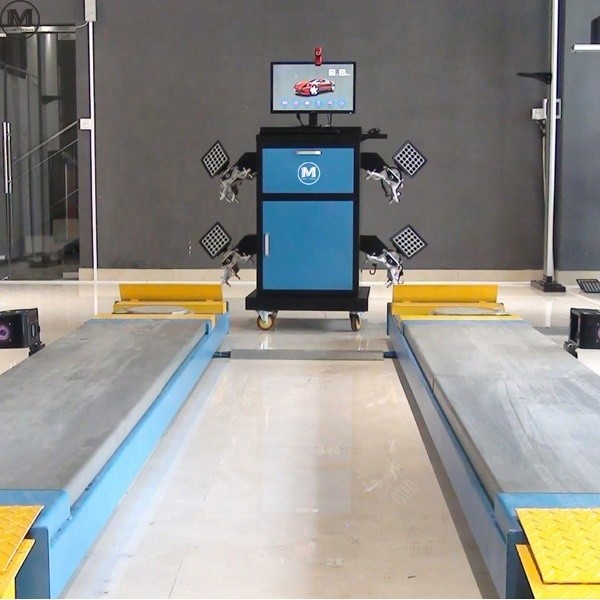

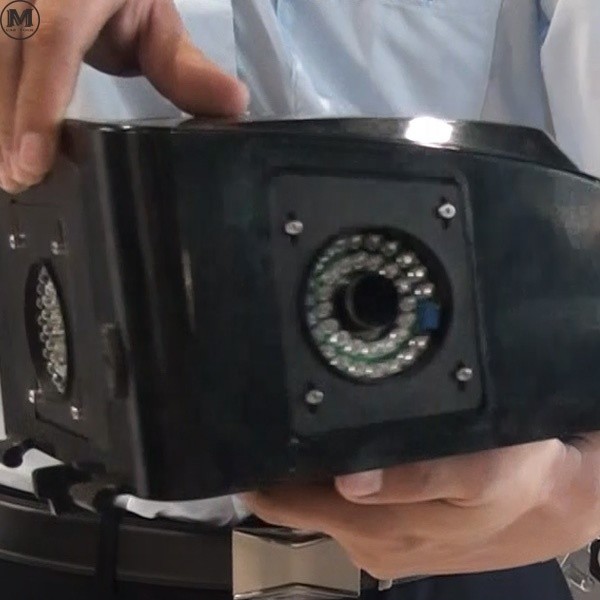

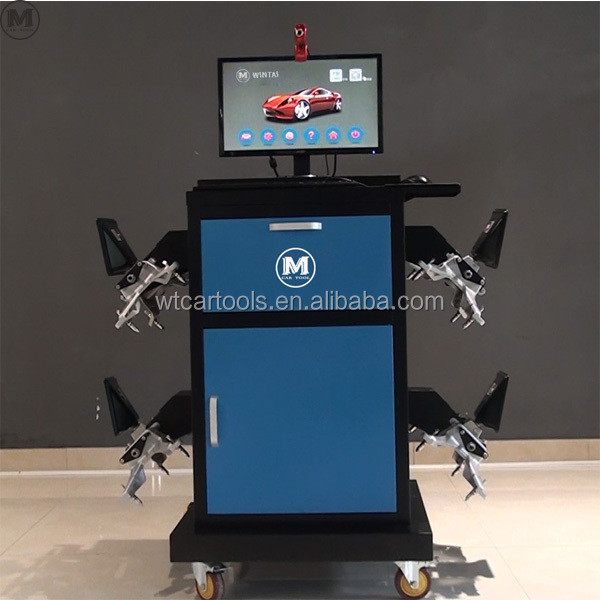

Wheel alignment system technical diagram Alignment system installation view Camera and target setup System interface display Measurement process demonstration Vehicle alignment application System components detail Complete alignment system package
