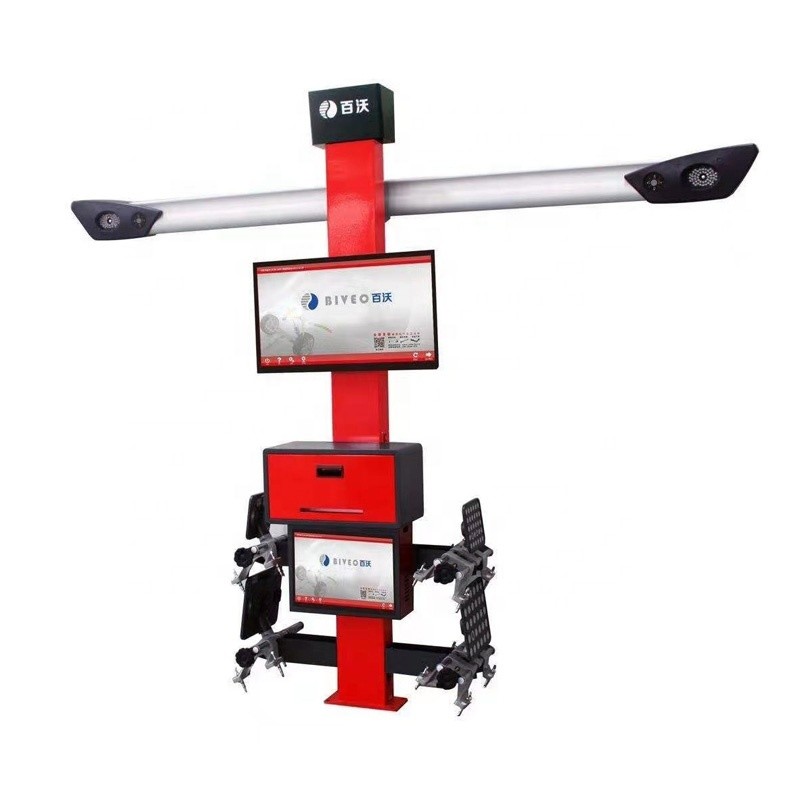

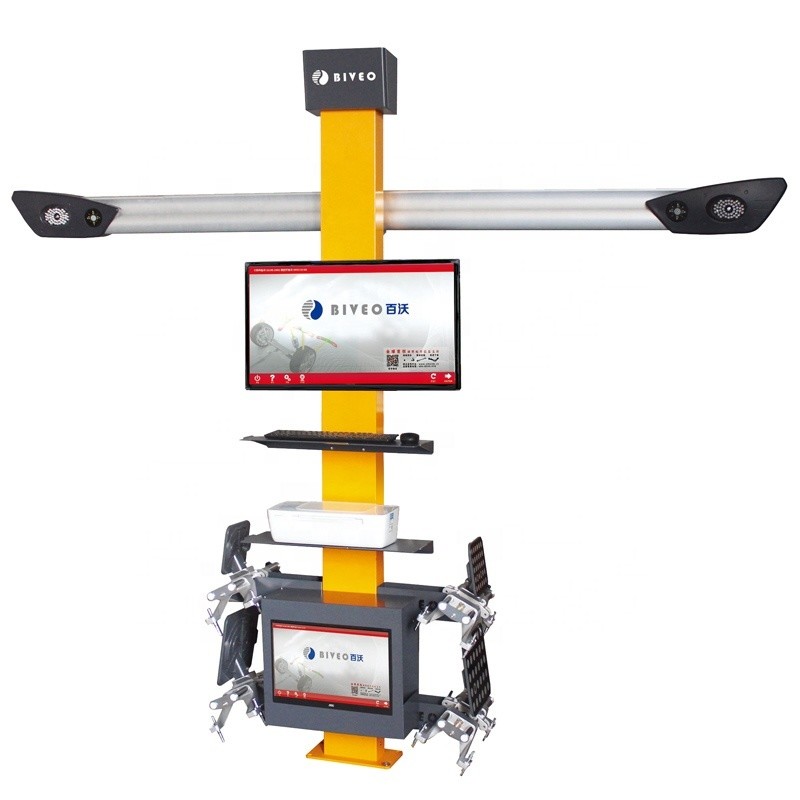

BIVEO four-wheel alignment system 3D car wheel aligner featuring high accuracy and complimentary Alldata updates.

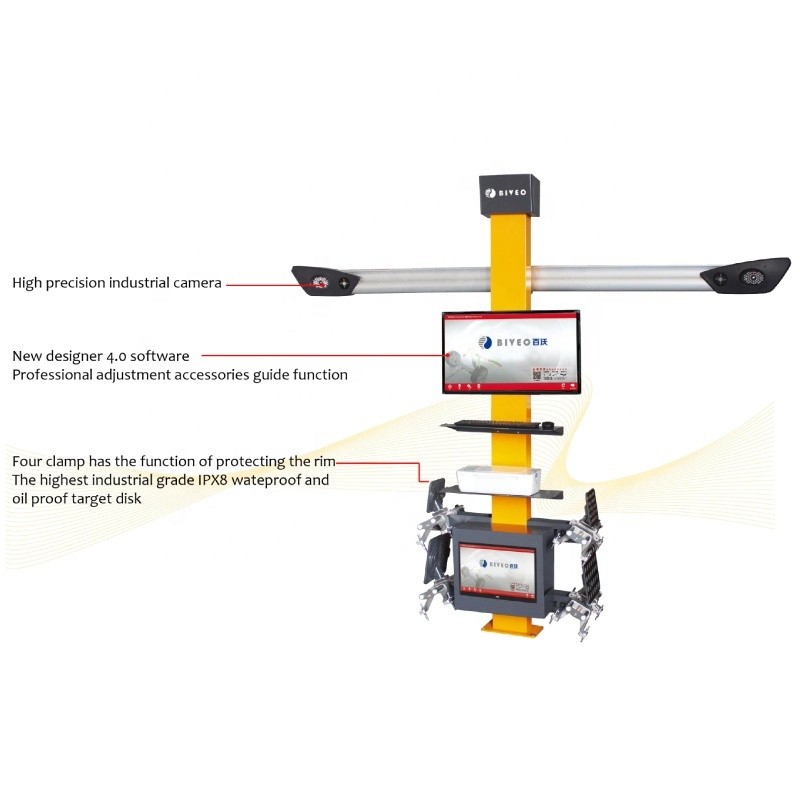

Compact cabinet, big screens, Hedy computer, brand printer, target plate, pylon bracket, brake fixer, steering wheel fixer, wedge block, turntable, transition block of turntable, and 4.0 software.
Basic Functions: Camber, caster, Kingpin Inclination, toe angle, set back, thrust angle, and more.
Extended Functions: Axis deviation measurement, wheel deviation measurement, animation, single-wheel measurement, vehicle lift measurement function, straight steering wheel function, and alignment platform levelness detection function.
| Measurement Project | Accuracy | Measurement Range |
|---|---|---|
| Display Accuracy | 1´/1mm | - |
| Camber | ±2´ | ±10° |
| Caster | ±6´ | ±20° |
| Kingpin Inclination | ±6´ | ±20° |
| Toe-in & Toe-out | ±2´ | ±20° |
| Set Back | ±2´ | ±5° |
| Thrust Angle | ±2´ | ±5° |
| Wheel Deviation | ±2mm | - |
| Axis Deviation | ±2mm | - |
