Name: Sunshine Aligner Movable Wheel Alignment Equipment With Dual Screen And Optional ADAS
Brand: Guangzhou Wintai Car Tools Co., Ltd.
SKU: S90-F8
Price: 24,000.00 USD
Availability: InStock

Sunshine Aligner Movable Wheel Alignment Equipment With Dual Screen And Optional ADAS

MOQ

$6,280.00/sets 1-1 sets

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Power: W

Power Supply: V

Balancing Speed: S

Max. Wheel Weight: 80kgs

Warranty: 8 Years

Movable Type: Yes

Auto Tracking Function: Available

Screen: 32" & 19"

Suitable Rims: 12"-23"

Overvoltage Protection: Yes

Data: A*utodata

Support ADAS: Optional

Dual Screen: 32"+19"

Redesign Cars: Support

Port: Guangzhou

Highlight:

Movable Wheel Alignment Equipment

Dual Screen Wheel Alignment Equipment

ADAS Portable Alignment Machine

Basic Infomation

Place of Origin: Shandong, China

Brand Name: SUNSHINE

Certification: CE

Model Number: S90-F8

Payment & Shipping Terms

Packaging Details: standard export package

Delivery Time: 15

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 Set/Sets per Month

Gallery

Sunshine Aligner Movable Wheel Alignment Equipment With Dual Screen And Optional ADAS

Product Description

Sunshine Aligner Movable Wheel Alignment Equipment With Dual Screen And Optional ADAS

Sunshine Wheel Alignment Equipment - Sunshine Aligner movable wheel alignment machine

From same manufacturer of H-offmann

The most precise wheel alignment in China.

Standard Configuration

A small Compact cabinet
Brand computer
Canon printer

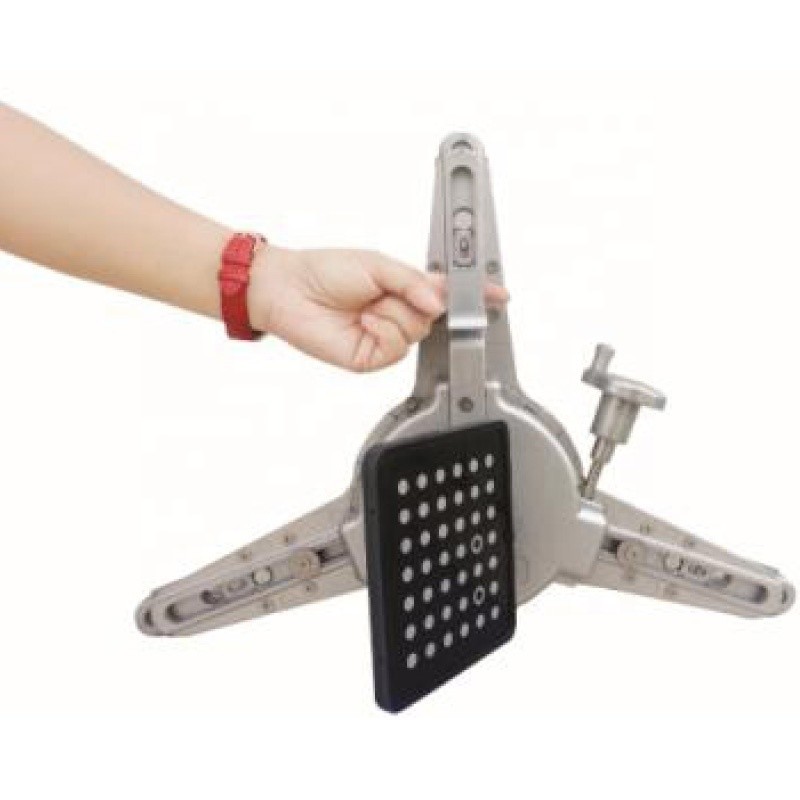

Target plate
Pylon bracket
Brake fixer
Steering wheel fixer
Wedge block
Turntable
Transition block of turntable

Software Functions

Basic Functions:

Camber
Caster
Kingpin Inclination
Toe angle
Set back
Thrust Angle

Extended Functions:

Steering wheel aligning
Vehicle lift measurement
Single wheel measurement
Inspection of lifting height level
Axis deviation measurement
Wheel deviation measurement

Key Features

Overvoltage protection
Central integrated unit with super anti-interference ability
Special design of steering wheel fixer without spring for enhanced stability
USB 4.0 for faster data transfer
Dupont power coating with up to 8 years lifetime
Computer with 3-year warranty
Self-development software with A*UTODATA database
32" & 19" dual screen display
3-feet clamps - more endurable and stable than 4-feet clamps
Small targets optimized for 640 Megapixel cameras
VIN scanning gun - scan VIN without needing to select car model
Redesigned accessories recommendable in system to increase profitability
Support for ADAS SYSTEM
Specific functions for German cars
Specific functions for redesigned cars

Technical Specifications

Measurement Project	Accuracy	Measurement Range
Display Accuracy	1´/1mm	-
Camber	±2´	±10´
Caster	±6´	±20´
Kingpin Inclination	±6´	±20´
Toe-in & Toe-out	±2´	±20´
Set Back	±2´	±5´
Thrust Angle	±2´	±5´
Wheel Deviation	±2´	-
Axis Deviation	±2´	-
