Fully Automatic Tunnel Car Wash Machine High Pressure Car Wash Machine 10 Brushes Rollover Car Wash Systems PLC Control System

1
MOQ
discussible
Price
Fully Automatic Tunnel Car Wash Machine High Pressure Car Wash Machine 10 Brushes Rollover Car Wash Systems PLC Control System
Features Gallery Product Description Request A Quote
Features
Specifications
Overall Dimensions: 11264x3800x3440mm
Mains Voltage: 3-phase/AC380V
Total Power: 34.82KW
Water Supply: DN25mm/Waterflow Rate≥200L/min
Air Pressure: 0.75-0.9Mpa/Airflow Rate≥0.1m³/min
Water/electricity Consumptio: 150L/Car, 0.6kw/Car
Shampoo Consumption: 7ml/Car
Water Wax Consumption: 12ml/Car
Assembling Range: 13224x3800mm
Moving Range: 13224x3800mm
Available Size For Car: Car 5200x2150x2200mm
Car Wash Capacity: 45-55cars/hour
Highlight:

PLC Car Wash Machine

,

Fully Automatic Tunnel Car Wash Machine
Basic Infomation
Place of Origin: China
Brand Name: Wintai
Certification: CE
Model Number: WT-673
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100
Product Description
Fully Automatic Tunnel Car Wash Machine

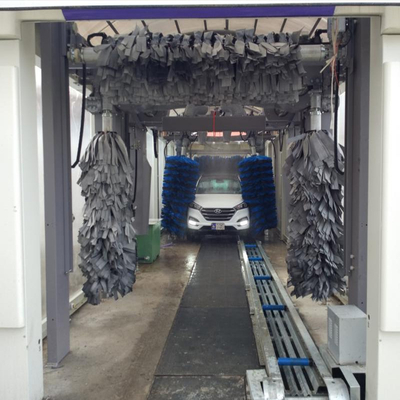

Fully automatic tunnel car wash machine in operation
Key Features

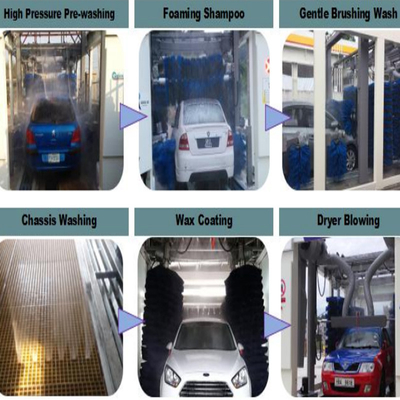

  • High pressure water pre-washing system
  • Shampoo (foams) sprinkling and wax washing systems
  • Ten brushes with foam material and lifelong warranty
  • Three blowers and dryer brushes for complete and precise drying
  • PLC control system with user-friendly operation panel
  • Intelligent avoidance system for all vehicle types
  • Main technology and machine design from Japan
  • Electroplated conveyor with tire corrector device system
  • Hot-dip galvanized steel frame for anti-rust protection
  • Imported control systems, motors, and electrical apparatus
  • One-year warranty with lifelong maintenance service
  • On-site installation and maintenance training by technicians
Technical Specifications
Overall dimensions 11264×3800×3440mm Mains voltage 3-phase/AC380V
Assembling range 13224×3800mm Water supply DN25mm/Waterflow rate≥200L/min
Moving range 13224×3800mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Available car size 5200×2150×2200mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Vehicle compatibility Car/jeep/coach within 10 seats Water/electricity consumption 150L/Car, 6kw/Car
Washing time 1'30"/Car Shampoo consumption 7ml/Car
Car wash capacity 45-55 cars/hour Water wax consumption 12ml/Car
Components & Parts
Standard Parts Quantity Remarks Standard Parts Quantity Remarks
Shampoo sprinkling system 1 set Available Conveyer motor FUKUTA
Water wax sprinkling system 1 set Available Gear motor 1 TKA
Shape imitating dry system 1 set Available Brush motor TSUBAKI
High pressure water device 1 set Available Photoelectric sensor 6 Pair Banner
Vehicle bottom wash 1 set Optional Frequency converter Toshiba
Brushes 10 Available Fan electric motor 4 ABB
Intelligent equipment data Available Magnetic valve CKD/SMC/Koganei
Fault self-detection Available IP67 waterproof electric motor 7 sets SKK
Frame 1 set Hot-dip galvanized Contactor Mitsubishi
Electronic control system 1 set MK cabinet Hot protective relay Mitsubishi
Conveyer system 1 set Available
Project Installation

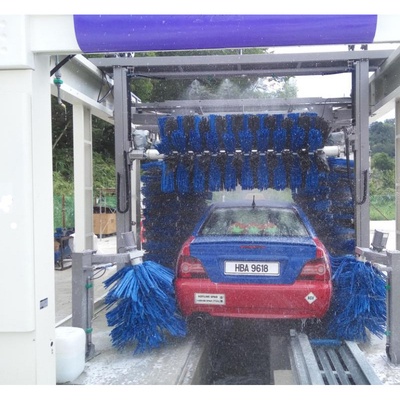

Professional installation of tunnel car wash system Completed tunnel car wash installation project
