Fully Automatic Tunnel Car Wash Machine High Pressure Car Wash Machine 10 Brushes Rollover Car Wash Systems PLC Control System

1
MOQ
discussible
Price
Fully Automatic Tunnel Car Wash Machine High Pressure Car Wash Machine 10 Brushes Rollover Car Wash Systems PLC Control System
Features Gallery Product Description Request A Quote
Features
Specifications
Overall Dimensions: 11264x3800x3440mm
Mains Voltage: 3-phase/AC380V
Total Power: 34.82KW
Water Supply: DN25mm/Waterflow Rate≥200L/min
Air Pressure: 0.75-0.9Mpa/Airflow Rate≥0.1m³/min
Water/electricity Consumptio: 150L/Car, 0.6kw/Car
Shampoo Consumption: 7ml/Car
Water Wax Consumption: 12ml/Car
Assembling Range: 13224x3800mm
Moving Range: 13224x3800mm
Available Size For Car: Car 5200x2150x2200mm
Car Wash Capacity: 45-55cars/hour
Highlight:

High Pressure Tunnel Car Wash Machine

,

10 Brushes Tunnel Car Wash Machine

,

PLC Automated Car Wash Equipment
Basic Infomation
Place of Origin: China
Brand Name: Wintai
Certification: CE
Model Number: WT-673
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100
Product Description
Fully Automatic Tunnel Car Wash Machine
High Pressure Car Wash Machine with 10 Brushes Rollover Car Wash Systems and PLC Control System

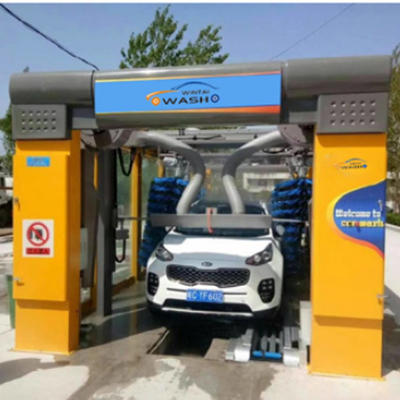

Fully automatic tunnel car wash machine in operation
Key Features
  • High pressure water pre-washing system
  • Shampoo (foams) sprinkling and wax washing systems
  • Ten brushes with foam material and lifelong warranty
  • Three blowers and dryer brushes for complete and precise drying
  • PLC control system with user-friendly operation panel
  • Intelligent avoidance system for all vehicle types
  • Main technology and machine design from Japan
  • Electroplated conveyor with tire corrector device system
  • Hot-dip galvanized steel frame for rust prevention
  • Imported control systems, motors, and electrical apparatus
  • One-year warranty with lifelong maintenance service
  • On-site technician installation and maintenance training
Technical Specifications
Overall dimensions 11264×3800×3440mm Mains voltage 3-phase/AC380V
Assembling range 13224×3800mm Water supply DN25mm/Waterflow rate≥200L/min
Moving range 13224×3800mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Available car size 5200×2150×2200mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Vehicle compatibility Car/jeep/coach within 10 seats Water/electricity consumption 150L/Car, 6kw/Car
Washing time 1'30"/Car Shampoo consumption 7ml/Car
Car wash capacity 45-55 cars/hour Water wax consumption 12ml/Car

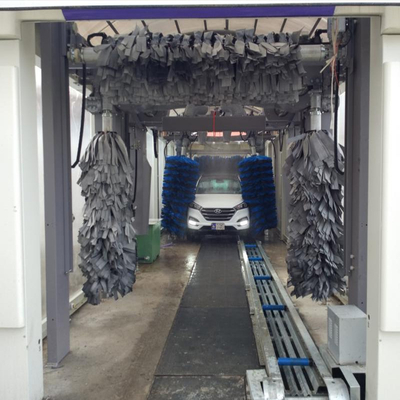

Close-up view of car wash machine components
Project Installation

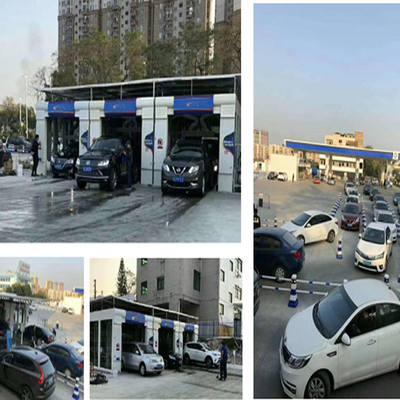

Car wash machine installation project overview Detailed installation view of car wash system
