Return Type Automatic Car Washing Machine With Brushes Automated Car Wash Equipment High Quality Automatic Car Washer High Pressure Car Wash Machine

1
MOQ
To be discussed
Price
Return Type Automatic Car Washing Machine With Brushes Automated Car Wash Equipment High Quality Automatic Car Washer High Pressure Car Wash Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Total Power: 15KW
Water Supply: DN25mm/Waterflow Rate≥200L/min
Air Pressure: 0.75-0.9Mpa/Airflow Rate≥0.1m³/min
Water/electricity Consumptio: 75L/Car, 0.3kw/Car
Overall Dimensions: 1660x3600x3050mm
Available Size For Car: 5200x2100x2100mm
Assembling Range: 11000x4300x3300mm
Site Requirement: 11000x4300mm
Car Wash Capacit: 15-20cars/hour
Mains Voltage: 3PHASE AC380V /50HZ
Highlight:

High Pressure Automatic Car Washing Machine

,

High Quality Automatic Car Washing Machine

,

Brushes Automatic Car Washing Machine
Basic Infomation
Place of Origin: China
Brand Name: WINTAI
Certification: ce
Model Number: WT-370
Payment & Shipping Terms
Packaging Details: Standard export packaging
Delivery Time: 25
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100
Product Description

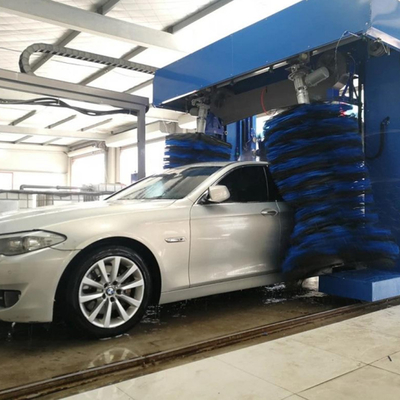

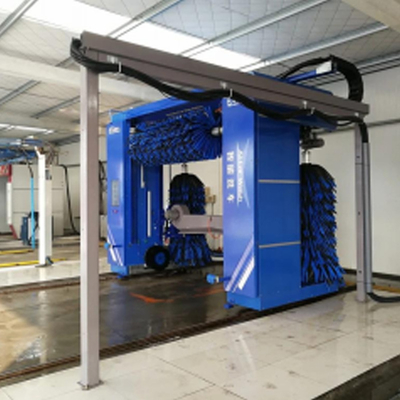

Return Type Automatic Car Washing Machine
Product Overview

The Return Type Automatic Car Washing Machine features an advanced design with gate, brushes, and conveyor system. During operation, the conveyor moves the vehicle forward and back to optimal washing positions, ensuring superior cleaning results.

Key Advantages
  • Automatic vehicle exit after washing cycle completion
  • Simple and intuitive operation
  • Compact footprint requiring minimal space
WT-370 Fully Automatic Rollover Car Wash Machine
WT-370 Fully Automatic Rollover Car Wash Machine
Advanced Features
  • High-pressure clean water washing system
  • Shampoo (foam) sprinkling and wax washing systems
  • Three foam material brushes and two nylon wheel brushes
  • Four high-performance blowers for complete and precise drying
  • PLC control system with user-friendly operation panel
  • Intelligent avoidance system adaptable to various vehicle types
  • Core technology and machine design from Japan
  • Multiple washing programs for diverse cleaning requirements
  • Hot-dip galvanized steel frame for superior rust resistance
Technical Specifications
Overall dimensions 1660×3600×3050mm Mains voltage 3-phase/AC380V
Assembling range 11000×4300×3300mm Water supply DN25mm/Waterflow rate≥200L/min
Moving range 11000×4300mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Available size for car 5200×2100×2100mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Available car to wash Car/jeep/coach within 10 seats Water/electricity consumption 75L/Car, 0.3kw/Car
Washing time 2'45" (1 rollover)/4'15" (2 rollover) Shampoo consumption 20ml/Car
Car wash capacity 15-20 cars/hour Water wax consumption 15ml/Car
Main Component Parts

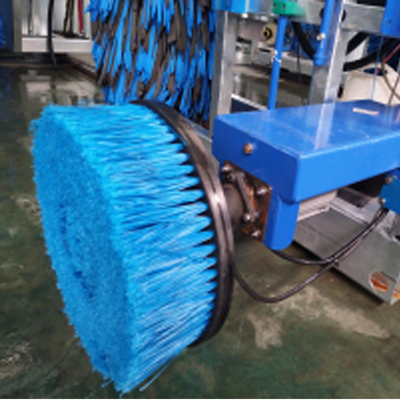

Main component part of automatic car wash machine Component part showing brush system Control panel component Conveyor system component Drying system component Frame structure component Water system component Electrical component Complete assembly component
