Special Feature
Users can set chemical consumption automatically on touch screen according to the dirty degree of vehicles.
Fine Mode :(5 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Low foam detergent spraying--High pressure car body flushing--Wax Spraying--Wax Rain--Drying
Fast Mode: (2 minutes/car): start--chassis/wheel rim flushing--Colorful high foam detergent spraying--High Pressure Car Body Flushing--Wax Spraying--Wax Rain--Drying
Standard Cleaning agent: 1. Low foam cleaning liquid,it’s called wipe free cleaning liquid also, containing soil loosening agent,
2. High foam cleaning liquid,it’s called magic shampoo also,suitable for extremely dirty cars.It has car care function.
3. Colorful bubble cleaning liquid,it’s called colorful waterfall.
4. Water wax
| Three-phase electricit |
380V/55Kw |
| Electricity requiremen |
380V/18.5Kw/50Hz 380V/22Kw /50Hz(optional) |
| Installation dimensi |
8000*3800*3400(mm) |
| Maximum car wash siz |
6000*2500*2050(mm) |
| Track lengt |
8000mm*6mm IS 8000mm*6m |
| Weight/Volume |
2650kg/13m³ |
| Water pump motor(k |
Siemens energy-saving motors 380V/18.5 |
| Fan motor(kw |
Mobile fan 5.5kw*(4+2) |
| Liquid water pump |
304 stainless stee |
| 360 high-pressure flushing |
304 stainless steel rotating arm |
| Flushing pressu |
80-120kg |
| Car wash time(min) |
Quick car wash 2min Fine car wash 6min |
| Liquid consumption(ml) |
Metering pump/20-50ml |
| Power consumption(kWh) |
0.5-0.8/per |
| Water consumption(L) |
100-200L |

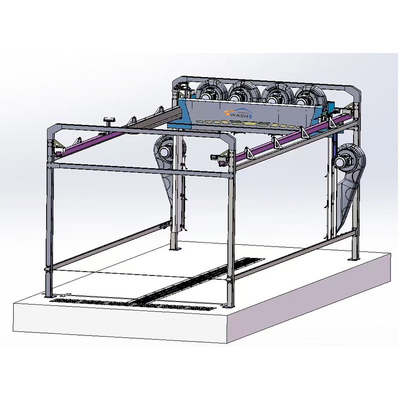

Simple, streamlined design
1. Beautiful shape with streamline, simple and fashion, beauty both in mechanical and practical.
2. Smooth overall structure,Reasonable walking trolley structure, make sure the machine runs more stable and safe.
3. Exquisite material selection, giving consideration to firmness and lightness, simplicity and durability.
Built-in 360 degree rotating arms
1. CAE computer aided simulation design, reasonable placement of nozzle angle and position, to avoid water hedging to weaken the cleaning effect.
2. Intelligent distance calculation, safety and collision prevention function. Equalize pressure, equalize distance and uniform speed washing way.
3.High pressure water pre-wash, shampoos, waxing coating with 360 degree coverage, and finally drying.
Bulit-in slient drying blower
1. Built-in drying blower, elegant appearance and intensive structure, more beautiful and space saving.
2. Blower can moving along with equipment trolley, mobile drying with great blower effect.
