Features

Specifications

Device Size: 25×4×3.5m

Installation Area: 25000mm Long × 4000mm Wide

Power Requirem-ent: AC380V50Hz (5-wire System)

Flatness Of The Ground: Error ≤ 10mm

Car Wash Size: 5.2m × 2.15m × 2.1m (wheelbase ≤3.2m)

Basic Infomation

Place of Origin: Guangzhou

Brand Name: WINTAI

Model Number: S9

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS

Product Description

Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS 0

QUOTATION OF Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS
			Function config- uration	Hot-dip galvanized external frame	Full Package
Name	14-Brush Flatbed Tunnel-type Car Wash Machine			Chassis Flushing	One set
Model	S9			High pressure preflushing	A set of 140-kilogram pressure motor pumps
Techni- cal pa- rameter	Device size	Length × width × height = 25×4×3.5m		High bubble Foam	One set
	Device size	The total length of the equipment is 25 meters, including the wheel alignment device.		Colorful Waterfall	One set
	Installation Area	25000mm long × 4000mm wide		Wax spray	One set
	Power requirem-ent	Voltage: AC380V50Hz (5-wire system)		Air drying system	6 Fans (4 top fans and 2 side fans)
	Water requireme-nts	Pipe diameter DN25, flow rate ≥200 L/min		Entry guide platform	One set
	Air source requi-rement	Pressure 0.75～0.9Mpa/ Flow rate ≥ 0.1m3 /min		Frequency conversion speed control	Special thickened bearing, large ball drive chain
	Flatness of the ground	Error ≤ 10mm	Brush	Small vertical brush	4pcs
	Vehicle Washable model	Car, Jeep, van with less than 10 seats		Large vertical Brush	4pcs
	Car wash size	5.2m × 2.15m × 2.1m (wheelbase ≤3.2m)		Top brush	1pc
				Hub brush	2pcs
				Polishing brush	3pcs
	Car wash time	50-60 vehicles per hour
			Key Components	Programmable Controller (PLC)	Mitsubishi of Japan
Product Advantages: 1. High-pressure rinsing system: Before the formal car wash, the mobile spray nozzles at the top and sides of the washing equipment cover the entire vehicle surface and wait for a minute or two.After soaking for a few minutes, most of the sand and dust can detach from the car paint, preventing the risk of scratches on the paint surface when applying car wash solution. 2. Car wash equipment liquid supply system The liquid supply system adopts a CNC metering pump, featuring a low-level alarm function. The car wash machine consumes approximately 20ml per vehicle, with chemical agent replenishment every 200-300 vehicles. (20L) 3. 360-degree no-dead-corner cleaning: Equipped with one top brush and four large vertical brushes on both sides, along with four small vertical brushes, 2 horizontal round wheel brushes, it thoroughly cleans the vehicle's oil stains and dead corners. The entire body is sprayed with car wash foam, achieving a 360-degree full-wrap cleaning. The dense bristles can reach every nook and cranny. The imported specialized car wash foam brush is soft, non-sticking, non-abrasive, and wear-resistant. 4. Drying system and Polish brush The system features 6pcs of 5.5kW motor fans that nearly completely dry vehicles, supplemented by three polishing brushes for an effective body finish.				Colorful touch screen	FANYI FE6100M-PRE
				Frequency Transformer	Mitsubishi of Japan
				Contactor	Schneider LC1-D series in France
				Motor protector machine	Schneider LR-D series in France
				Switching Power Supply	Schneider LRS-150-24 from France
				Auxiliary relay	Schneider RX2M2L from France
				Photoelectric sensor machine	Banner, USA
				Proximity transducer	German company P+F
				Threephase asynchronous motor	Siti Italy
				Waterproof motor	Siti Italy
				Worm speed reducer	Siti Italy
				Pneumatic pressure regulating valve	Taiwan AirTAC
				Air cylinder	Taiwan AirTAC
				High pressure water pump	HP Italy
			Liquid Consumption Per Vehicle	Water consumption per vehilce	120 liters per vehicle
				Electricity consumption per vehicle	1.1 kWh per vehicle
				Shampoo consumption	20-40ml per vehicle
				Water-wax consumption per vehicle	30ml per vehicle

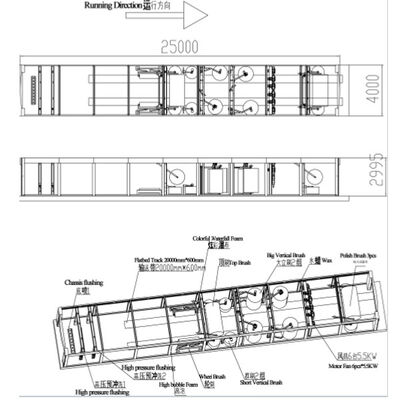

Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS 1

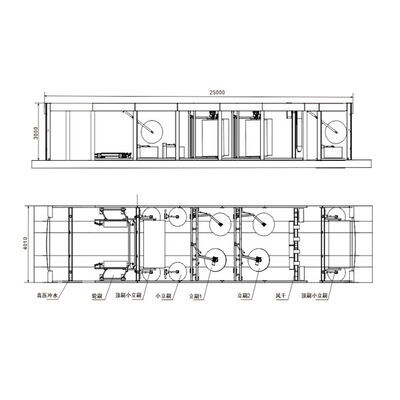

Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS 2

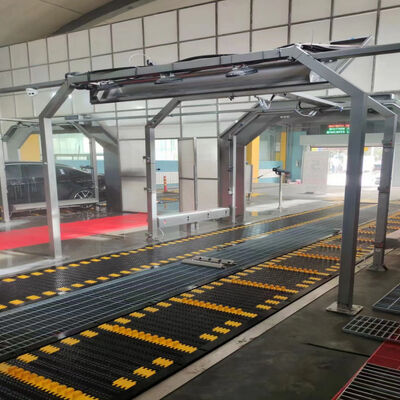

Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS 3
