Our fully automatic computer car washing equipment is designed according to European and American standards (CE
certification), with Mitsubishi (PLC) as the control center throughout the process. It is mainly used for all-round high pressure washing, precise brushing, air drying, waxing, and coating of different types of small vehicles such as sedans,
off-road vehicles, and SUVs. The operation interface adopts advanced touch screen control system, fully displayed in
Chinese, capable of human-machine dialogue, with automatic and manual control functions, and simple operation. The
computer operating system can automatically adjust the optimal wiping distance between the bristles and the body cleaning
surface according to different vehicle models (length, width, and height), ensuring the pressure and cleaning effect of
the bristles on the vehicle, and achieving fully inclusive cleaning of the vehicle without leaving any dead corners. The
device also has a fault automatic detection and alarm system, a vehicle appearance automatic recognition system, a fault
troubleshooting method display system, a car wash counting system, and so on. Multiple protection measures are adopted in
the design, with high automation and strong reliability! The main electronic components are all from internationally
renowned brands, with stable performance and low failure rates. Multiple safety protections are adopted in design and
process to ensure the long-term normal operation of the equipment. Its functions have fully reached the international
advanced level.

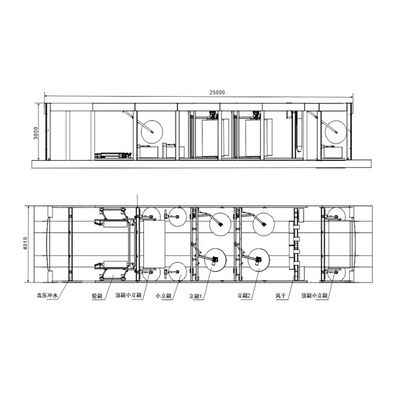

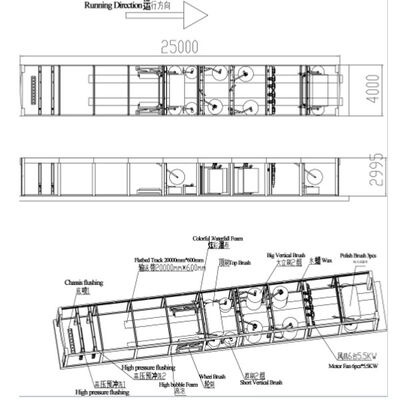

| Flatbed Track Tunnel-Type Car Wash Machine 14 BRUSHES 25 METERS |
| |
|
Function
config-
uration |
Hot-dip galvanized external frame |
Full Package |
| Name |
14-Brush Flatbed Tunnel-type Car Wash Machine |
Chassis Flushing |
One set |
| Model |
S9 |
High pressure preflushing |
A set of 140-kilogram pressure motor pumps |
Techni-
cal pa-
rameter |
Device size |
Length × width × height = 25×4×3.5m |
High bubble Foam |
One set |
| The total length of the equipment is 25 meters, including the wheel alignment device. |
Colorful Waterfall |
One set |
| Installation Area |
25000mm long × 4000mm wide |
Wax spray |
One set |
| Power requirem-ent |
Voltage: AC380V50Hz (5-wire system) |
Air drying system |
6 Fans (4 top fans and 2 side fans) |
| Water requireme-nts |
Pipe diameter DN25, flow rate ≥200 L/min |
Entry guide platform |
One set |
| Air source requi-rement |
Pressure 0.75～0.9Mpa/ Flow rate ≥ 0.1m3 /min |
Frequency conversion speed control |
Special thickened bearing, large ball drive chain |
| Flatness of the ground |
Error ≤ 10mm |
Brush |
Small vertical brush |
4pcs |
| Vehicle Washable model |
Car, Jeep, van with less than 10 seats |
Large vertical Brush |
4pcs |
| Car wash size |
5.2m × 2.15m × 2.1m (wheelbase ≤3.2m) |
Top brush |
1pc |
| |
|
|
|
|
|
Hub brush |
2pcs |
| |
|
|
|
|
|
Polishing brush |
3pcs |
| Car wash time |
50-60 vehicles per hour |
|
| |
Key
Components |
Programmable Controller (PLC) |
Mitsubishi of Japan |
| |
Colorful touch screen |
FANYI FE6100M-PRE |
| Frequency Transformer |
Mitsubishi of Japan |
| Contactor |
Schneider LC1-D series in France |
| Motor protector machine |
Schneider LR-D series in France |
Switching Power
Supply |
Schneider LRS-150-24 from France |
| Auxiliary relay |
Schneider RX2M2L from France |
| Photoelectric sensor machine |
Banner, USA |
| Proximity transducer |
German company P+F |
| Threephase asynchronous motor |
Siti Italy |
| Waterproof motor |
Siti Italy |
| Worm speed reducer |
Siti Italy |
| Pneumatic pressure regulating valve |
Taiwan AirTAC |
| Air cylinder |
Taiwan AirTAC |
| |
High pressure water
pump |
HP Italy |
| Liquid Consumption Per Vehicle |
Water consumption
per vehilce |
120 liters per vehicle |
| Electricity consumption per vehicle |
1.1 kWh per vehicle |
| Shampoo consumption |
20-40ml per vehicle |
| Water-wax consumption per vehicle |
30ml per vehicle |
