Features

Specifications

Device Size: 25×4×3.5m

Power Requirem-ent: AC380V50Hz (5-wire System)

Car Wash Size: 5.2m × 2.15m × 2.1m (wheelbase ≤3.2m)

Water Consumption Per Vehilce: 120 Liters Per Vehicle

Electricity Consumption Per Vehicle: 1.1 KWh Per Vehicle

Shampoo Consumption: 20-40ml Per Vehicle

Water-wax Consumption Per Vehicle: 30ml Per Vehicle

Highlight:

flatbed cable chain car wash machine

automated car wash equipment with brushes

auto car wash machine with dryers

Basic Infomation

Place of Origin: Guangzhou

Brand Name: WINTAI

Model Number: S9

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 sets/month

Gallery

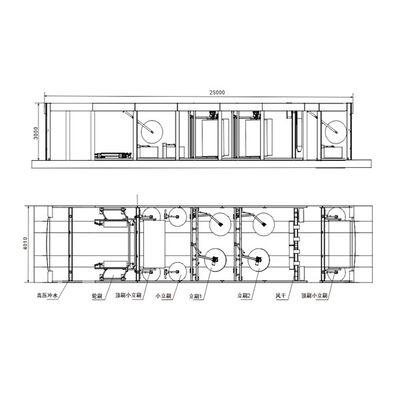

Flatbed cable chain Automated Car Wash Equipment with 14 brushes Auto Car Wash Machine with 6 dyers

Product Description

Flatbed Cable Chain Automated Car Wash Equipment with 14 Brushes and 6 Dryers

Our fully automatic car wash machine delivers exceptional efficiency with the capability to clean four vehicles simultaneously, maximizing throughput and operational productivity.

Key Product Advantages

High-Pressure Rinsing System: Mobile spray nozzles at the top and sides provide comprehensive pre-rinse coverage, allowing dirt and sand to detach from vehicle surfaces before the main wash cycle, significantly reducing paint scratch risks.
Precision Liquid Supply System: Equipped with CNC metering pumps featuring low-level alarm functionality. Chemical consumption is optimized at approximately 20ml per vehicle, with replenishment required every 200-300 vehicles (20L capacity).
360-Degree Comprehensive Cleaning: Advanced brush configuration includes one top brush, four large vertical brushes, four small vertical brushes, two horizontal wheel brushes, and three polishing brushes. Imported specialized foam brushes are soft, non-sticking, non-abrasive, and wear-resistant for thorough cleaning of all vehicle surfaces and hard-to-reach areas.

Technical Specifications

14-Brush Flatbed Tunnel-Type Car Wash Machine - Model S9
Configuration	Hot-dip galvanized external frame, Full Package
Technical Parameters	Device Size: 25×4×3.5m (L×W×H) Total Equipment Length: 25 meters (includes wheel alignment device) Installation Area: 25000mm long × 4000mm wide Car Wash Size: 5.2m × 2.15m × 2.1m (wheelbase ≤3.2m) Wash Capacity: 50-60 vehicles per hour
Power Requirements	Voltage: AC380V50Hz (5-wire system)
Water Requirements	Pipe diameter DN25, flow rate ≥200 L/min
Air Source Requirement	Pressure 0.75～0.9Mpa / Flow rate ≥ 0.1m³/min
Ground Flatness	Error ≤ 10mm
Vehicle Compatibility	Cars, Jeeps, vans with less than 10 seats

System Components

Component	Specification
Chassis Flushing	One set
High Pressure Preflushing	One set of 140-kilogram pressure motor pumps
High Bubble Foam	One set
Colorful Waterfall	One set
Wax Spray	One set
Air Drying System	6 Fans (4 top fans and 2 side fans)
Entry Guide Platform	One set
Frequency Conversion Speed Control	Special thickened bearing, large ball drive chain
Brush Configuration	Small Vertical Brush: 4pcs Large Vertical Brush: 4pcs Top Brush: 1pc Hub Brush: 2pcs Polishing Brush: 3pcs

Operational Excellence: This automated car wash system combines advanced cleaning technology with robust construction, delivering superior cleaning performance while maintaining operational efficiency and vehicle safety.
